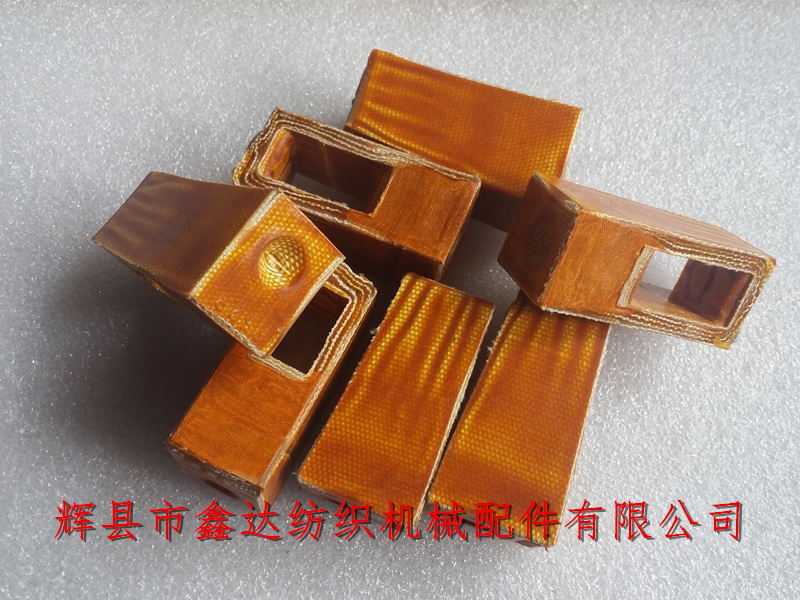

Huixian Xinda Textile Machinery Parts Co., Ltd. provides P62R Loom Picker For Auto Swapping Loom accessories. The P62 leather knot is an important component of the shuttle throw (impact shuttle) of the changing weaving machine. The parameters of this P62 leather knot are: overall length is 65mm, width is 28mm, front height is 33mm, rear height is 28.5mm, and the size of the middle hole: lower inner length is 24mm, inner width is 15mm; upper inner length is 30mm, inner width is 15mm.

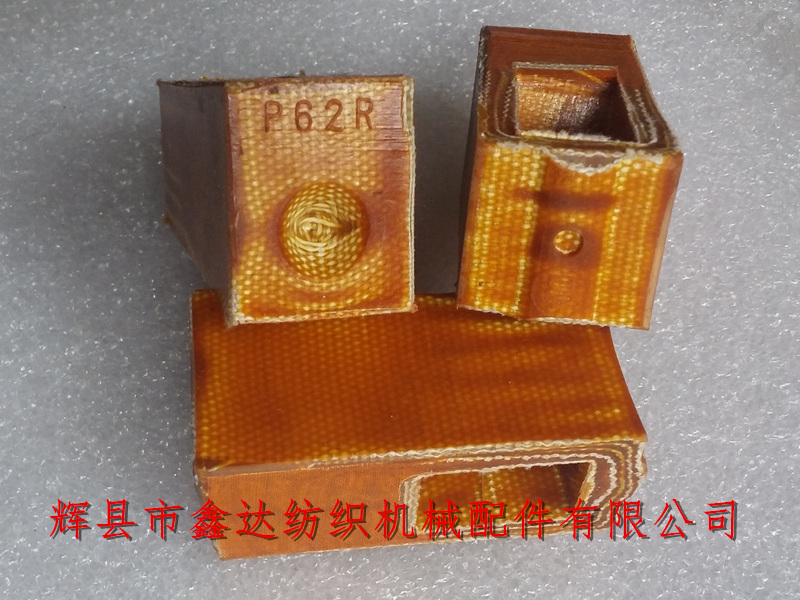

The overall shape of the P62R leather knot is trapezoidal, with two sides forming a right angle with the bottom plane. When in use, the matching shuttle board is inserted into the middle hole of this leather knot; The material of P62 leather knots is rubber+nylon fabric. Textile leather and textile R-pieces are widely used on shuttle looms and play an important role in the structural operation of the loom.
Textile equipment P62 is influenced by different molds and comes in various sizes. Each automatic rewinding loom uses 2 P62 leather knots (regardless of left or right hand).

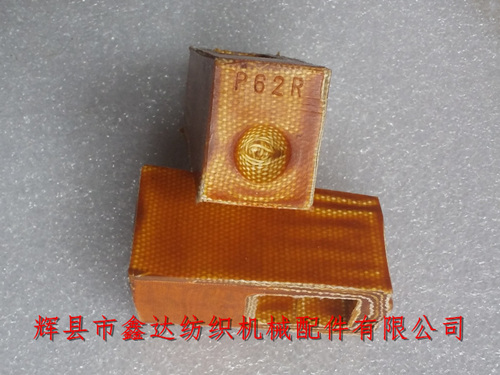

The weight of a single P62 is about 50-51 grams, and the weight of this P62 in the picture is 45 grams (the body shape is smaller than the described size, and the picture is for reference only). The diameter of the shuttle point depression is 14mm, and the distance between the point and the upper plane is 12mm.
The minimum order quantity for P62 leather knots is 1000 pieces, and the delivery time is approximately 20 days; If you need to purchase P62 leather knots, automatic winding loom accessories, P62 shuttle knots, P62R loom accessories, and other weaving machine leather products, please contact Mr. Yang from our company.
