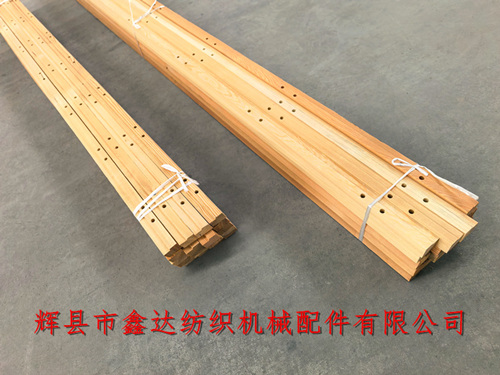

Huixian Xinda Textile Machinery Parts Co., Ltd. provides 1515 Fly Back Wood For Loom Loose Reed 3220, 1515 reed clamp wood 3220-56 inch/75 inch weaving machine wooden parts. The reed clamp wood strip is installed under the steel reed of the weaving machine and fixed on the K24 * K25 side support foot of the reed clamp shaft or the middle support foot of the 1515W-3113 * G263-7509T reed clamp shaft. The material is larch, reed clamp wood, weaving machine wooden strips, textile wooden parts, wooden accessories, and steel reed strips.

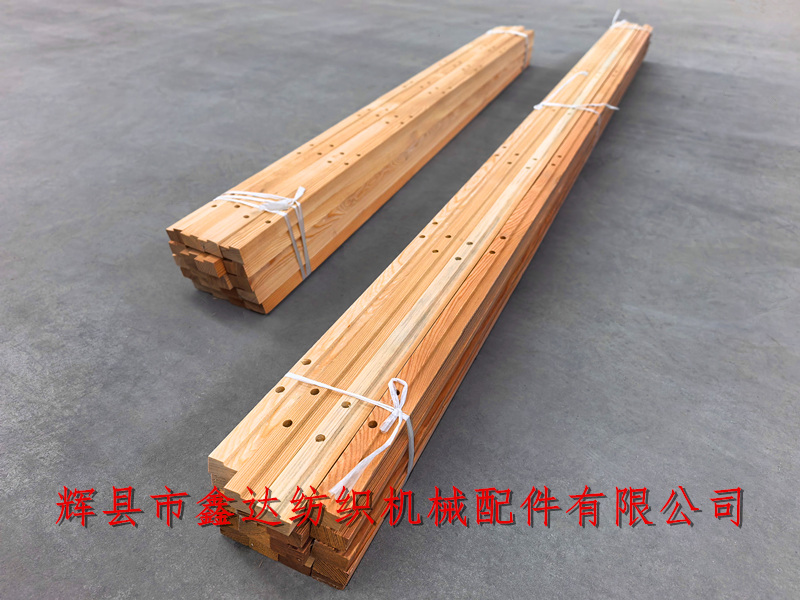

The above picture shows a comparison between 56 inch and 75 inch reed clamps. The length of the reed clamp (3220-56 ") used on the 56 inch (1350mm) loom is 1394mm, while the length of the reed clamp (3220-75") used on the 75 inch (1800mm) loom is 1873mm.

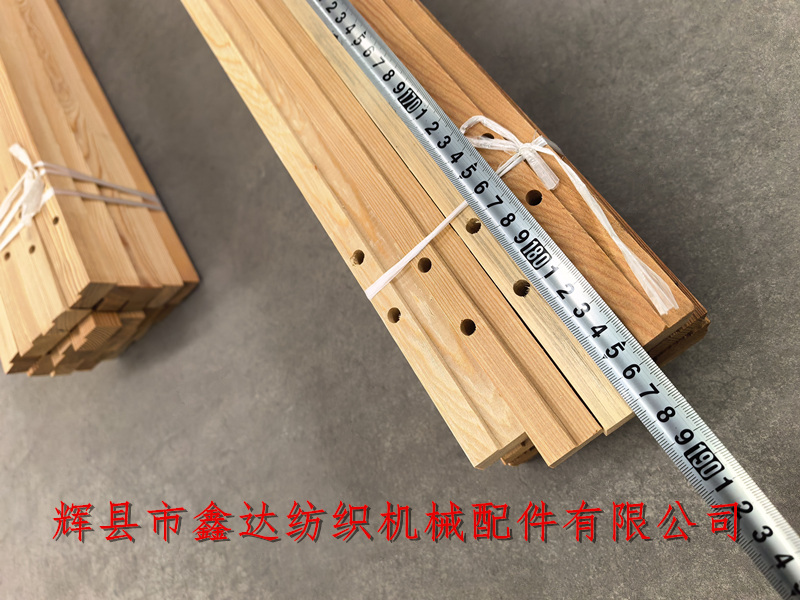

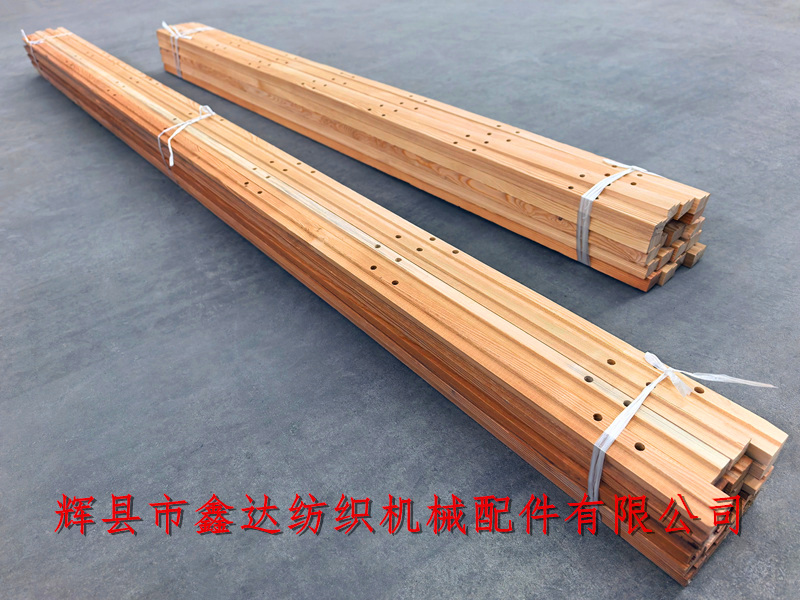

The above picture shows the actual measured length of a 75 inch reed clamp. The length of the clamp for a 63 inch loom is 1568mm, and the part number used for clamp sizes such as -56 inches, 63 inches, 72 inches, and 75 inches on 1515 or GA615 looms is 3220.

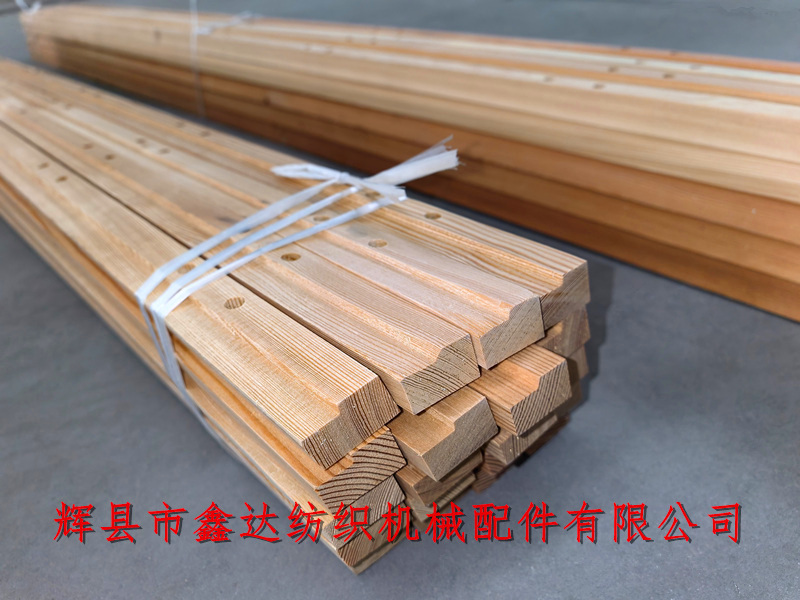

The cross-section of the reed clamp is a parallel hexagon, with an inclination angle the same as that of the reed frame of the loom. During installation or use, the reed clamp is not allowed to break, and its thickness is greater than 20mm. The gap between the lower plane and the reed frame 3222 is 1.6mm.1515 Fly Back Wood For Loom Loose Reed 3220.

The circular holes on the reed clamp are fixed holes, and the corresponding quantity will be adjusted according to the size of the loom door; If you need to purchase products such as reed clamp wood Q11,Fly Back Wood For Loose Reed, weaving machine wood strips 3220, textile wood parts, textile wood accessories, steel reed strips, and other woven machine wood parts, you can contact Mr. Yang from our company for consultation. We sincerely welcome everyone's visit.
