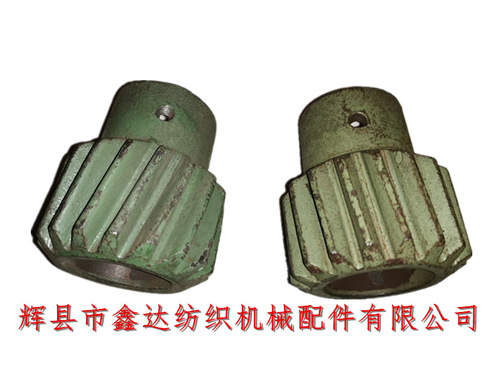

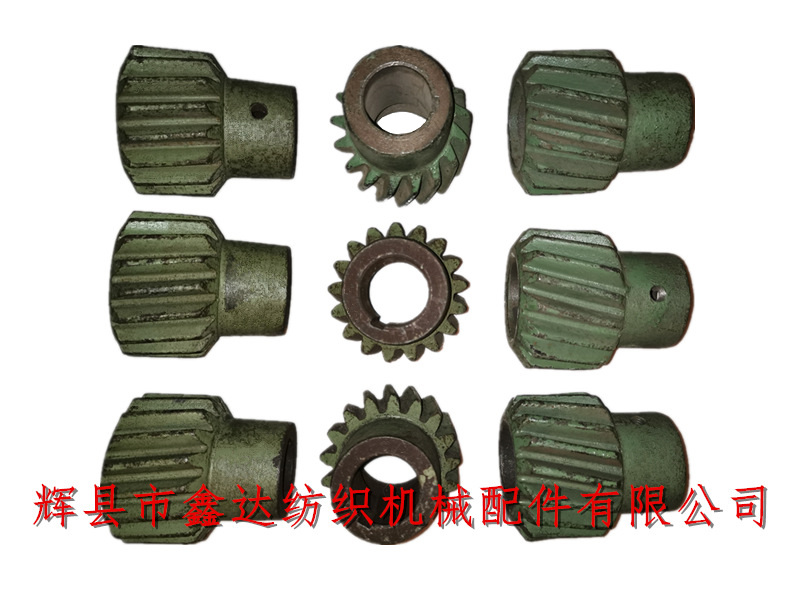

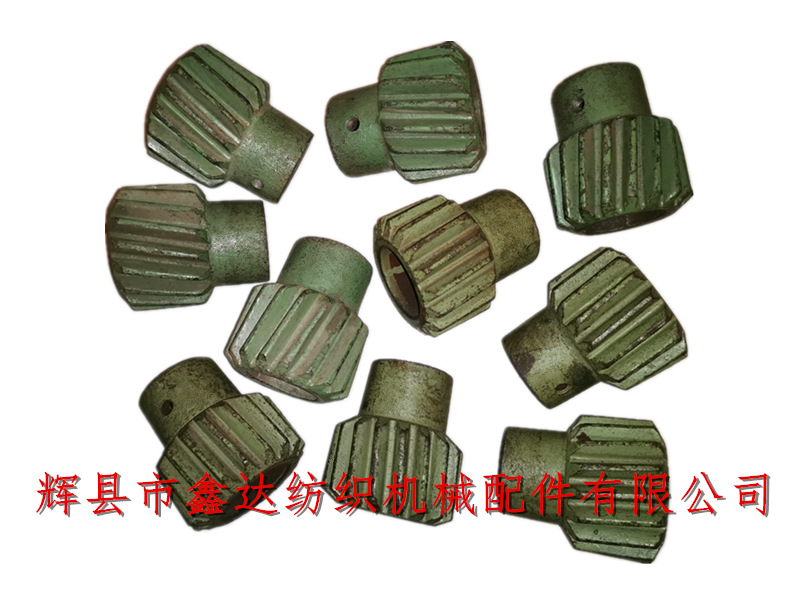

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides all kinds of shuttle textile spare parts. The 44 inch loom accessories (B5 let off worm wheel) B5 has 17 teeth, a modulus of 3.63 and an outer diameter of 69 mm. It is installed on the B13 let off shaft. The products belong to the inner let off accessories of the loom, which are divided into left-hand (left-hand) and right-hand (right-hand), A clearance of 0.5-0.8mm is required when the let off worm gear engages with the worm.

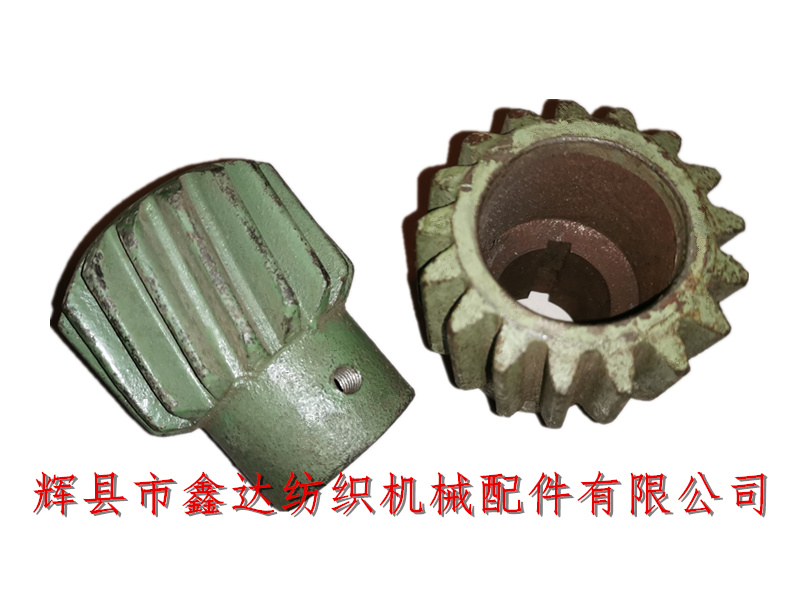

The height of B5 (let off worm gear) of 1511 textile machinery accessories is 75mm, the outer diameter of the fastening screw position is 46mm, the inner hole has 6mm key T-groove, its diameter is 28mm, its material is gray pig iron HT15-33, and the weight of a single textile worm gear is about 0.72kg.
The pig iron fittings in textile machine parts generally do not have strict requirements for tolerance fit. The overall shape of B5 let off worm gear shows a certain taper, which is installed cross with B19 let off worm at an angle of 90 degrees.
The quantity of each textile machine (1511 inner let off loom) is: 1. Since the loom has a left mobile phone and a right mobile phone, it is necessary to carefully check the rotation direction of the worm gear during installation.

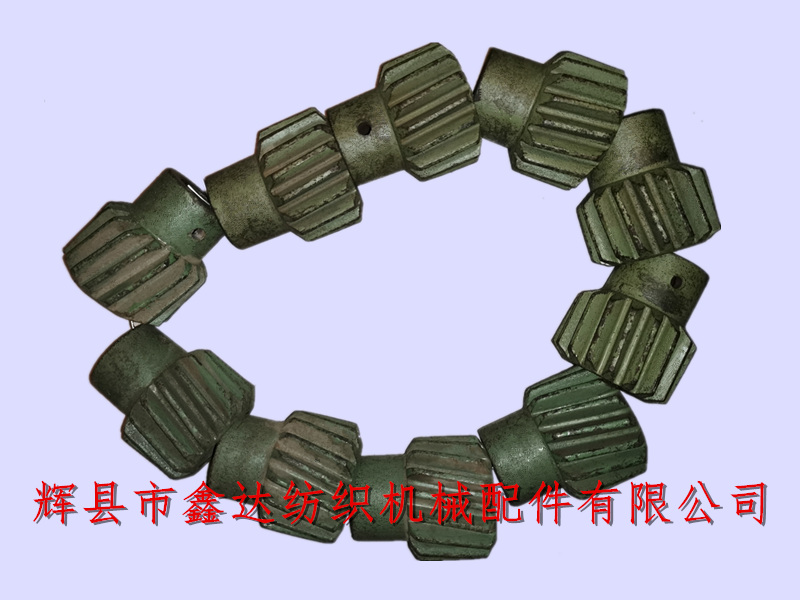

The packing method of B5 let off worm gear is shown in the figure above: 10 pieces per string (5 left and 5 right), with an overall weight of about 7.3kg. If textile enterprises and groups need to purchase textile machinery accessories 44 loom (B5 let off worm gear), please contact Mr. Yang of our company!
