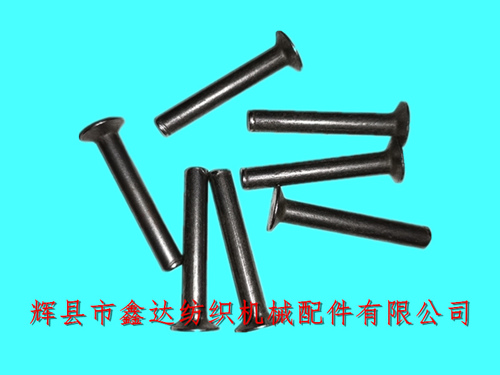

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides textile hardware accessories of loom picker rivets 5x33mm all the year round. The main body diameter of the picker rivet is 5mm, the tail diameter is 10mm, the total length is 33mm, and the length of the solid rivet rod is 31mm. The product is forged from cold drawn A3 material, which is mainly used for 1511 and 1515 textile leather knots. It is a riveting accessory of the loom picker main body and the hook tongue.
Textile machine hardware accessories include all kinds of stamping parts, springs, machining accessories and hardware screws. The number of leather knot rivets used on the shuttle hook is 2/piece. After passing through the main body of the leather knot, it is pressed and riveted with M5 gaskets. The use of solid rivets can improve the riveting firmness of the picker, thereby extending the service life.
The rivets used in the leather ring of the loom are short and similar in shape to the leather knot rivets. It mainly rivets the leather pillows at both ends of the textile buffer ring. Because there are dozens of different specifications and models of textile leather knot products, the length of the rivets used will change accordingly, and the length selection is based on the width of the leather knot itself.
The difference between 1511 type leather knot and 1515 type Loom picker is in width and height. The width and height of 1511 type picker are 30*31mm or 31*32mm, and the width and height of 1515 type leather knot are 31*34mm (the height is increased by 2mm compared with 1511), so the leather knot rivets they use can be borrowed from each other.
The weight of the leather knot rivet of the loom is about 0.0052 kg / piece, and the weight of the leather pillow rivet used for the leather ring is about 1/3 of it. Although the design of the accessories of the old shuttle loom has been improved, most products still use the design of the early last century. The shuttle parts of the loom refer to the mechanical parts used for the shuttle (weft insertion) device.
