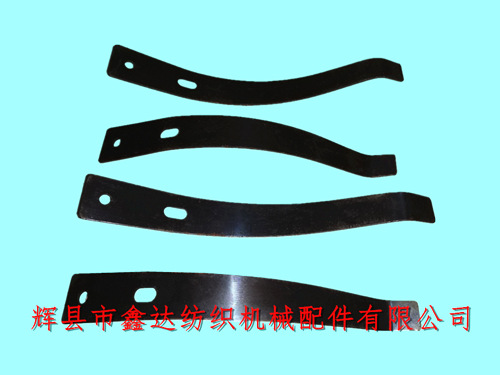

Huixian Xinda Textile machinery accessories provides K69 textile spring accessories for raising the back plate spring of loom. Raises Back Plate, Loom Spare Part, Loom Spring,Textile Spring, Loom Spare Part Raises Back Plate Spring K69, The total length of K69 leaf spring of loom is 184mm, the tail width is 27mm, the diameter of round hole is 6.6mm, the size of chute is 7mm * 14mm, the front width is 16mm, the overall thickness of spring sheet is 1.3mm, and each loom uses one. It is installed behind the raising back plate to provide reset pressure for K94 shuttle iron.
The material of the back plate spring K69 raised by the loom is 60Si2MnA, which is a stamping accessory of textile hardware. Many leaf springs used on the loom belong to one of the compression springs, and the common thickness range is 1.3-2mm.
Textile hardware spring-k69 differs from K52 shuttle box spring: K69 spring is long and there is no bevel at the tail, while K52 shuttle box spring is short and there is bevel cutting at the tail. They are packaged with 40 pieces per bundle.
The shuttle box of loom mostly uses leaf spring, and the shuttle shed uses torsion spring. K69 raises the back plate spring, which is suitable for old-fashioned looms of various models and specifications such as 1511, 1515 and GA615, and is not limited by the door width (width) of the machine.
If all weaving manufacturers need to purchase loom spring, K69, textile spring accessories, lifting back plate spring and other products of textile machine hardware accessories, please contact Mr. Yang of Xinda Textile machinery accessories company for details. We can also provide specific details, parameters and dimensions. Welcome to purchase and negotiate!
