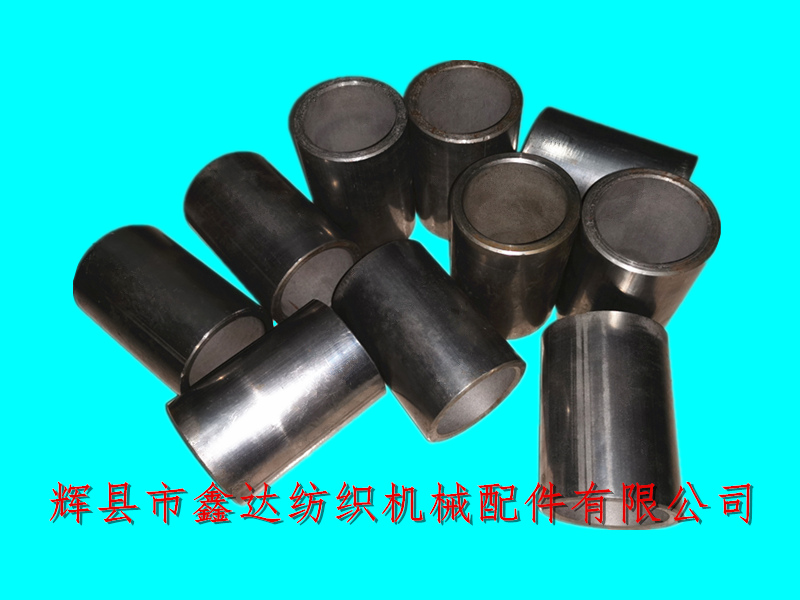

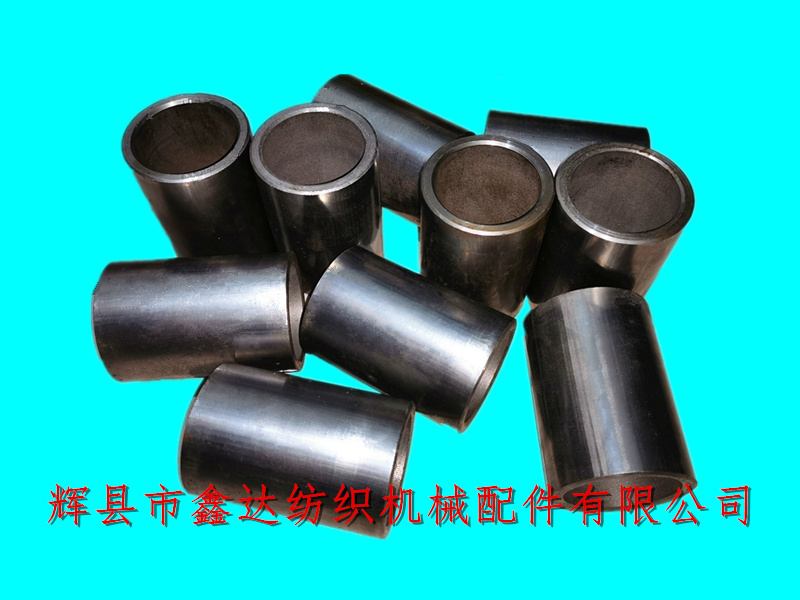

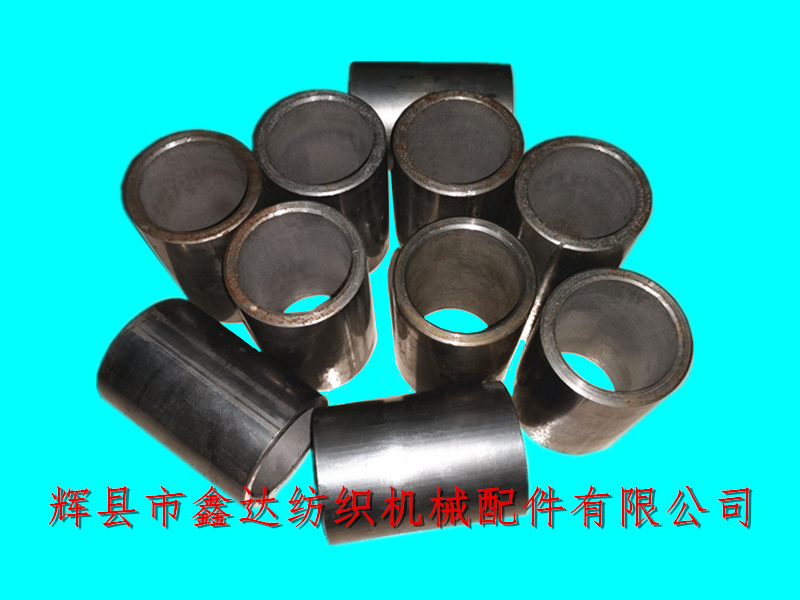

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides P11 loom accessories all year round, including loom step sleeve and textile powder metallurgy sleeve. The textile bushing P11 is installed on the wallboard of the old-fashioned bolt (insert plate) loom, fixed with cross stitch wire, and the tread shaft sleeve E1 is installed inside P11. The size of loom step sleeve P11: the total length is 93mm, the outer diameter is 65mm, the inner hole diameter is 52mm, and the number of each loom is 2 pcs.
Bolt type looms are commonly used in 1511 narrow width looms, while 1511 refers to single beam looms, which are divided into spherical type and bolt type according to the delivery time. The earlier is the bolt type (generally in the 1970s), and the spherical type is produced after late improvement (after the 1980s); According to the door width, it can be divided into 1511-42 inches, 1511-44 inches, 1511-56 inches (metric loom), 1511-52 inches (British loom), 1511-54 inches (British loom).
Bolt type looms are commonly used in 1511 narrow width looms, while 1511 refers to single beam looms, which are divided into spherical type and bolt type according to the delivery time. The earlier is the bolt type (generally in the 1970s), and the spherical type is produced after late improvement (after the 1980s); According to the door width, it can be divided into 1511-42 inches, 1511-44 inches, 1511-56 inches (metric loom), 1511-52 inches (British loom), 1511-54 inches (British loom).

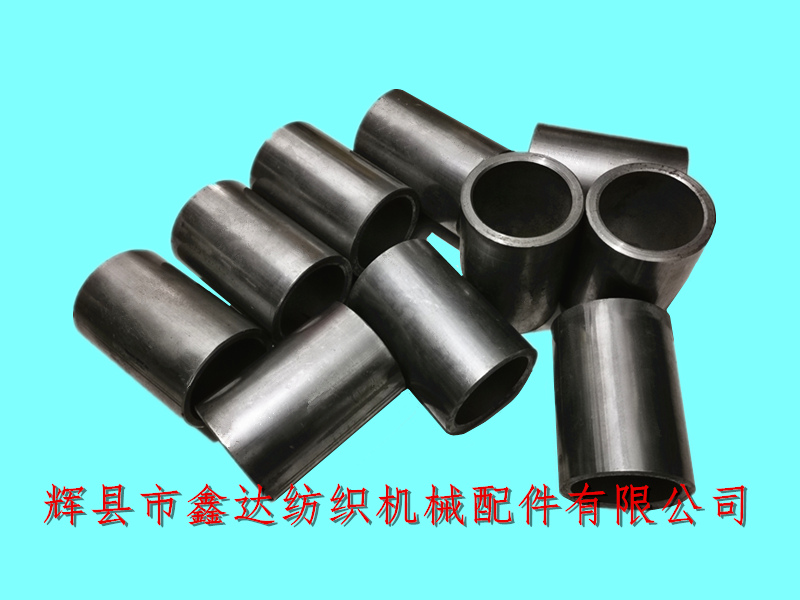

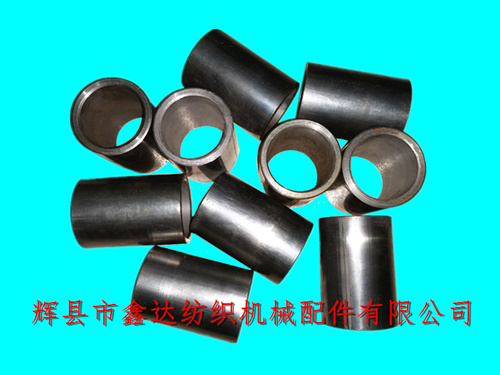

The single weight of textile bushing and loom sleeve P11 is about 0.58 kg. Textile powder metallurgy sleeve is also known as oil-bearing bushing, because their surface will be smoother after smooth friction in the process of use. The oil film formed between the friction contact surfaces is related to the iron-based raw material it uses. P11 is also called step sleeve because the pedal shaft sleeve E1 is step sleeve.
If you need to buy P11 loom accessories, loom buss sleeves, textile powder metallurgy sets, shuttle loom accessories, sleeves, Buss sets, powder metallurgy sets, textile bushings and other products, please contact Mr. Yang of our company for details!
