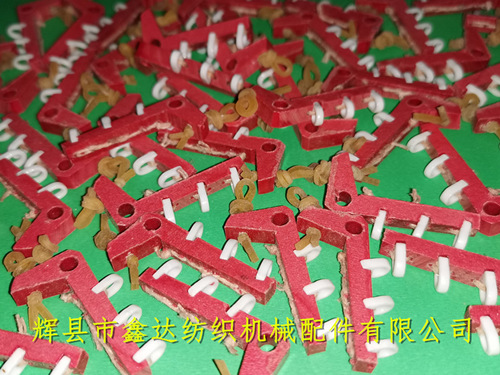

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides Steel Paper Bell For Glass Fiber Loom, glass fiber flexible, red steel paper flexible bell, and textile equipment accessories for shuttle looms. Chinese glass fiber shuttles generally use red steel paper flexible bell, and nylon shuttles use stainless steel flexible bell (large body). The flexible bell belongs to textile equipment accessories and is applied to the shuttle of glass fiber looms. The flexible body is processed from red steel paper, with rubber bands at the tail and three porcelain rings arranged at the front. The total length of the movable bell is 34mm, the tail width is 16.5mm, the diameter of the bolt hole of the counter pin is 3.7mm, the thickness is 5mm, and the spacing between adjacent porcelain rings is 7mm.
Red steel paper can be divided into various specifications. They can be divided into long, medium and short according to the length. According to the number of porcelain rings, they can be divided into single porcelain ring, double porcelain ring and three porcelain rings. According to the size of the shuttle, the flexible tail can also be divided into long and short. The narrow shuttle body uses the movable bell with the short tail, and the wide shuttle body uses the long tail.
The flexible packaging method of the accessories of the old shuttle loom: 100 pieces / string. As the flexible body adopts red steel paper (a mixture of cotton and pulp), it has good strength and wear resistance. The rubber band at the tail is fixed on the side of the shuttle, and the porcelain ring is quickly pulled forward through the weft. When the shuttle stops, it can be flexibly reset by relying on the rubber band.
If glass fiber manufacturers need to purchase shuttle textile equipment, flexible, flexible bell, glass fiber flexible bell, Steel Paper Flexible Bell For Glass Fiber Loom,loom accessories and other products, please contact Mr. Yang of Xinda Textile accessories for consultation. Special red steel paper (flexible bell) can be customized according to customers. The minimum order quantity is 10000pcs and the delivery time is about 35 days.
