Henan Xinda Textile Accessories Co., Ltd. specializes in providing shuttle loom code meter,length meter and meter meter meter. The meter is installed on the spindle head of quill roller of 1511m, 1515 and GA615 shuttle looms and GA74 series rapier looms (the inner hole needs to be equipped with accessories). The diameter of the inner hole of the code meter is 31mm, and there is a cone-shaped top thread inside, which is used to rotate with the quill roller of the loom. According to the ratio of the outer diameter of the quill roller, the machine depends on it Mechanical transmission shows the meter of weaving.

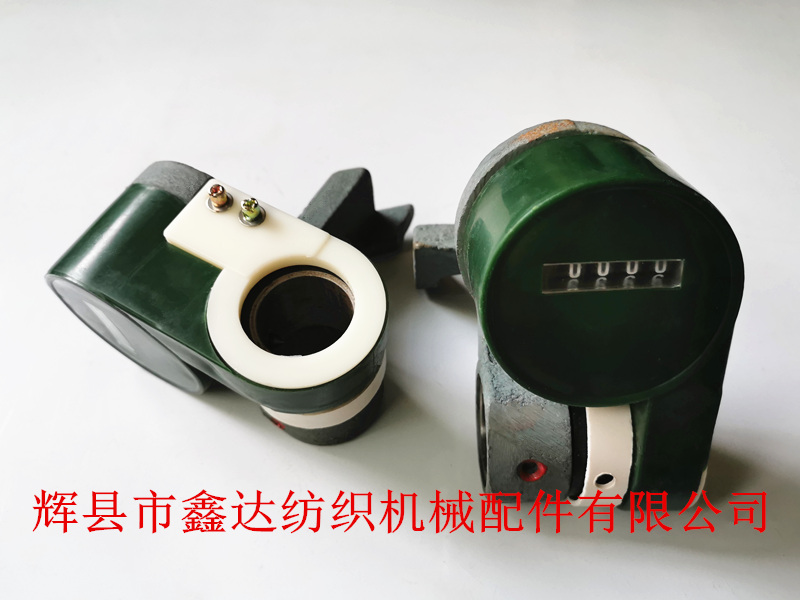

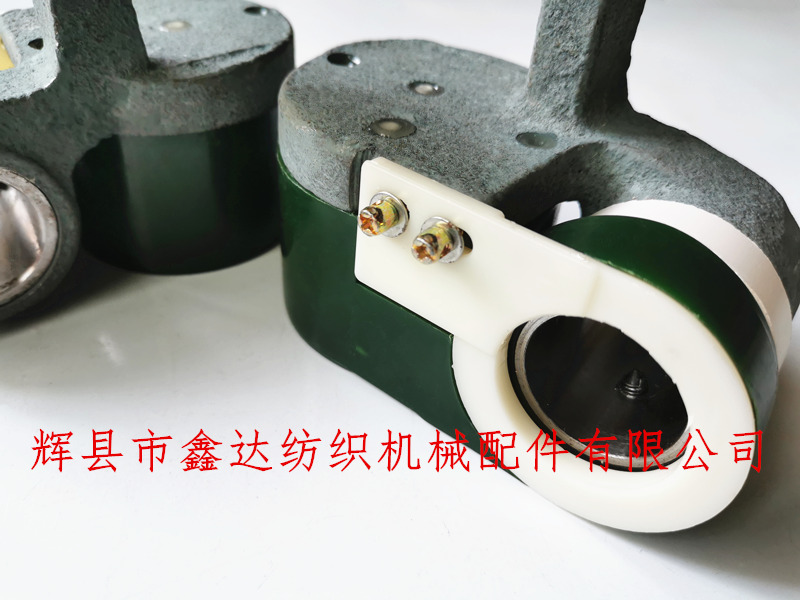

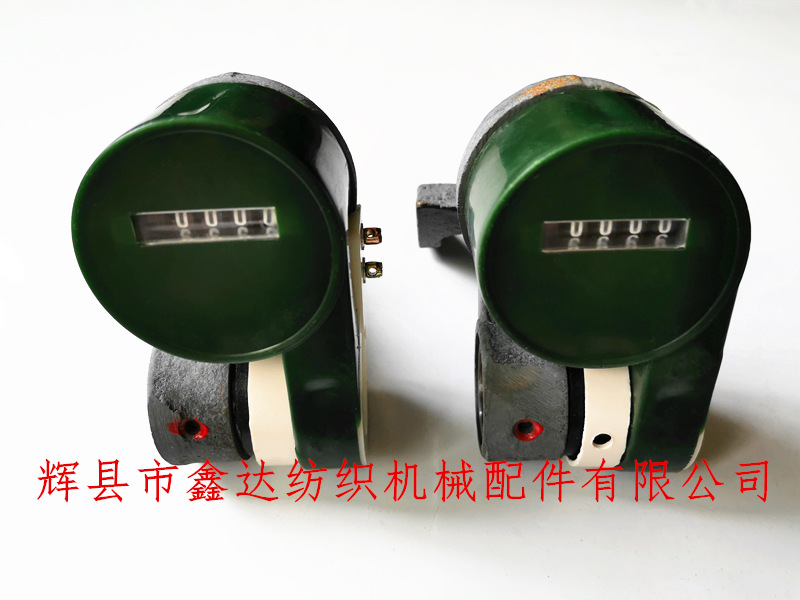

The loom code meter adopts four digit display and counting, the meter length is 9999 meters, the code meter shell adopts gray iron sand turning processing, the internal structure fittings match precisely, and the shaft hole length is 65mm.

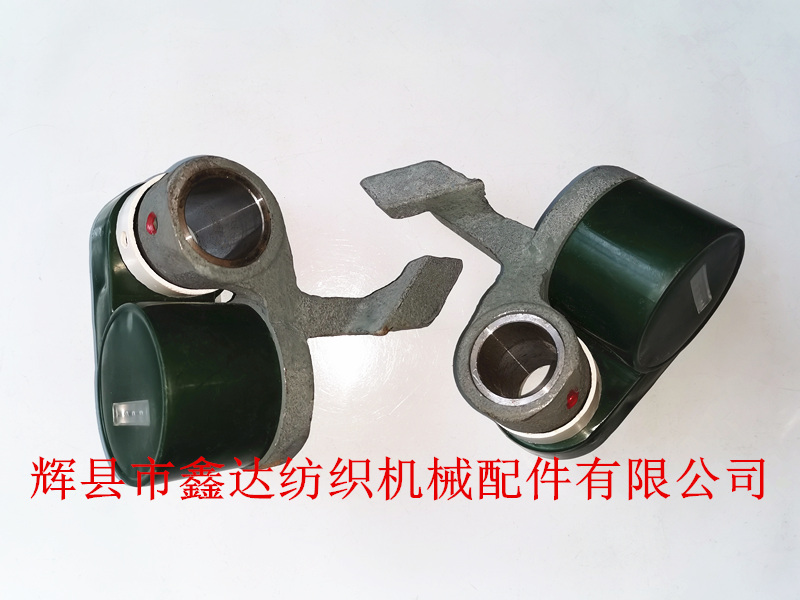

The red paint part is the oiling hole of the meter counter, and the plastic shell part is made of PVC material with good durability. The white PVC sleeve is used to prevent the inner top wire from falling off and losing. The code meter is 123mm long and 70mm wide.
As the weaving machine equipment is divided into left-hand car and right-hand car, so the length counter products are also divided into left-hand and right-hand, with a starting order of 20 pieces, each weighing 1kg.

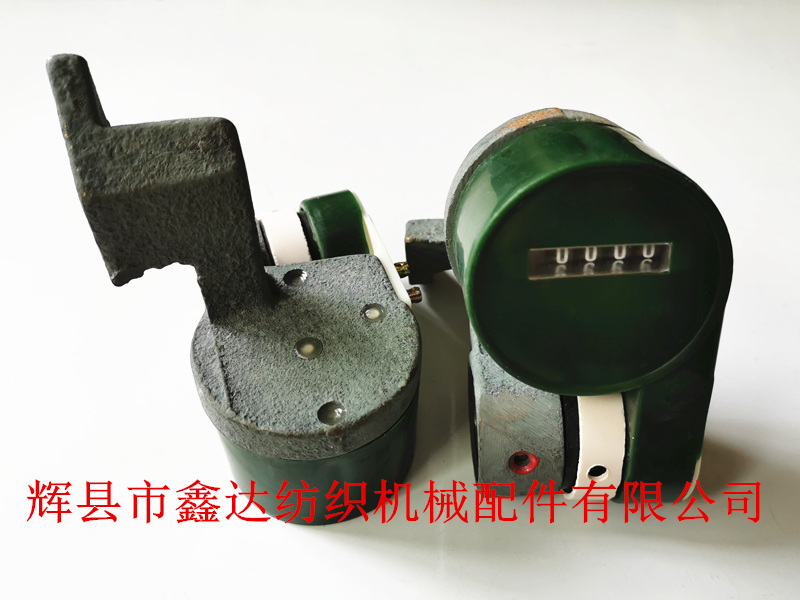

The back of the loom code table is fully sealed to prevent the flying cotton yarn hairiness in the weaving workshop from entering the code table and affecting the normal use of the product. The installation of the loom code table is simple and the service life is long, which is convenient for the production statistics of each single shift of each stopper in the weaving workshop.
Weaving machine code table, length counter, meter counter, textile length counter device - produced by Huixian Xinda Textile Machinery Accessories Co., Ltd., welcome all over the weaving enterprises to inquire!
