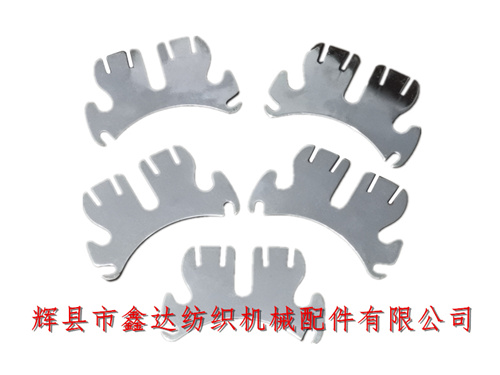

Xinda Textile Machinery Accessories Co., Ltd. provides O32 Middle Frame For Textile Warp Stop Box, hardware accessories of full-automatic loom, O32 warp stop frame middle partition and textile machine warp stop frame middle partition, which are mainly used for yarn splitting at the back of automatic weaving machine. Shape parameters of O32 menopause frame spacer: length 12.5cm, width 78mm, thickness 1.4mm, A3 material, surface chrome plating treatment.
The number of textile hardware accessories O32 used in each full-automatic loom is related to its door width. Generally, one is used for 1511 type, and two or three are used for 1515 type, which can be increased according to needs.
Textile accessory O32 plays an important role in ensuring the smooth operation of warp channel. In addition, it can also divide the warp on the weaving machine and assist in controlling the direction of warp. Chrome plating on the surface can avoid accidental tension and friction.
The warp self-stop devices of 1515, 1511, GA611, GA615 and other shuttle looms are widely used, and the use efficiency of different fabrics is different.Warp Stop Box,Middle Frame,Textile Hardware, The four grooves on the upper part of the spacer in the O32 warp stop frame are used to fix the warp stop strip of the loom, and the deep groove in the middle is to place the round bar.
