The textile machine accessory C33 Lever For Let-off Motion is used in the transmission structure of the inner let off loom. The material of the textile connecting rod is A3 cold drawn. The cold drawn material with a diameter of 8mm is formed after bending for many times. The linear length of the let off rod is 70cm. The upper part of the let-off lever is penetrated into the C8 tension sector rod mandrel of 1511 textile machine, and the lower part is hooked on the B65 adjusting weight to control the let off transmission with tension movement. Each loom uses one, C33 let off motion rod is installed in a straight line perpendicular to C34 adjusting rod.

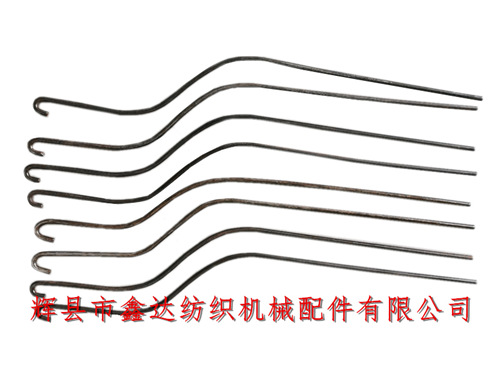

1511 loom mostly adopts the internal let off mechanism. The above figure is the flat top view of C33 moving rods. Each bundle of packaging is generally 20. During installation, it is necessary to pay attention to whether the angle of moving rods meets the requirements and whether the weight is suspended in place.
Textile machine accessories C33 let off accessories are widely used in 1511 looms with different door widths. The moving rod is a hardware processing accessory of textile machine, regardless of left hand and right hand. The adjusting rod C34 is 25mm from the bottom of the adjusting rod guide C15 (the bending shaft is in the lower center, and the tension sector rod is in the lower position).
Each weaving manufacturer needs 1511 textile machine accessories,Let-off Motion,Textile Machine Parts,C33 Lever, and inner let off accessories C33. Please contact manager Yang of our company for consultation. We are a professional 1511 textile accessories supplier and can provide professional inner let off product classification. 44 inch textile connecting rod, old-fashioned single beam, 56 shuttle loom accessories, textile 52 let-off rod, etc. belong to metric loom parts.
