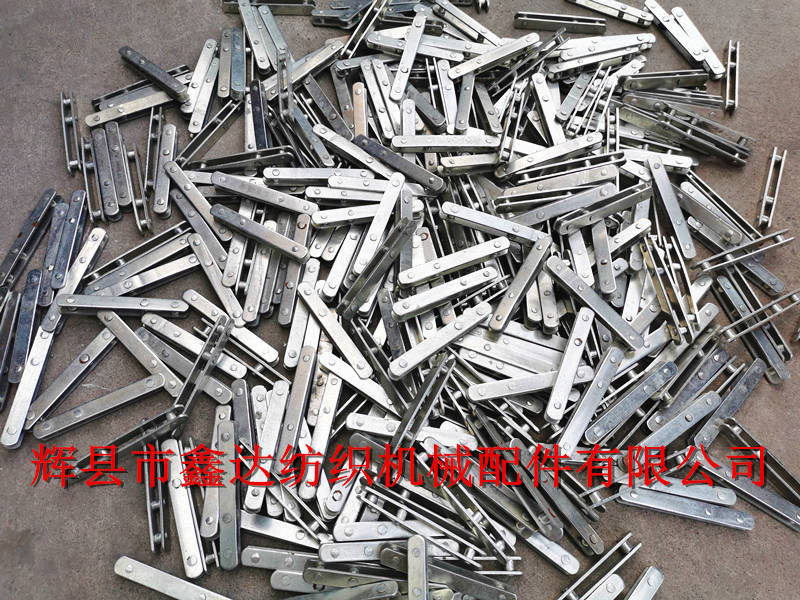

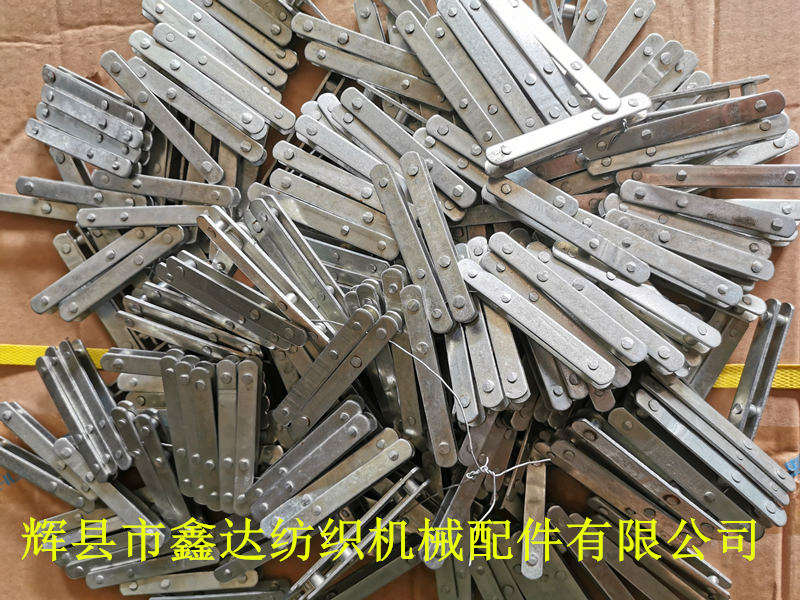

Our company provides all year round multi arm loom accessories 5100-5 hanging arm connecting hoop and all kinds of multi arm opening devices with shuttle looms. 5100-5 hanging arm hoop is composed of 5138 core, 5139 core and 5141, with a length of 84mm and a width of 10 mm. It is connected with 5130 blades and 5140 heald wire of multi arm looms, with 50 sets / string and 1000 sets / box of products.

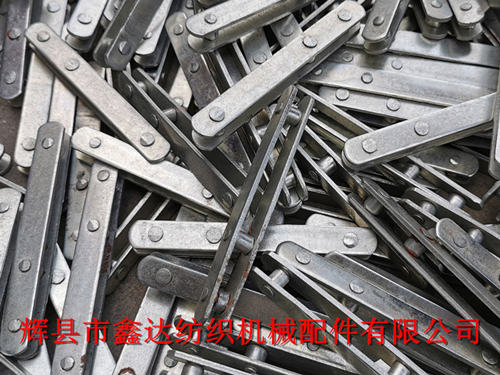

5100-5 multi arm connecting hoop is also known as "small ladder" because it looks like a ladder. The surface of the product is galvanized and the rivets are combined. Each loom uses 16 sets, which belongs to the category of textile Hardware multi arm accessories.

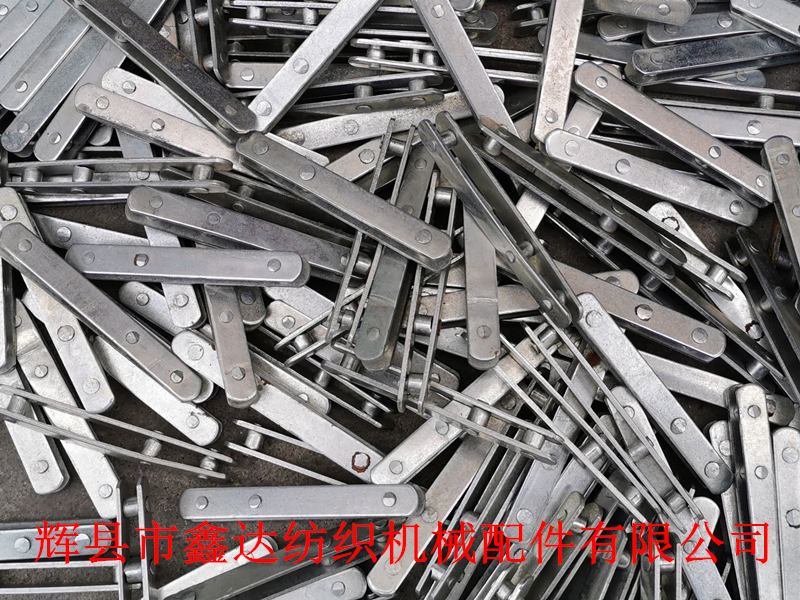

The material of the multi arm accessory arm hoop is A3, and the processing technology is stamping, punching, riveting and galvanizing. Each set is composed of two 5141 arm hoop plates. In addition, our company also provides various textile stamping accessories - tension plate, M45 lifting heald hook, M44 lifting heald plate clamp, K88 shuttle box back plate iron clad, j00-2 gantry guard, F48 plate spring, K6 sizing iron, k73 and K72 gasket, f116 side plate saddle, J32 weft fork And other products.
Textile machine multi arm accessories, hanging arm connection, connecting hoop, multi arm hanging Hoop - produced by Huixian Xinda Textile Machinery Accessories Co., Ltd., supporting the development of special model and specification of textile Hardware stamping die and mass processing and customization.
