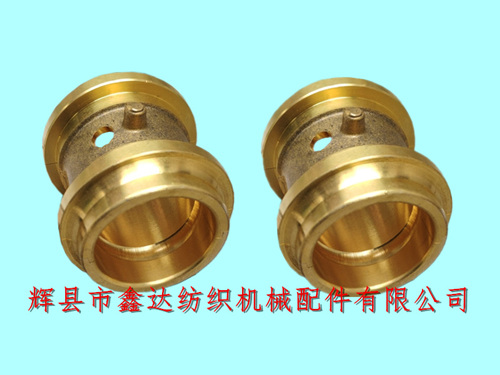

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides GA615 old loom copper sleeve, 3207 * 3208 loom hand bushing bearing bush, textile copper sleeve, loom bearing bush and textile step company.Loom Copper Sleeve 3207/08 Crank Pin Bush, It is installed on the handle assembly (3204 + 3206 + k79) of GA615 loom. 3207 and 3208 belong to semi-circular bearing shells. They are used together. The inner hole diameter is 40mm and the total height is 60.4mm. The material is cast copper. Two sets of looms (56 inch, 75 inch and 63 inch) are used. Based on the different sizes of processed blanks, their weights are divided into 0.4KG and 0.3KG.
The weight of the handle bearing bush in the figure above is 0.4KG. The installation requirements of the bearing bush (3207x3208): the wear of the outer neck shall not exceed 0.4mm, and the clearance range between the bearing bush, bending shaft (3209) and handle sleeve (k79) shall not exceed 0.3mm for major repair and 0.5mm for minor repair. The sum limit of major repair and minor repair is 0.5mm and 0.8mm, excluding the clearance between bent shaft and bent shaft bushing.
The weight on the left of the figure is 0.4KG and the right of the figure is 0.3KG. From the thickness of the hand bearing bush wall, it can be seen that the overall dimensions of the key positions are the same. The diameter of the outer edge is 61mm, the diameter above the outer edge is 48.4mm, the outer diameter of the inner side is 50mm, and the spacing between the two outer edges is 33mm.
GA615 old loom copper sleeve 3207*3208 loom handle bearing bush is packed in cartons with 40 pieces per box. Copper Sleeve,Crank Pin Bush,Loom Copper Sleeve, The oil filling hole in the middle of the loom handle bearing bush corresponds to the internal arc oil line. The loom bearing bush is made of copper to protect the service life of the dual bending shaft and handle and reduce wear.
If textile manufacturers and manufacturers need to purchase 1515 copper sleeve, 1511 hand bushing,1515 Crank Pin Bush, GA615-135 bearing bush, loom bearing bush, 3207 and 3208, please contact Mr. Yang of Xinda Textile machinery accessories. Textile copper sleeve and textile bearing bush are common key components of textile equipment. At the same time, there are corresponding nylon bearing bush specifications. Welcome to negotiate and consult for details. More copper sleeve, hand bushing, bearing bush and loom bearing bush, 3207X3208 parameters and dimensions can contact our company.
