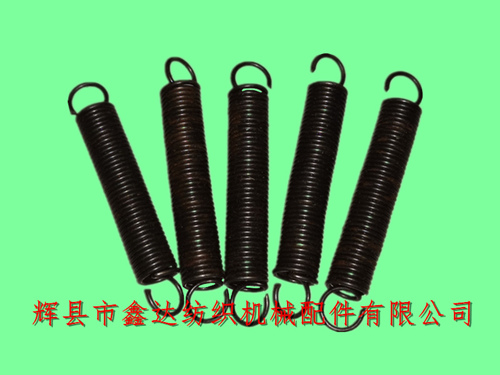

Tension spring of automatic shuttle changing loom N56 shuttle changing safety rod spring is a textile hardware accessory, which belongs to the part of automatic shuttle changing and shuttle changing safety device.Safety Rod,Textile Spring,Shuttle Loom Parts, The total length of N56 safety rod spring is 86.5mm, the outer diameter of the spring is 12.5mm, the length is 63mm (41 turns in total), the color is black, and the material is spring steel wire. The tension spring of this loom is processed with steel wire with a diameter of 1.5mm, and the number of used for each loom is 1 Pcs.
On 1511 loom, N56 shuttle change safety device rod spring is connected with N7 lifting arm and N58 shuttle change safety rod hook; On models 1515 and GA615, the loom spring is connected with the lifting arms 3711 and N58. The installation and replacement standard: the diameter of the spring steel wire is worn out less than 1/3. If it exceeds this mark, please replace it in time.
There are many kinds of springs in the loom. The shuttle changing device uses N50 coil spring, N53 shuttle stop plate spring, N55 punch spring, N61 impact bar plate spring, N71 connecting wire spring support, etc., as well as the shuttle free stop device capture rod assembly N00-7 and lifting arm screw N00-3 used to assist the shuttle changing device.
According to the different functions of loom springs, they can be divided into tension springs, compression springs (leaf springs), torsion springs, etc. textile hardware accessories include: stamping parts, springs, screws, tools and other products. Their types are diverse, and they have different uses and functions in textile machinery.
Textile mills, textile processing plants and cotton mills all over the country, if you need to purchase textile tension springs, loom springs, automatic shuttle change springs, textile hardware accessories, please contact Mr. Yang of Xinda Textile machinery accessories company for details!
