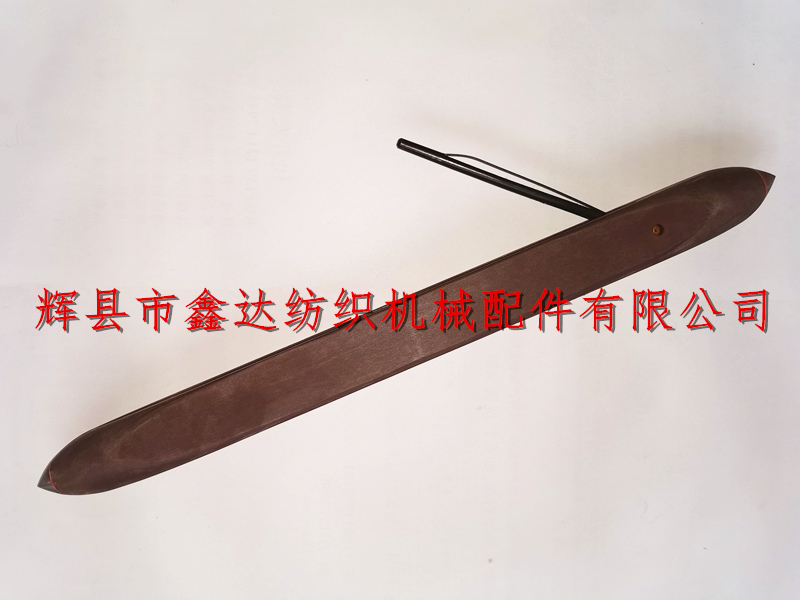

Henan Xinda Textile Machinery Accessories Co., Ltd. specializes in providing all kinds of nylon shuttle (large) with shuttle textile equipment. The total length of shuttle body is 43.5cm, the outer width of bottom is 43.5mm, the height of shuttle is 33.5mm, the front end of shuttle has three pink yarn guide porcelain eyes, the inner width of shuttle pliers is 28mm, the inner width of shuttle cavity is 3.03cm, and the inner length is 24.8cm. The nylon shuttle of the textile equipment is produced by injection molding process. The color is dark red. It can be divided into left-hand shuttle and right-hand shuttle.

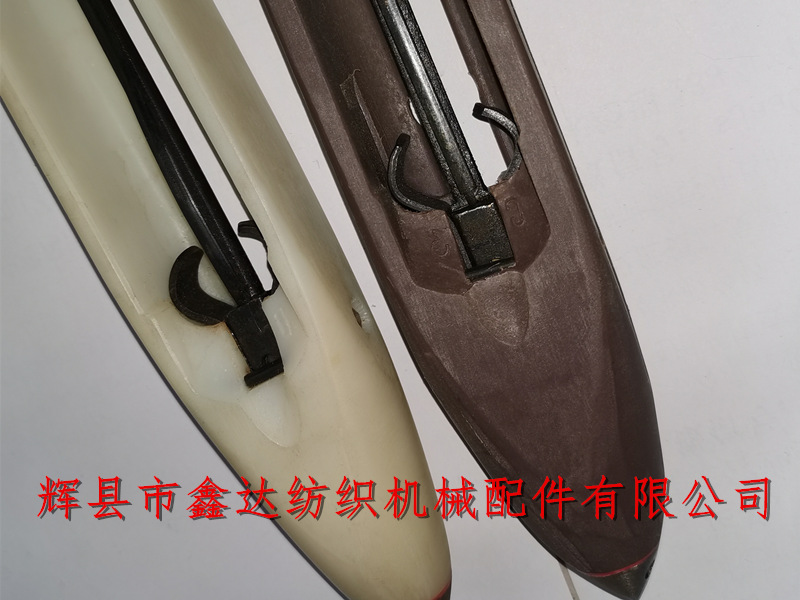

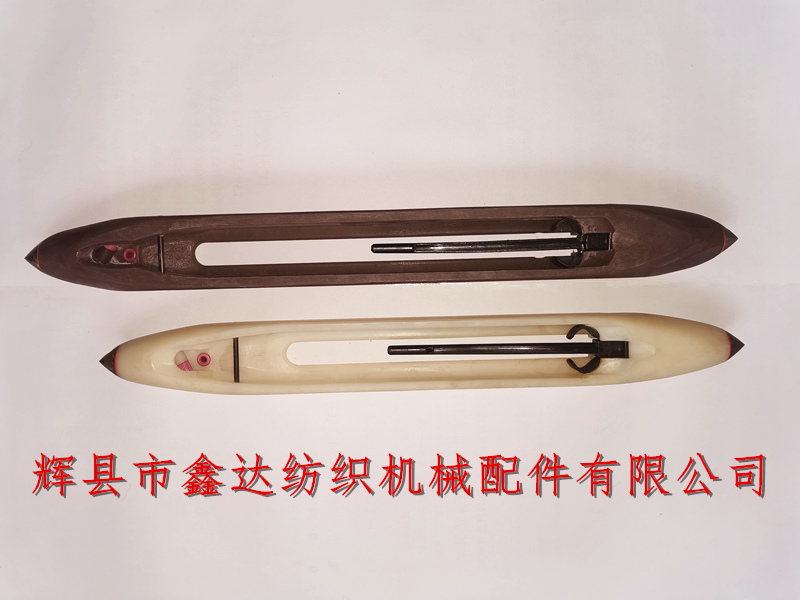

In the figure above, the left side is the small hook (white) and the right side is the big hook nylon hook (dark red). The length of the hook is different, as follows:
They are all used to clamp the shuttle core (with spring plate) with a pair of pliers. The nylon shuttle of a pair of pliers is suitable for the installation of wooden weft tubes ≤ 240mm, and the nylon shuttle of a pair of pliers is suitable for the matching of wooden fiber tubes ≤ 21.5cm. Note: the diameter of the straight neck of the bobbin is 20.7mm, and the diameter of the suitable bobbin (straight neck) is 16mm.
The angle between the side of the nylon shuttle and the bottom of the shuttle is 86.5 °, which is equal to the angle of the shuttle box of the loom.

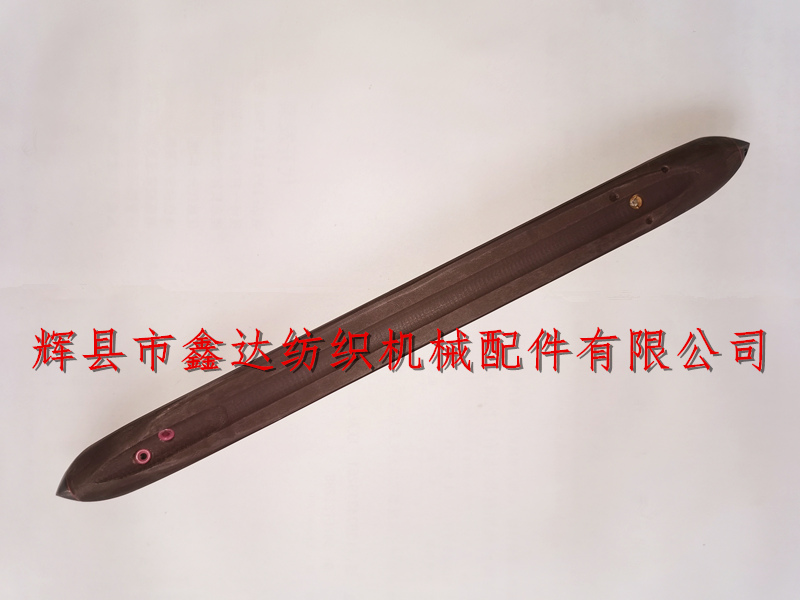

As shown in the figure above, this side of the wool spinning haspincer is used to draw out the weft. There is a weft groove on the side. You can draw out the weft from any of the ceramic holes in the figure. The above ceramic holes are installed with an inclination of 45 °. The weft from the ceramic holes has changed the direction of the weft drawing three times, with the function of anti weft shrinkage.

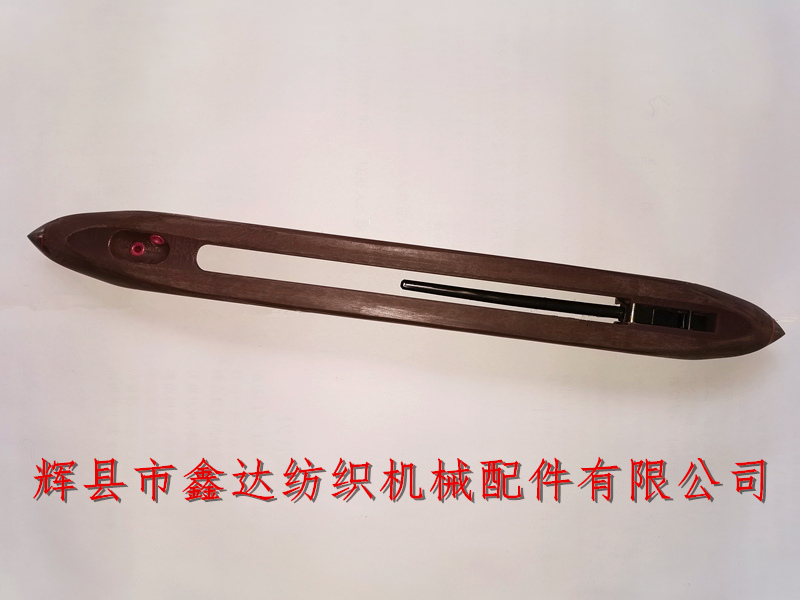

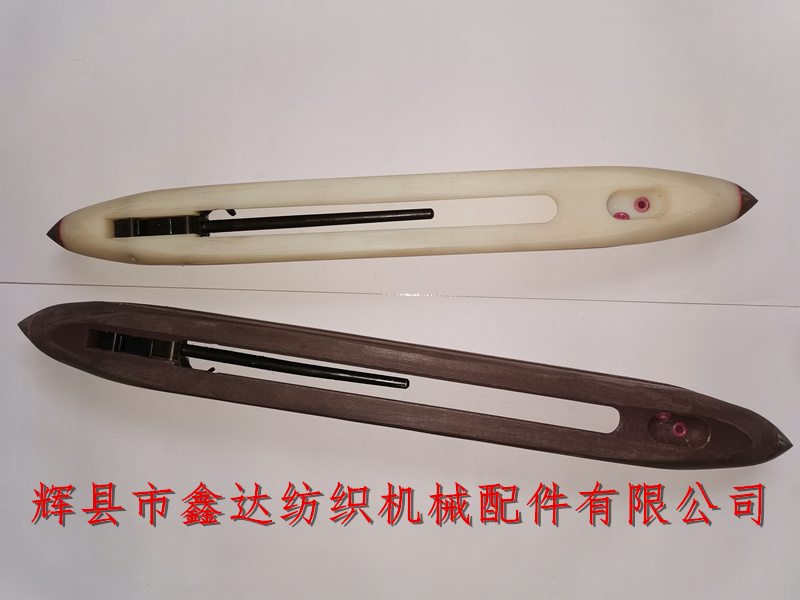

The back side (i.e. the bottom of the shuttle) of the wool loom's pliers nylon shuttle is flat. The nylon shuttle has no weft detection slot design, which is suitable for roving weaving. The inner hole of the porcelain hole is 3.5mm.
The package of woolen nylon shuttle, khakis nylon shuttle and textile nylon shuttle is carton, 50pcs / box, the initial order quantity is 1000, the delivery time is about 35 days, the default payment is arranged. If you need to purchase woolen nylon shuttle, please contact our company for detailed price and other information.
