Huixian city Xinda Textile Machinery Accessories Co., Ltd. provides 44/56"/75" Dobby Loom Hanging Heald Rope,loom accessories-harness wire rope for dobby loom heald frame accessories, which is suitable for dobby device parts with widths of 1511-44 inches, 1515-56 inches, 1515-63 inches and 1515-75 inches. The wire rope is connected with the heald frame adjustment hook.

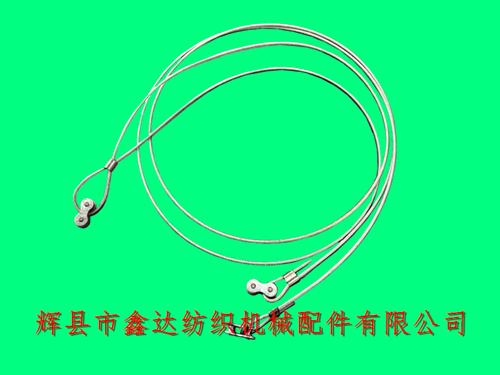

The picture above shows a steel wire rope for lifting heald, with a link installed at both ends and a link in the middle that can adjust the sliding. The number of steel wires used by each loom is related to the number of pages of heald frame. Heald frame accessories have a variety of products: heald frame hooks, adjusting hooks, heald lifting rods and so on.
In general, the number of dobby healds is 16 pages, which means that 16 steel wires are needed to hoist healds. In fact, in the weaving process, it can be appropriately reduced according to the fabric structure, and four-page healds or six-page healds can be used.
Under normal circumstances, the length of the harness rope used in the 75-inch dobby loom is about 120 inches (3 meters), and the horizontal position of the heald frame can be adjusted by the telescopic hook composed of A00-8 or H212-0532 and H212-0544 of the 214M-meter dobby loom.
If you need to purchase dobby heald rope, 1515 heald rope, GA615 heald frame accessories, dobby lattice machine accessories and other products, you can contact Yang Jingli of our company for consultation.
