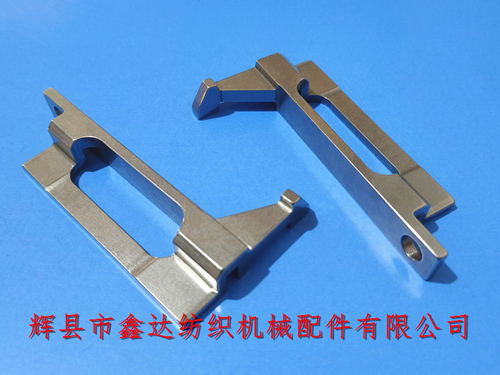

Huixian Xinda Textile Machinery Parts Co., Ltd. is engaged in the sales business of Sulzer weft delivery slider 910001255, a part of the projectile loom.Pellet Loom Parts Sulzer Feeder Sliding Rod, The weft delivery slider, also known as the weft delivery slider, is named RH Sliding Piece. The parameters of the gripper 910001255 weft delivery slider are as follows: the total length is 109.6mm, the total width is 60.5mm, and the total thickness is 15mm. The thickness of the front part of the Sulzer weft delivery slider is 4.5mm (at the position of a circular hole with a diameter of 9mm), and the thickness of the upper part is 4.5mm, The inner width of the back slide is 5mm and the depth is 9.5mm.
The Sulzer weft gripper slide rod is divided into two types: RH type with holes (911719004) and no holes (912119215). The inner length of the middle elliptical hole in 910001255 is 56.5mm, and the inner width is 15.4mm.
The thickness of the triangular head at the lower part of the weft conveyor slide rod is 6mm, the height is 15mm, and the width is 10.7mm. The thickness of the rear plane of the triangular head is 6.5mm, and the internal spacing is 21mm.
The above picture is the back view of the 910 001 255 weft conveyor slide bar. The surface finish is good, and the selected material strength is moderate. The weight of a single slide bar is 133 grams, the minimum order quantity is 10 pieces, and the delivery time is 25-30 days.
Textile enterprises and manufacturers who need to purchase P7100, TW11, PU-D1 shuttle accessories and Sulzer loom accessories, as well as the weft delivery slider 910001255, please contact Mr. Yang from "Xinda Textile Machinery Accessories" to discuss cooperation matters.
