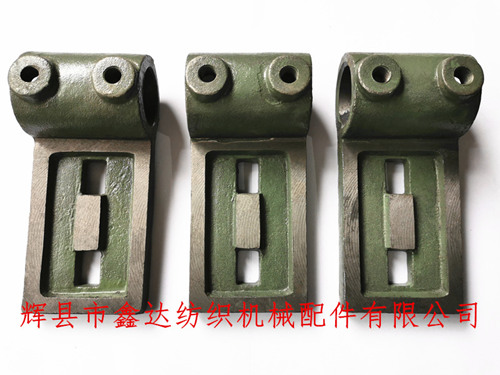

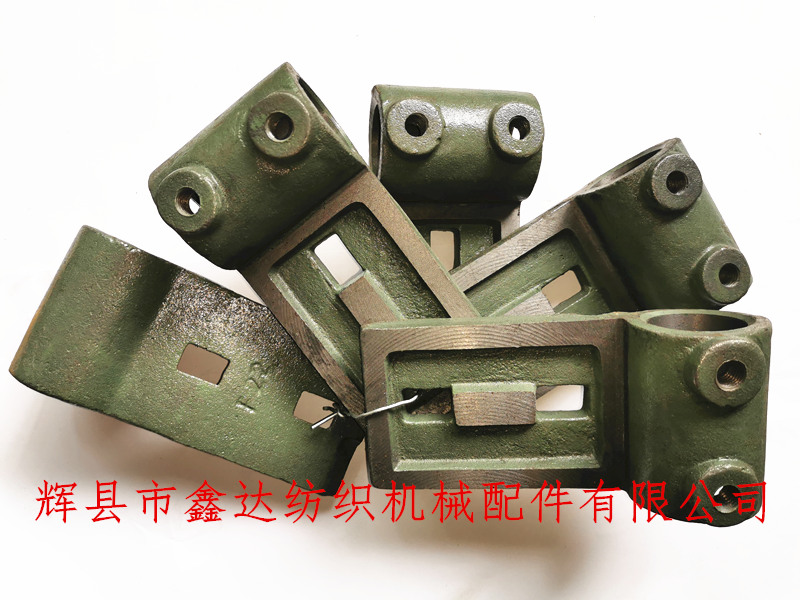

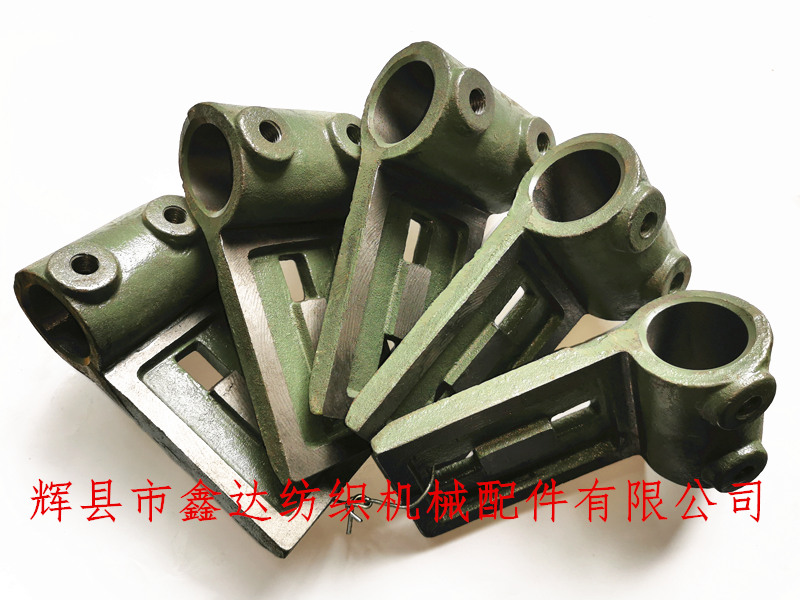

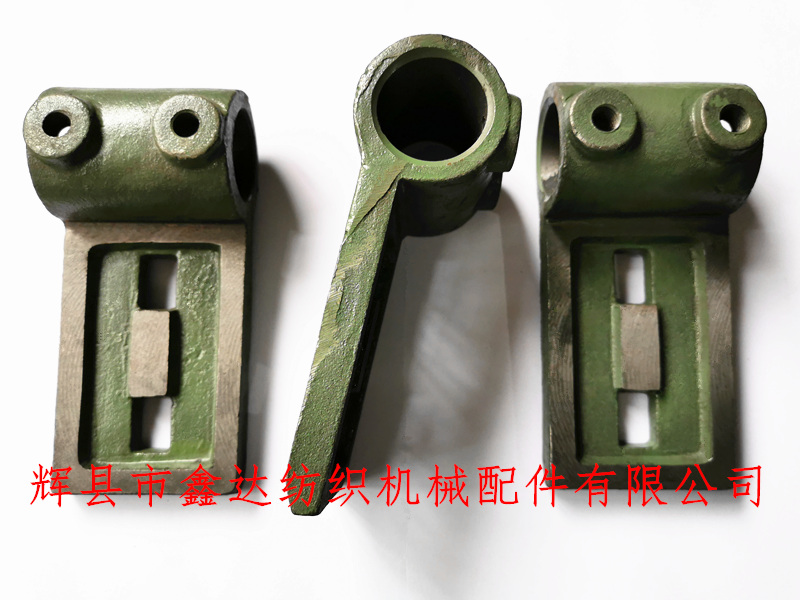

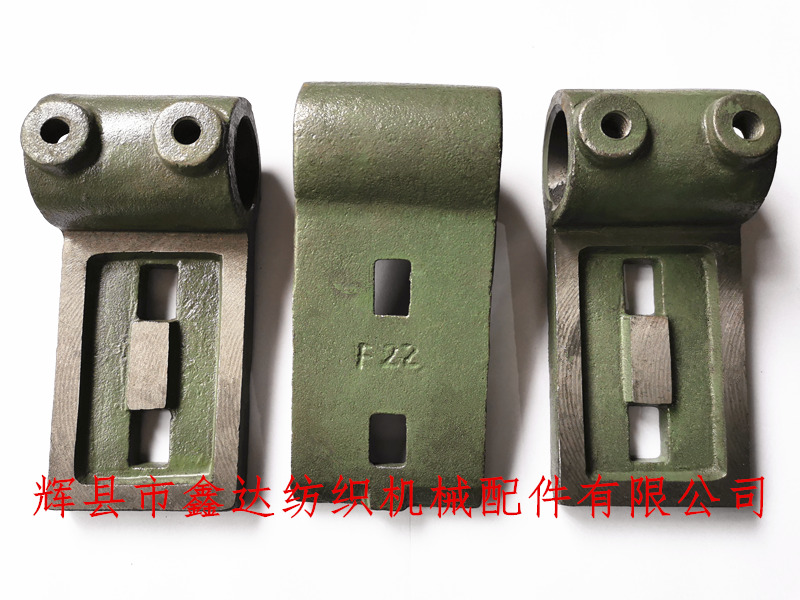

Our company has cooperated with the processing factory of the shuttle loom F22 sley joint. The diameter of the inner hole of the textile accessories Textile Lathe Sword Bracket F22 is 38mm, which is installed on the rocker shaft of 1511 and 1515 shuttle looms. One is used on each side.F22 Textile Lathe Sword Bracket Of Power Loom, The length of the connector is 17cm, the thickness is 60mm, and the width is 82mm. The material is ht15-32. The weight of a single F22 reed is 1.3KG.
The plane of the shuttle textile accessory F22 sley foot is consistent with the sley foot, and is fixed by two 12x50 carriage bolts. The shaft hole locking bolt is designed with M12 square head, which is easy to be installed.Power Loom,Textile Lathe Sword.
The Lathe Sword Bracket of F22 loom can be used in different models (1511, ga611, GA615, 1515) of the old shuttle loom equipment. It is a borrowed accessory with a plane thickness of 14mm.
Textile accessories manufacturers and sley accessories processing factories are made of simple foundry blank as raw materials and processed on lathes, milling machines, planers and other processing equipment, with low manufacturing cost and fast production efficiency.Power Loom,Textile Lathe Sword parts.
Our company provides the shuttle loom F22 textile accessories, 1515 Lathe Sword Bracket accessories, ga611 textile accessories manufacturers wholesale business, special models and specifications of sley connector can be customized according to customer requirements (complete samples are required), we sincerely welcome textile factories from all over the world to cooperate!
