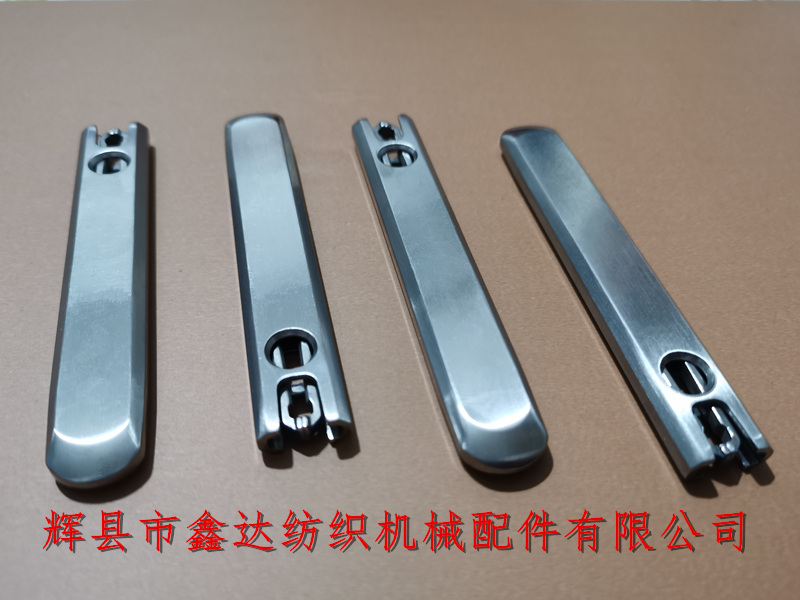

Huixian Xinda Textile Machinery Parts Co., Ltd. has long provided a stable quality Sulzer projectile loom shuttle P7100 D1 lightweight projectile combination. The total length of the P7100 Projectile Body is 89mm, the overall width of the outer shell is 14.2mm, the inner width of the gap at the yarn clip is 6.5mm, the inner length is 10.5mm, the length from the bottom of the gap to the tail is 78.5mm, the thickness before the tail slope is 5.8mm, the overall thickness at the front is 6.3mm, and the diameter of the circular hole behind the yarn clip gap is 7mm.
The P7100 shuttle combination (D1 type) is made by riveting the shuttle shell and yarn clip of the shuttle. The yarn clip comes in various specifications, and the figure above shows a 2.2*4 flat mouth 2500G. The weight of a single assembly is 36 grams, which belongs to a lightweight shuttle.

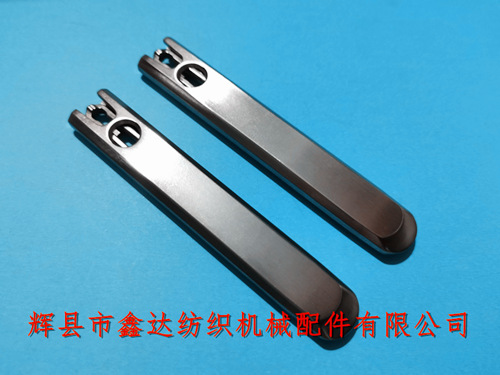

After polishing, the combined surface of the hook yarn clip (hook clip) and hook shell has a bright luster. The part number of the P7100 hook shell is 911 712 001 (D1), the part number of the hook clip is 911 312 251 (2.2*4 flat mouth 2500G), and the complete combination part number is 911 812 370.Sulzer P7100 Gripper Loom Parts,P7100,Projectile shuttle,Light projectile shuttle,Projectile loom Parts.

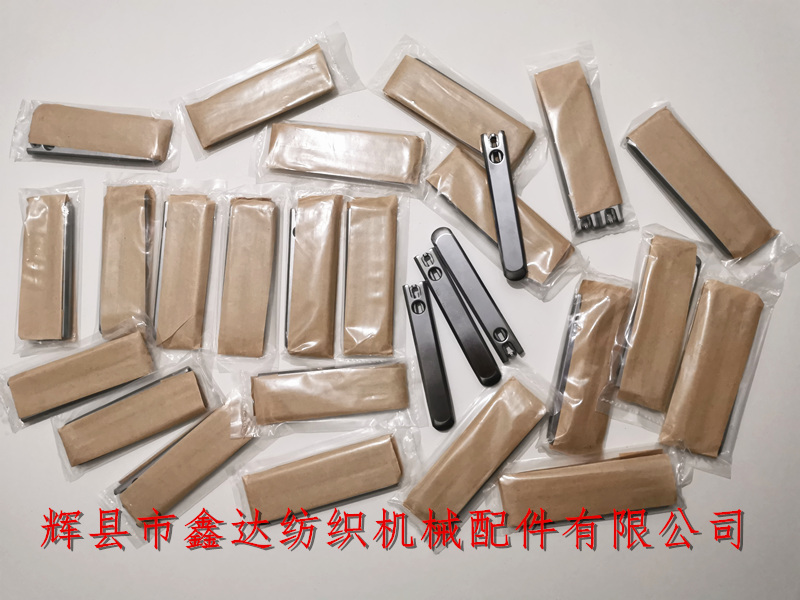

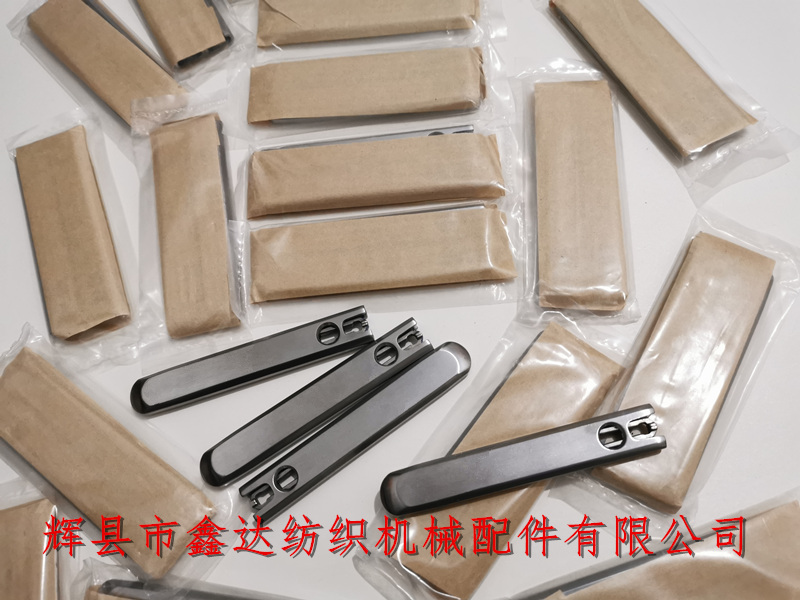

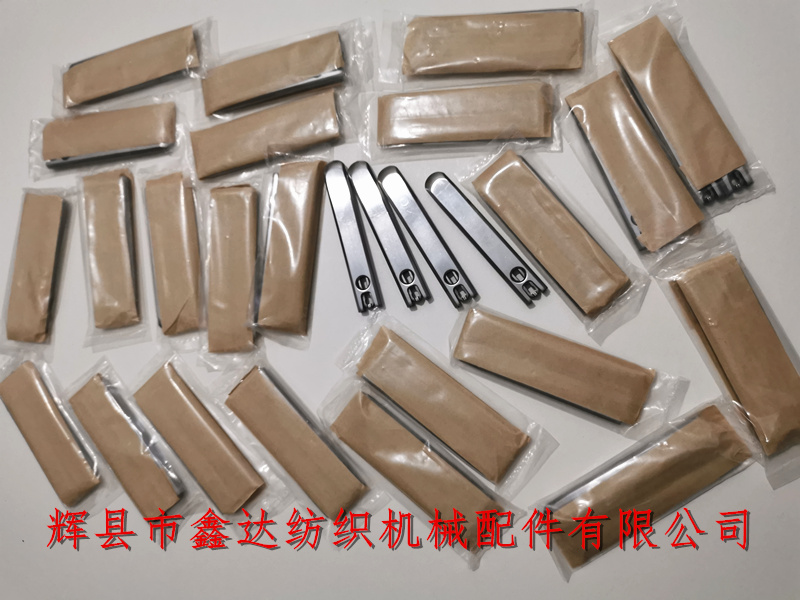

The packaging of P7100 shuttle combination is made of transparent bags and kraft paper, with 2 sets per bag. The weight of the ordinary shuttle combination is 40g, while the weight of the light shuttle combination is 36g. There is an error in the actual weight, usually within 0.5g.
The projectile combination is a vulnerable accessory for projectile weaving machines. They are generally used for Sulzer projectile weaving machines of models TW11, PU, P7100D1, D2, etc. If foreign customers need to purchase Projectile gripper, projectile shuttles, light projectile shuttles, projectile weaving machine accessories, textile accessories, and other products, please contact Mr. Yang of our company. We are dedicated to providing services to our customers!
