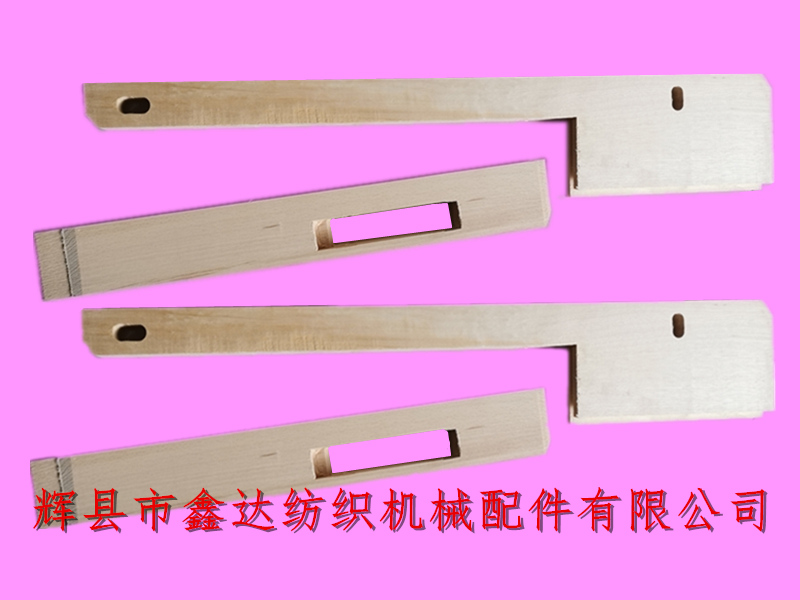

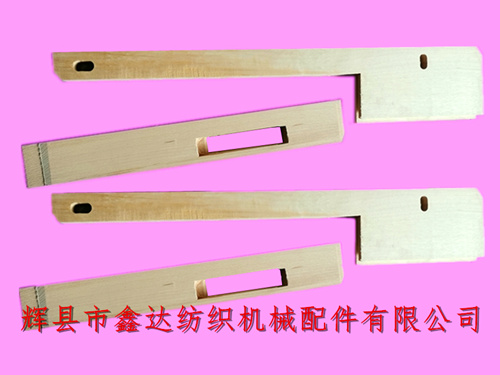

Xinda Textile machinery accessories provides all kinds of shuttle machine textile wood pieces for a long time. 1515 shuttle box back plate accessories - 3303 * 3304. The total length of loom wood pieces (back plate) is 57.5cm, the width is 9.5cm, and the thickness is 21mm. They are fixed on 3222 (1515) or 3106 (GA615) reed frame wood. Each loom uses two sets of shuttle box back plates, one for left hand and one for right hand.
The length of part 3304 of the back plate tongue of the shuttle box is 421mm, and K95 system shuttle iron is installed in the middle hole. At present, many hand-held shuttle looms have been modified to lift the back plate of the shuttle box, and 3303 * 3304 shuttle box back plate is used on both sides. K88 iron clad or j00-2 gantry is required in the installation process.

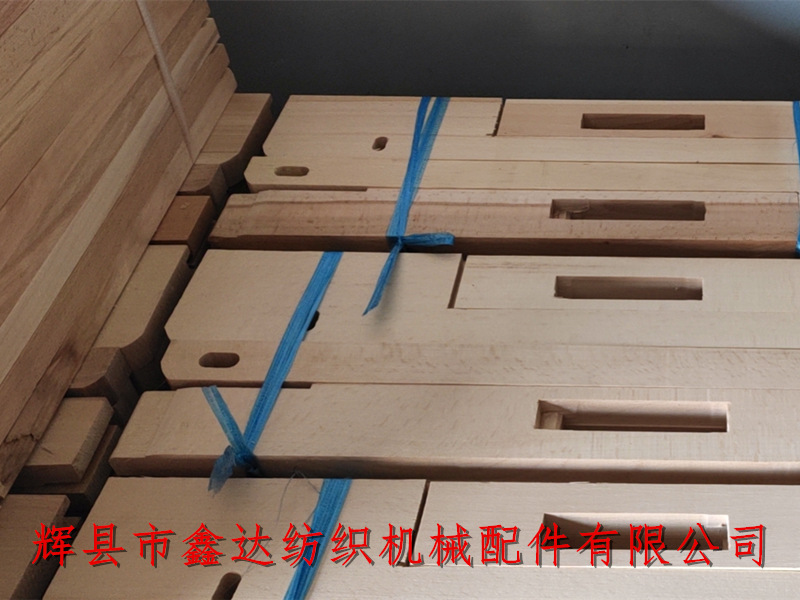

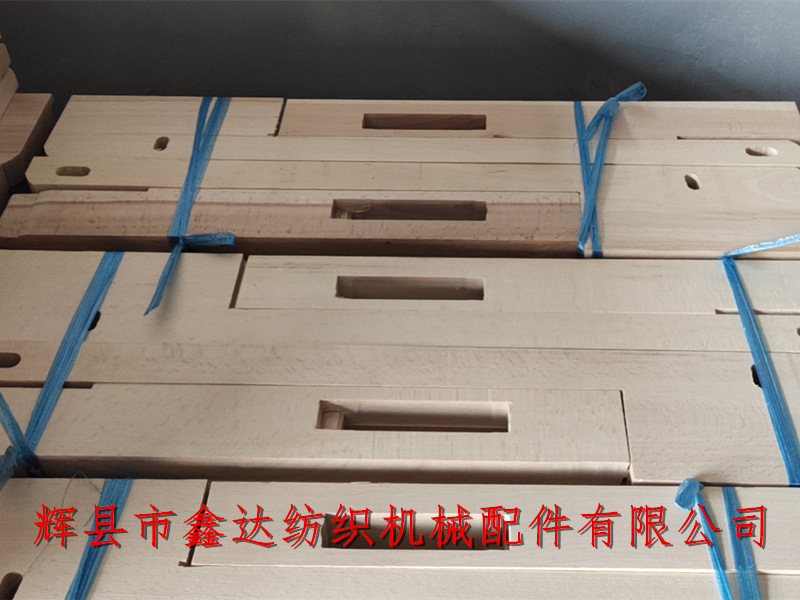

40 sets for each bundle, i.e. 20 sets for the left hand and 20 sets for the right hand of the shuttle box backboard, starting quantity: 40 sets, textile wood pieces, and the wood products of the loom are generally processed with the materials of elm and birch.
If you want to buy 1515 shuttle box backboard accessories of old-fashioned woven fabric machine, you can contact our company for detailed consultation. According to the different materials, they can be divided into birch and elm. The backboard of elm is relatively hard and has good wear resistance, but the antithesis - shuttle wear of loom will be serious.
