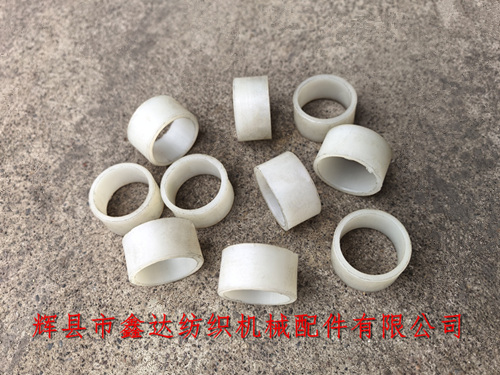

Huixian Xinda Textile Machinery Parts Co., Ltd. provides GA615 Twill Loom Peach Disk Bushing 3439, a sleeve 3439 for the peach disc shaft hanging foot of the 1515/GA615 twill weaving machine. The nylon sleeve 3439 of the weaving machine is installed on top of 6112 and 6113 (step disc shaft hanging foot), forming a joint of 6100-9 and 6100-10. This hanging foot is installed on the front and rear support blocks in the middle of 1515 and GA615 to support the transmission of the peach disc shaft.Bushing,Twill Loom Parts,Peach Disk,GA615 Loom.
Each peach plate hanging foot uses 2pcs 3439 nylon sleeves, which means that each weaving machine uses 2 3439 sleeves. Depending on the left and right hands of the machine, corresponding 6100-9 and 6100-10 sleeves need to be used.
The outer diameter of the nylon lining is 36mm, the inner hole diameter is 30mm, and the outer ring width is 20mm. This nylon lining is suitable for 1/2 diagonal, 3/1 diagonal, and 2/2 diagonal devices on 1515 and GA615 looms.
If you need to purchase peach disc shafts, weaving machine nylon liners, twill weaving machine accessories, 1515 weaving machine parts, GA615 hanging feet and other products, you can contact Mr.Yang from our company for consultation. Welcome everyone to visit!
