Huixian Xinda Textile Machinery Parts Co., Ltd. provides B23,B24,B25 Catch For Loom Let-off Ratchet, B23,B24 and B25 warp feed saw gear support heads (short, medium, and long). The length of the B23 warp feed support head (short) is 42mm (the straight-line distance from the axis of the hole to the edge of the support teeth), the length of the B24 (medium) is 45mm, and the length of the B25 long support head is 47.5mm. They are combined to form B23-25 and installed on the support head bolt of B55.

The front part of the B55 support bolt is fixed on the B22 Catch lever for friction ratchet (feed saw gear support rod). The inner hole diameter of B23, B24, and B25 is 10 millimeters, and there is an oil injection hole on the back. The front support teeth alternately push the diagonal teeth on the feed saw gear for feed action.

The packaging for B23, B24, and B25 saw gear support heads (short, medium, and long) is: 50 pieces per string, made of pig iron HT15-33. During installation, the lateral clearance of the B22 Catch Lever should not exceed 0.8 millimeters; The accessories of the B-series weaving machine belong to the inner warp feeding component, which is used for smooth transportation of warp yarn on the weaving machine.

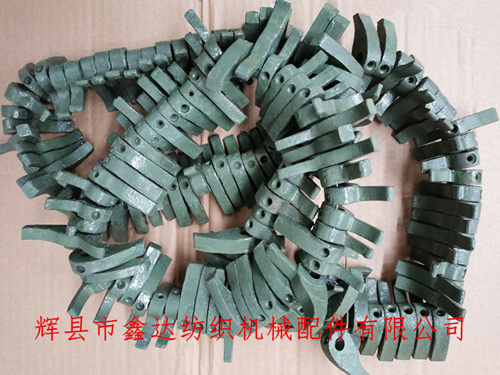

The above picture is a top view of the packaging of the iron support head B23-B25 for the weaving machine. This type of iron support head is mainly used for the 1511 weaving machine, and some 1515 warp feeding looms can also be borrowed; B23,B24,B25 Catch For Loom Let-off Ratchet, If you need to purchase textile support heads, warp saw gears, loom warp support heads, 1511 old fabric machine accessories and other products, please contact Mr. Yang from our company for consultation.
