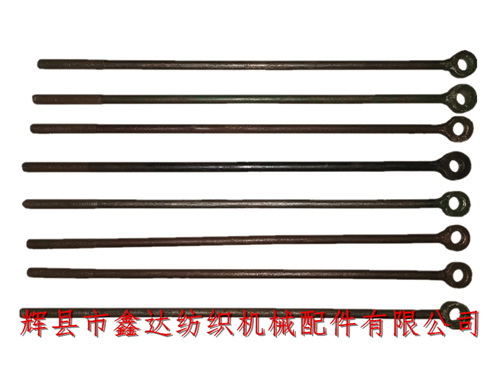

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides textile accessories, textile connecting rod, switch connecting rod and other products. The total length of textile accessories switch vertical connecting rod I00-1 is 33.5cm, the diameter of connecting rod is 7mm, the outer diameter of connecting rod head is 20mm, the inner diameter is 10.3mm, the thickness is 6mm, the screw head screw is M8, and the gap between textile connecting rod I00-1 and I20 switch connecting rod is no more than 0.4mm.
The sliding teeth of I00-1 screw of textile connecting rod shall be replaced. One piece shall be used for each loom and installed on the switch side of the loom. Attention during the installation of switch starting and braking parts: if the gap of switch handle supporting foot I2 is worn, it can be filed, and the worn switch handle I10 should be repaired or replaced; If the closing connecting rod I12 is burned by electric welding, it should be trial installed on the supporting foot of the switch handle to check whether the bending and the middle hook are close to the supporting foot; Check that the fit clearance between the switch handle I10 and the pin I33, the closing connecting rod I12 and the closing connecting rod core I18, and the tilt rod I3 and the tilt rod core I23 should not exceed 0.6mm.
Textile small rigid parts are used in the let off part, starting part, braking device and shuttle changing parts of the loom. Their common function is to support the warp break stop, weft break stop and warp conveying of the loom. The textile connecting rod I00-1 is composed of I55 retaining ring and I27 rod body, and one is used for each loom.
The upper part of textile fitting I00-1 (switch vertical connecting rod) is fixed on I14 and the lower part is connected with V-shaped rod I15. It belongs to the shuttle free self-stop device of loom. Textile Switch Vertical Connecting Rod I00-1,The prevention and control of its failure on loom should focus on correcting the position and function of shuttle free self-stop device of shuttle magazine and each connecting piece of transmission shutdown.
