Huixian Xinda Textile Machinery Parts Co., Ltd. provides C-32 multi shuttle box Nipping Support (214M textile accessories). C-32 shuttle box Nipping Support is divided into C-32R (right-hand) and C-32L (left-hand). It is a shuttle box component with shuttle textile accessories, installed at the shuttle inlet of the weaving machine's multi shuttle box. The number of multi shuttle boxes used on each side is one, suitable for use on multi shuttle grid weaving machines with door widths of 44 inches, 56 inches, 63 inches, 75 inches, etc.

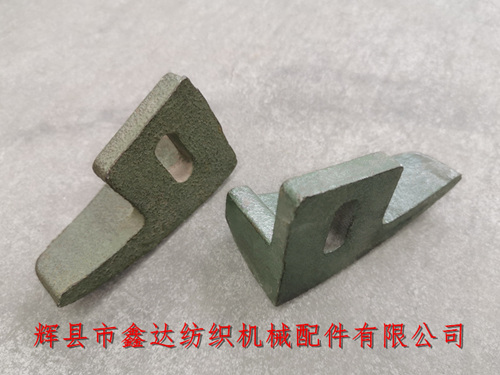

The left side of the picture is C-32R, and the right side is C-32L. The bottom surface is polished and made of gray pig iron HT15-32. With the same curvature, the position of the fixing hole remains unchanged, but its orientation is different. A-24 hanging comprehensive hundred foot seat, A-25 hanging comprehensive hundred foot seat, A-27 upper gantry stopper, A-28 Yangyuan tight ring, A-21 straight support stopper, A-22 large blade, A-16 puller, A-13 pliers, A-20 iron wood comb wood, A-23 hanging comprehensive spring, A-08 bridge two corner handle, A-01 large head blade, A-07B Yangyuan rocker arm, A-36 wooden roller (belonging to 214M-A00-5).
The C-32 shuttle textile accessory is in contact with one side of the wooden reed cap of the multi shuttle loom, and the 214M multi arm component of the loom is matched with the multi shuttle assembly to weave different specifications of checkered fabrics (woven fabrics in checkered shapes).
The 214 type double drum multi arm parts are different from the 51 and 52 series accessories of the 1515 series, and they use different models. The installation of multi shuttle devices on weaving machines of models 1511, 1515, GA615, etc. is mainly based on borrowing 214M (C-type 1515).
If you need to purchase 1515 Nipping Support, C-32, For products such as multi shuttle box accessories, textile accessories, and 214 multi shuttle accessories, please contact Mr. Yang from our company for consultation.
