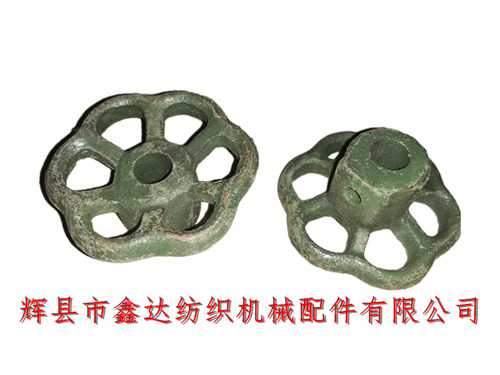

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides shuttle textile machine handwheel B34 warp adjustment parts all the year round. Its material is HT15-33, and the inner hole diameter is 14mm, which is used to install on the upper part of B53 inclined shaft. The shape of textile machine accessories handwheel is six petal design, the outer diameter is 75mm, the height is 35mm, and the tightening screw hole on the side of textile machine handwheel is M8, One B34 hand wheel is used for each loom.
The above figure is a top view of the B34 warp adjusting hand wheel. The fitting is not divided into left and right hands, and the length of the middle inner hole is 30.5mm. Textile machine hand wheel B34 belongs to the inner let off accessories of loom. It is suitable for inner let off loom equipment of models 1511, 1515 and GA615. The weight of a single hand wheel is about 0.2kg.
The warp adjustment function of the textile machine hand wheel B34 is to twist the hand wheel to realize the warp relaxation after the machine rotates when the machine is stopped, which is convenient for the car stopper to repair or adjust the cloth surface. At present, shuttle looms are mainly distributed in Guizhou, Yunnan, Guangxi, Tibet, Qinghai, Liaoning, Shandong, Hebei, Hubei, Guangzhou and other provinces and regions. Generally, there are 25 small cast iron parts in each string, with a minimum order of 50.
For Guangxi loom, Yunnan loom, Guizhou loom, Xinjiang loom and Tibet loom, if you need to purchase textile machine hand wheel, textile machine accessories, hand wheel and other accessories, please contact Mr. Yang of our company for details!
