Huixian Xinda Textile Machinery Parts Co., Ltd. provides P7100 Picking Link 911322525 D1 Sulzer Part, P7100 shuttle connecting rod 911322525 Sulzer projectile weaving machine accessories. The middle of this 911 322 525 shuttle connecting rod (P7100 type) is hollow, and its detailed dimensional parameters are: total length is 35mm, width is 16mm, overall thickness is 7.3mm, small hole diameter is 6mm, large hole diameter is 12mm, both sides of the large and small holes have chamfers, and the inner width of the hollow position in the middle is 5mm, thickness is 3mm; There is also a sloping shape with different external dimensions, which can be used for the P7100-D1 type gripper Loom weaving machine equipment.

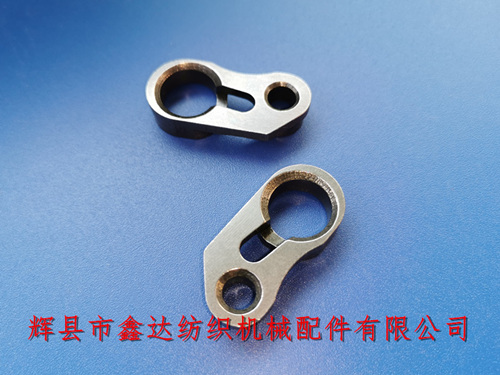

The above picture shows the front and back photos of the 911322525 picking link. The length of the hollow position in the middle is 21mm-12mm=9mm, the inner width of the straight groove on the back is 4mm, the outer diameter of the small hole is 11mm, and the step height is 4.5mm; The outer diameter of the large hole is 17mm, and the step height is 4.1mm.
The Chinese name for the textile accessory P7100 picking rod is: 投梭連桿， The weight of a single connecting rod is approximately 12 grams, packaged in transparent self sealing bags with 20 pieces per bag.
If you need to purchase P7100 Picking Link, P7100, Sulzer accessories, 911 322 525 D1 weaving machine accessories and other products, please contact Mr. Yang from our company for consultation. We welcome customers to discuss and consult procurement matters.
