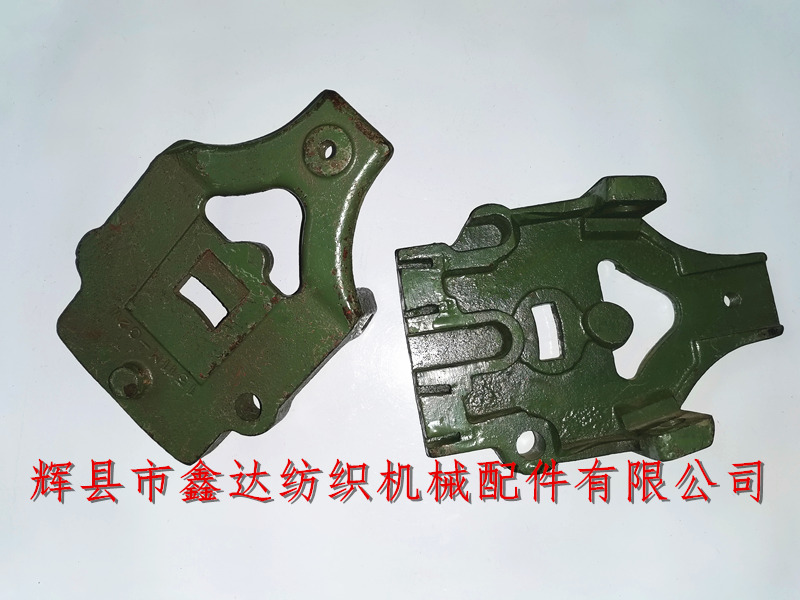

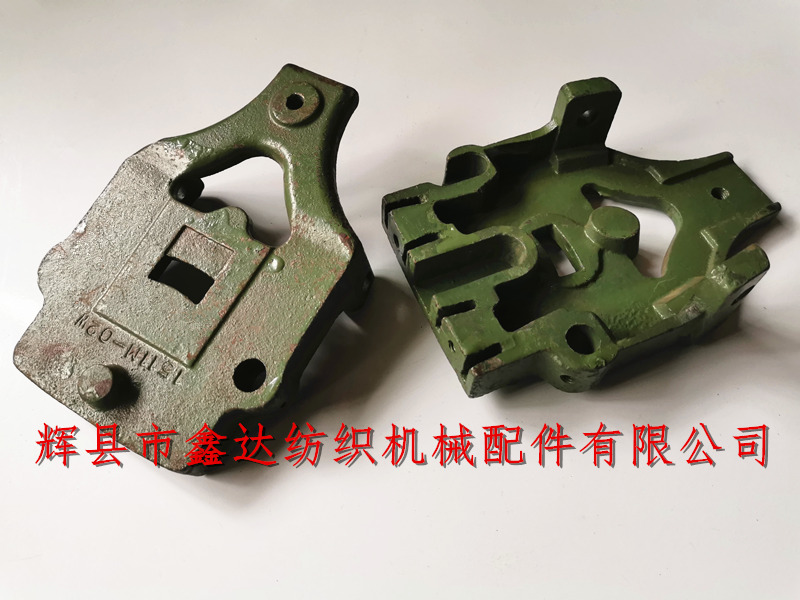

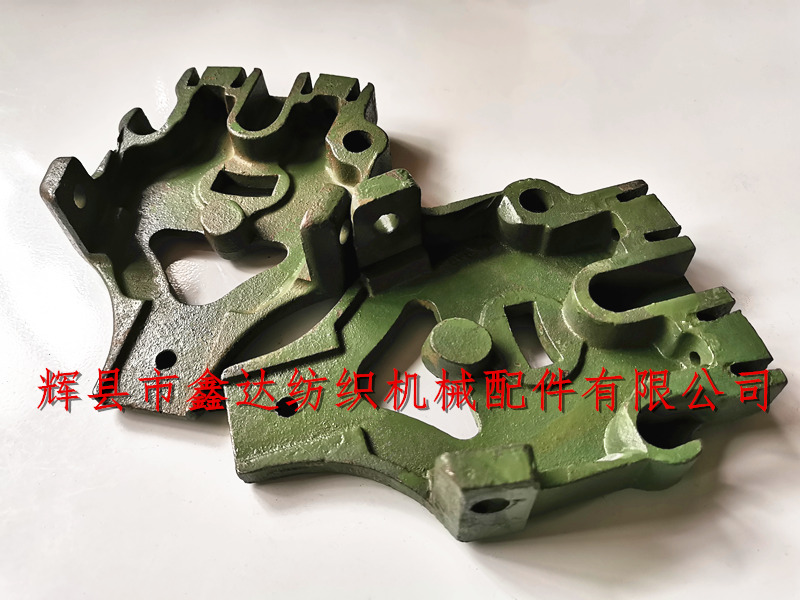

Henan Xinda Textile Machinery Accessories Co., Ltd. has long provided various models of stop frames O1(side bracket for warp stop box), left and right, made of gray iron. The stop frames are mainly used to fix the stop bar and support bar of the stop frame, connect the foot of o44 stop frame, and hang on the suspension arm of o101 / o102 stop frame. The length of the stop frame is 164mm. Each machine uses one.
The diameter of the round bar o38 used for the stop frame of the loom is 12mm, which is fixed on the stop frame. The length of the round bar is different according to the door width of the machine. The length of the 44 inch loom is 1167mm, that of the 56 inch loom is 1474mm, that of the 75 loom is 1954mm, and that of the 63 inch loom is 1649mm.
O1 and O2 stop frame belong to the general accessories of looms 1511, 1515, GA615 and G611. O51 stop frame cover plate is used to keep the stop bar from falling.

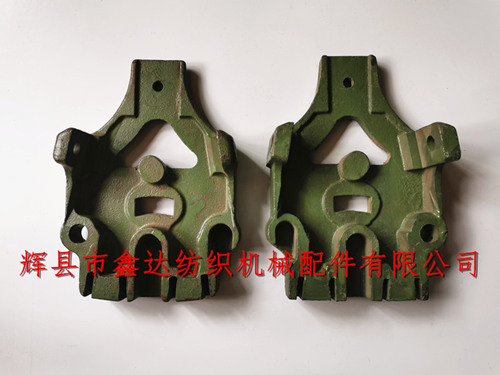

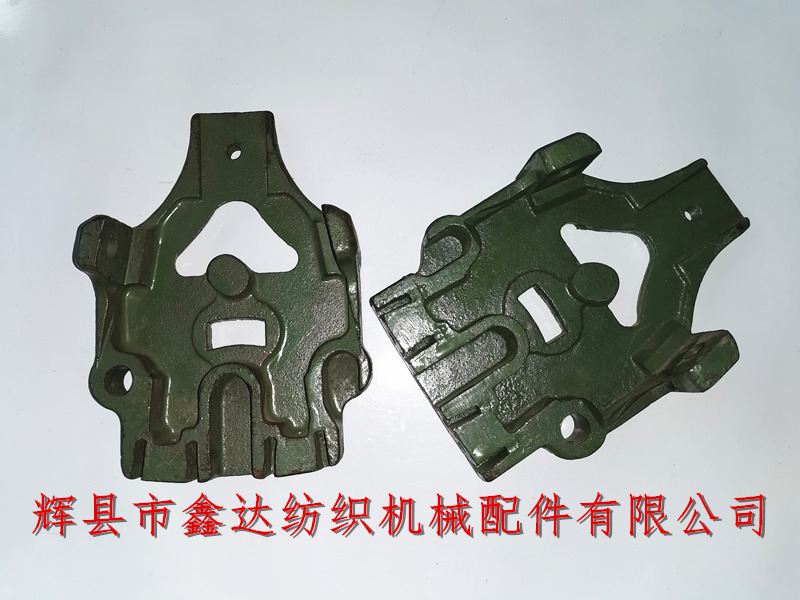

In the figure above, the left side is the loom stop frame O2, and the right side is O1. When identifying, it can be seen that the inclined direction of the flat circular table in the middle of the accessories is O2, while the left side is O2, and the opposite is O1, 10 pieces / bundle, and the starting quantity is 10 pieces.
Textile suspension frame, suspension frame accessories, loom suspension frame - produced by Huixian Xinda Textile Machinery Accessories Co., Ltd., welcome to contact us for cooperation!
