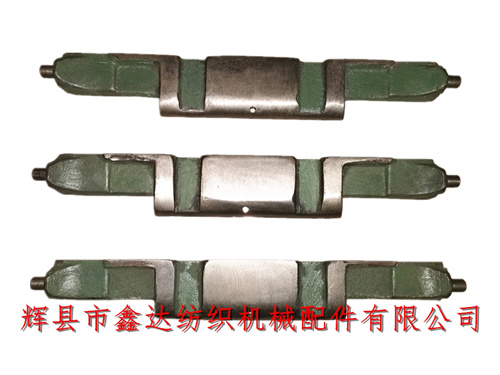

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides k64 front convex plate of loom shuttle box accessories, which can be used for shuttle loom equipment of 1511, 1515, GA615, G611 and other models, regardless of left and right hands. The total length of K64 convex plate is 38.7 cm, and the diameter of shaft heads at both ends is 12 mm, The clearance between the shaft heads at both ends and the supporting feet of the front convex plate (shuttle box fitting 3300-1 * K00-2) shall not exceed 0.4mm, the transverse tolerance shall be 0.4mm, and it shall be 0.8mm higher than the shuttle box bottom plate (check when lifting the front convex plate).
The included angle with the shuttle box bottom plate is 20 °, and the error is no more than 0.1mm (check with setting gauge and feeler gauge). Check with a ruler: the two ends should be 0.8mm lower than the middle part. When lifting, do not touch the bottom plate of the shuttle box (3308 or K15), and closely contact with the front convex plate pad Q40 (spot check 4 points evenly in the whole length, press in 0.04mm micrometer, and it is tight if it cannot be pulled out). When lowering, it can fall easily, and the rear edge should be retracted into the supporting foot (K00-2 * 3300-1) by 0.8mm.
The thickness of the rear edge of loom accessories - K64 convex plate is 12.5mm, the width of the middle part is 57mm, and M6x12mm smooth hexagon head bolts are installed in the middle hole. Except for the shaft heads on both sides, the length is 36 cm, and the length of the convex edge is 17.7 cm.
The K64 convex edge plate used in the automatic shuttle changing loom is the shuttle changing part in the shuttle box structure. The material is gray pig iron HT15-33. The weight of a single convex edge plate K64 is 0.9 kg. It is suitable for shuttle looms with various door widths such as 42 inches, 44 inches, 56 inches, 63 inches and 75 inches.
If you need to buy Xinda loom accessories, Xinda shuttle box accessories, convex plate, automatic shuttle loom accessories and other products, please contact Mr. Yang of our company for details!
