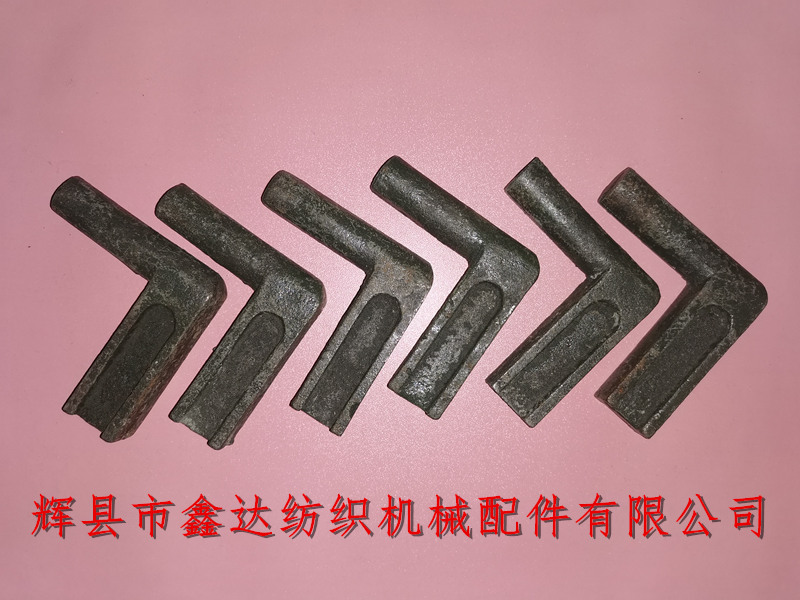

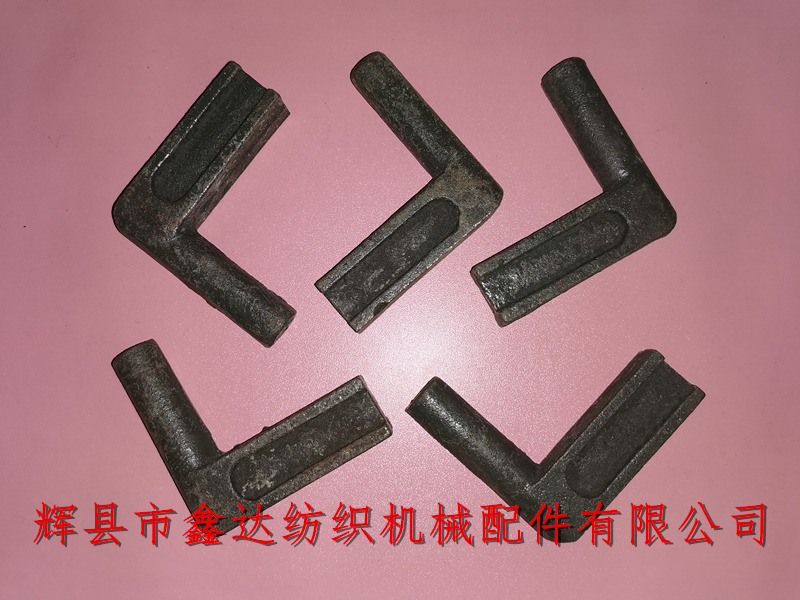

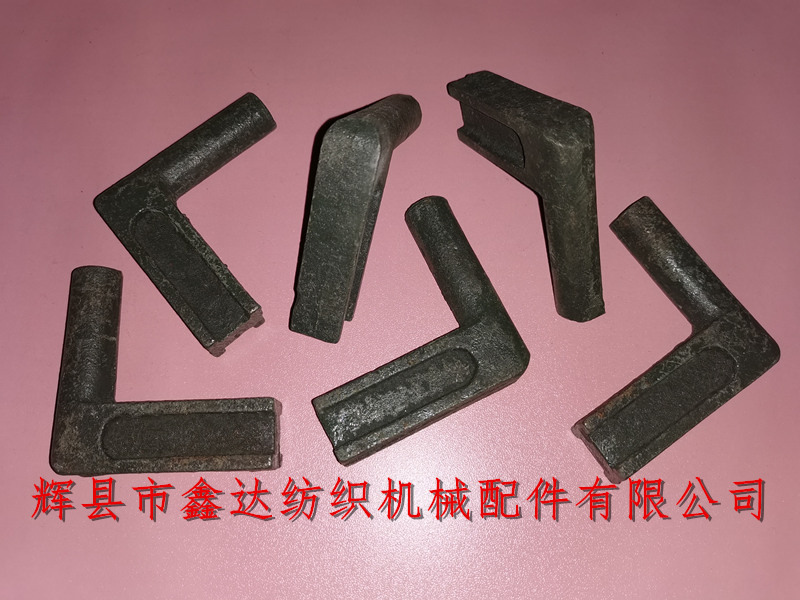

Huixian Xinda Textile Machinery Accessories Co., Ltd. specializes in providing textile equipment parts - L2 taking-up finger. The taking-up finger L2 of weaving machinery has a length of 62mm, a round head diameter of 14mm, a width of 57mm with chute side, and is made of gray pig iron. On textile equipment, L2 is used together with guide groove foot L1 and coiling rod L4, which is mainly used for the control of coiling device.
The textile coiling iron finger is installed in the middle of the guide groove foot, and o14 stops with the other side of the guide groove foot, so as to realize rapid shutdown in case of textile equipment failure.
The traditional mechanical device is characterized by direct reaction, low failure rate and few failure errors. The weight of a single coiling iron finger is about 0.15kg. The outer width of the chute in the figure above is 20mm and the thickness is 15mm.
The clearance between L2 and the sliding groove of the take-up rod L4 needs to be less than 2.5mm, so as to ensure that there will be no damage to the parts when the reed foot swings back and forth, and ensure the normal take-up of textile equipment. When textile customers purchase coiling iron fingers, textile equipment accessories and shuttle textile accessories in our company, please provide accurate accessory code or piece number. If there are other requirements, please inform them together.
