Huixian Xinda Textile Machinery Parts Co., Ltd. provides PU plastic chucks, silk weaving machine shuttle accessories, and textile nylon products year-round. PU plastic chucks are divided into bottom edge and bottom edge free ones, with a total length of 40mm, an external width of 22.8mm, and a height of 18mm. There are raised circular tables (2mm in height) on the two outer sides of the front, with a diameter of 10.5mm at the neck of the fixed tube in the inner cavity, and a width of 14mm and a length of 19mm in the rear cavity; In addition to the above dimensions, for those with edges at the bottom, an outer edge is added at the front of the bottom edge, and the width of the outer edge on one side is 1.5mm, which means the total width is 26mm.

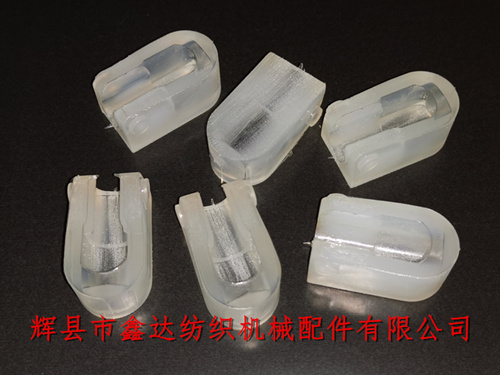

The edge type PU chuck is suitable for use on composite nylon shuttles of silk weaving machines. The edge less type is mainly suitable for wooden shuttles (with or without steel paper), and is often used with coreless tubes. The picture above shows the edge less PU plastic chuck, which is an accessory of silk weaving machine shuttles and belongs to the category of textile nylon equipment.
The minimum order quantity for this type of PU collet is 100 pieces, and the normal delivery time is about 5-8 days. The packaging is self sealing bags, with 50 pieces per bag. The weight of a single edge less collet is about 11 grams, and the weight of a single edge clamp is about 11.5 grams.
Silk looms refer to weaving machines used to weave silk. Generally, the shuttles used with them have a smaller overall size, and there are multiple specifications of nylon clamps used. Please check based on the detailed dimensions provided by our company! PU plastic chuck | Silk weaving machine shuttle accessories | Textile nylon products,PU Plastic Chuck Textile Nylon For Silk Loom.
If you need to purchase textile clips, PU plastic clips, silk loom shuttles, loom shuttle accessories, textile nylon products, etc., please contact Mr. Yang of our company for consultation!
