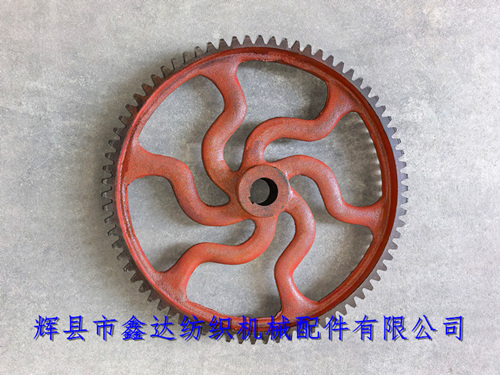

Huixian city Xinda Textile Machinery Accessories Co., Ltd. provides Loom Gear, Tappet Shaft Wheel,Ductile Iron Gear,Milling Gear, GA615 accessories, GA615 loom accessories -0204 treadle shaft gear 76-tooth ductile iron shaft gear (milling gear), which is meshed with GA615 loom crank shaft gear 0200-2(38-tooth bent shaft gear). The overall external dimension of 0204 gear is the same as E2, with its inner hole diameter of 42mm, outer diameter of 467.4mm and keyway width of the middle hole of 12mm.
The 76 teeth of this gear are milled and made of nodular cast iron (nodular cast iron for short). The tooth tip thickness of GA615 pedal shaft gear should not be more than 1.6mm, and it is not allowed to continue to use when teeth are missing or broken.76 tooth Ductile Iron Milling Gear For Loom Tappet Shaft Wheel.
When the teeth at the picking action point are seriously worn, the position of the installation keyway of the upper 38-tooth wheel can be adjusted to change the position, thus changing the picking action point of the 0204 spur gear. 0204 pedal shaft gear 76-tooth ductile iron shaft gear (milling gear): the pedal shaft is located in the middle of GA615 loom, so it is also called "shaft", which is an important part of shuttle throwing in loom transmission.
When it is installed with the bending shaft gear 0200-2 of loom, to achieve good meshing, the tooth end faces of the two gears should be flush and rotate flexibly. Whether it is 36 teeth /72 teeth (used by 1511 and 1515 models) or 38 teeth /76 teeth (used by GA615 models), their gear ratio is 1:2, and the principle is the same.
If you need to purchase GA615 loom gear,Tappet Shaft Wheel,Ductile Iron Gear,Milling Gear 0204, 1515 pedal shaft, 1511 ductile iron castings and other accessories of GA615, please contact Mr. Yang of our company for consultation.
