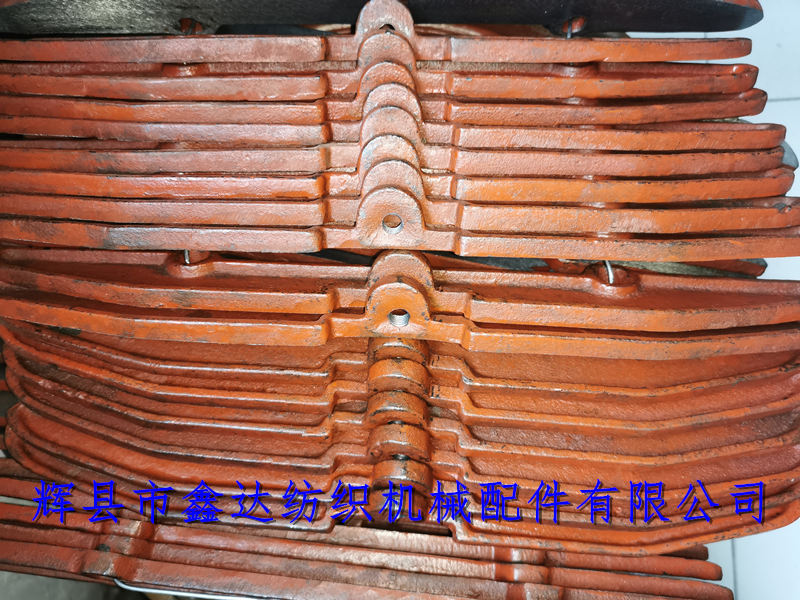

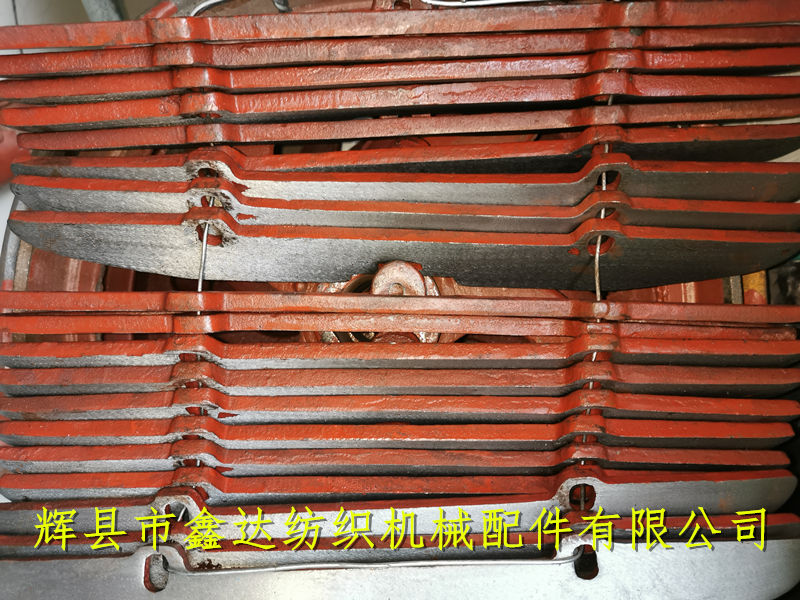

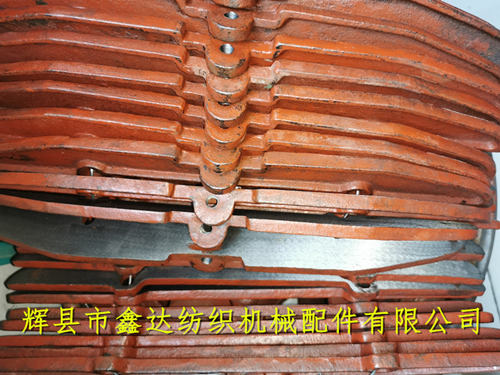

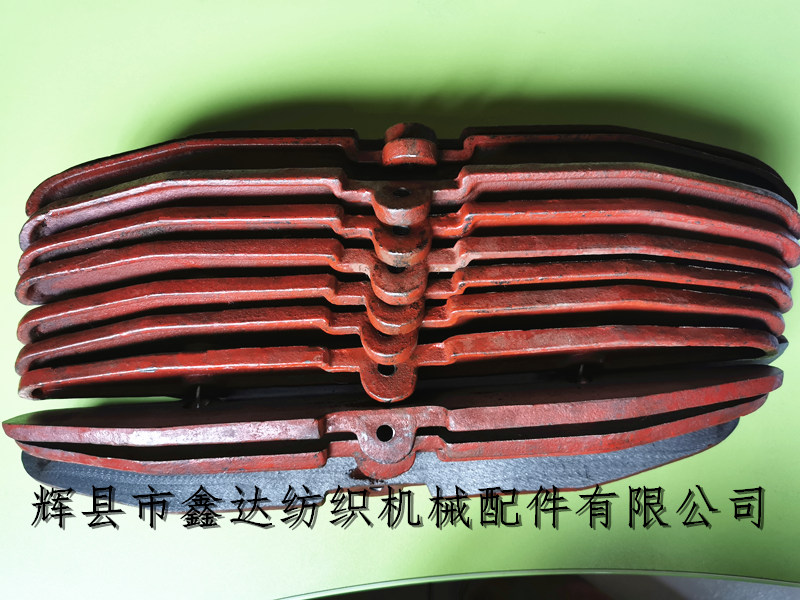

F44 loom accessories textile Check Strap Bottom Plate is made of nodular iron, color: red, total length: 343 mm, middle screw hole M8, connected with loom apron lug f00-2 and f00-3. It is a component of loom apron sliding box, which is commonly used in 1511 textile machine equipment. Buffer base plate,The weight of textile bottom plate for single apron is about 0.34 kg. Each loom has two lower ends of the reed frame, so each loom uses four textile floor accessories.
The apron bottom plate, Check Strap Bottom Plate,apron sliding box and bottom support foot used in weaving machinery constitute the buffer sliding device of shuttle throwing rod, which is referred to as sliding box for short. There should be a distance of 2 cm between F42 and F43 of 1511 apron sliding box, and 1.2 cm distance from F45 or F46 of base plate support foot.
The Check Strap Bottom Plate of 1511 loom is packed with 20 pieces in each string. Because the bottom plate of loom apron is under the downward pressure of buffer ring during working, it is a vulnerable part of small loom and needs regular inspection and replacement!
If you need to buy Textile apron base plate, loom accessories, loom apron accessories, old textile floor, f44 loom accessories, textile cushion apron base plate, please contact Xinda Textile accessories!
