Our company provides the supporting leg L6 of the change gear of weaving machinery parts all year round. The material is gray iron, which is installed on the wallboard P2 or 4302 of weaving machinery. The time gap for installing L00-6 (screw core) in the internal shaft hole is less than 0.4mm. The barrel height of the textile supporting leg L6 is 112mm, the diameter of the inner hole is 20mm, and the width of the fixed surface at the bottom is 48mm.
There are two oil holes on the back of the barrel for refueling and daily maintenance of L00-6 mandrel. The outer diameter of this position is 34mm. The weaving machinery foot of the weaving machine part change gear core is a common part of the loom and can be used for various door widths of 1511, 1515 and GA615 looms.
The inner width of the bottom fixing hole is 13mm, which is suitable for the fixing and installation of M12 carriage bolts. The weight of a single L6 is about 0.65kg. The winding part L6 of the old loom is used for the adjustment and fixation of the loom change gear (weft density wheel).

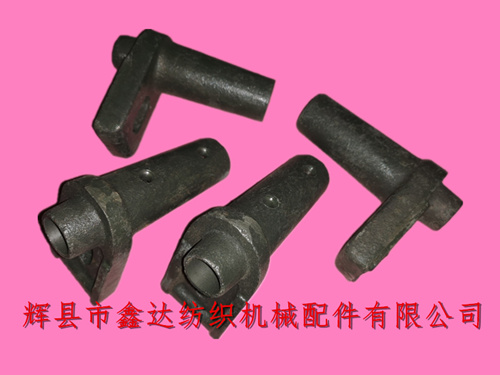

In the past, the textile foot was divided into left-hand car and right-hand car. The difference lies in the deviation of the oil hole. Now the oil hole has been processed to the front and back, which is simple and convenient to use. The above figure is the physical shooting of the supporting foot and mandrel.
Textile accessories L6, L4, L5, L7 and other coiling parts are common wearing parts, which need regular inspection and maintenance. Customers from all over the world are welcome to purchase mechanical parts, shuttle loom feet and shuttle loom accessories of Xinda loom.
