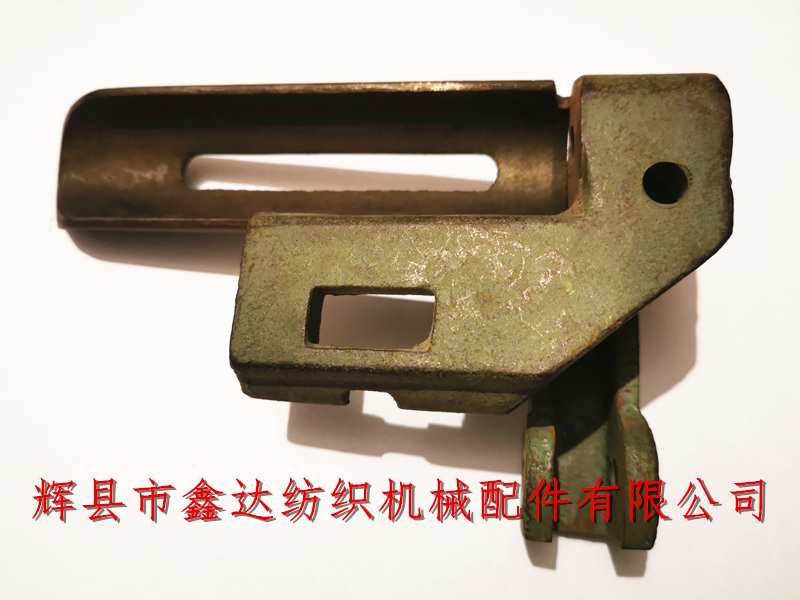

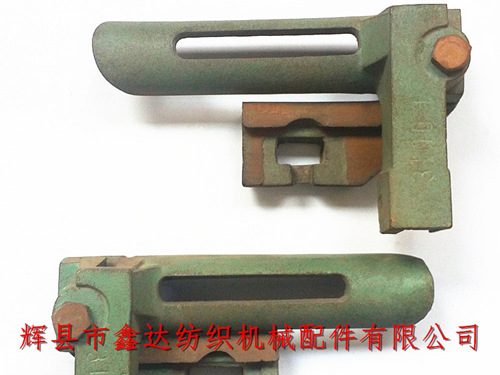

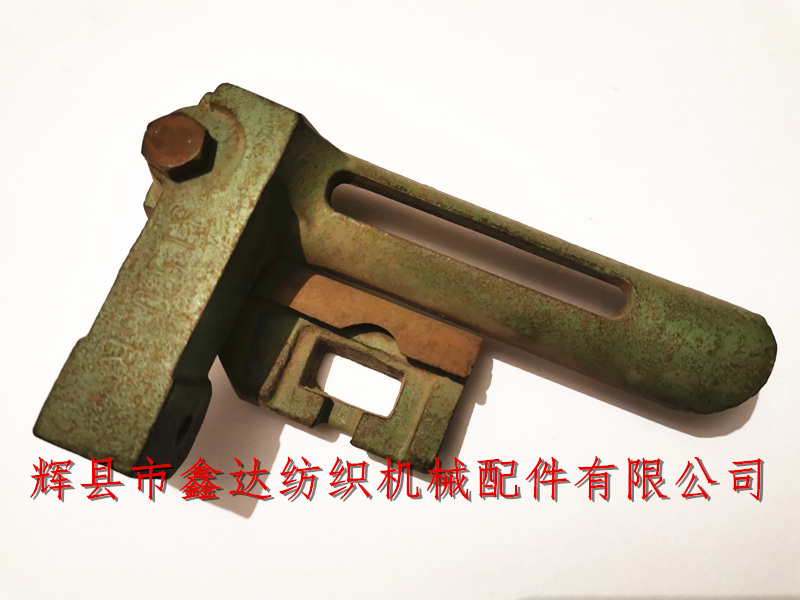

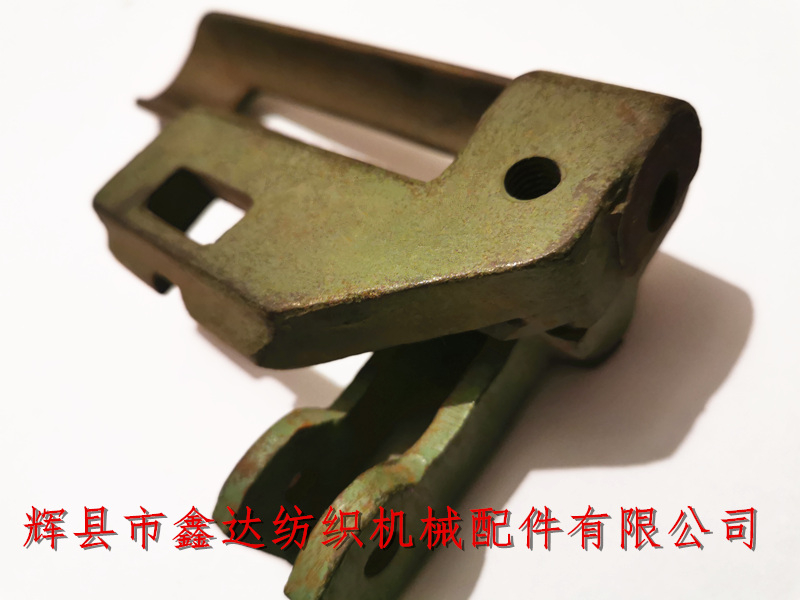

Our company provides 13 ring loom side support box accessories, 3909 is the extension seat (shuttle side), 3910 is the extension cover, 3913 is the switch side extension seat, 3914 is the switch side extension cover, the length of the side support seats 3909 and 3913 is 96mm, the width is 7.2cm; the length of the side support covers 3910 and 3914 is 159mm, 3910 fixed shear hammer with tail, the material is HT15-33 gray iron, suitable for the installation of 13 ring copper spindles 。
The abrasion depth of the connection between the groove of the loom extension box, loom extension base, 1515 extension base accessories and the t-screw L70 is less than 0.8mm. When the crank shaft is in the front dead center, the distance between the 13 ring edge support box base and the reed is 1.6mm, without touching the steel buckle, which can be checked and installed with a fixed gauge.
The fixing screw of the upper cover is M10, and the diameter of the hole on the side of the base (fixing the thorn shaft head) is 10 mm. There is no need to install a shear hammer on the switch side. The tail is short, and the through groove is convenient for checking the movement state of the thorn ring and cloth surface.
There are 10 sets of ring edge support boxes in each string, 1 set of switch side and 1 set of shuttle side edge support box on both sides of each loom, and the weight of each set is about 0.9kg. If you want to buy side support box, 13 ring side support box, loom extension bar accessories, you can consult our company details!
