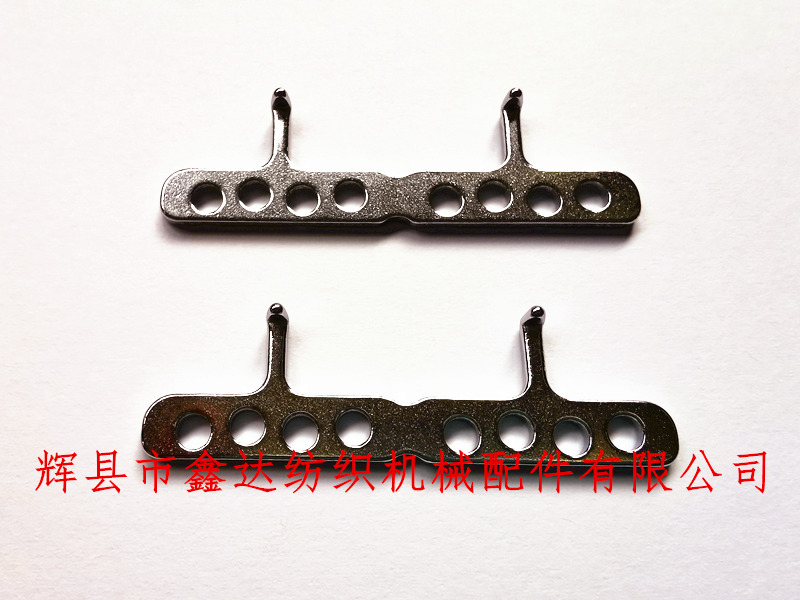

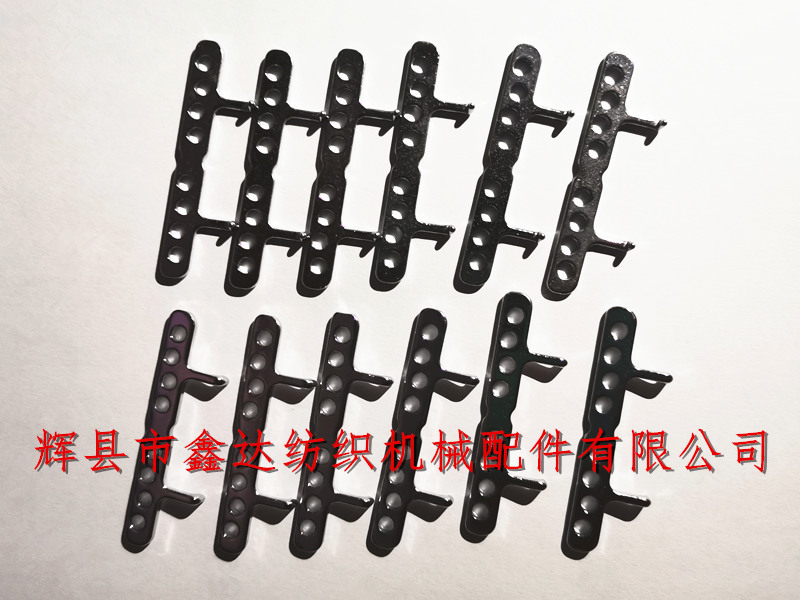

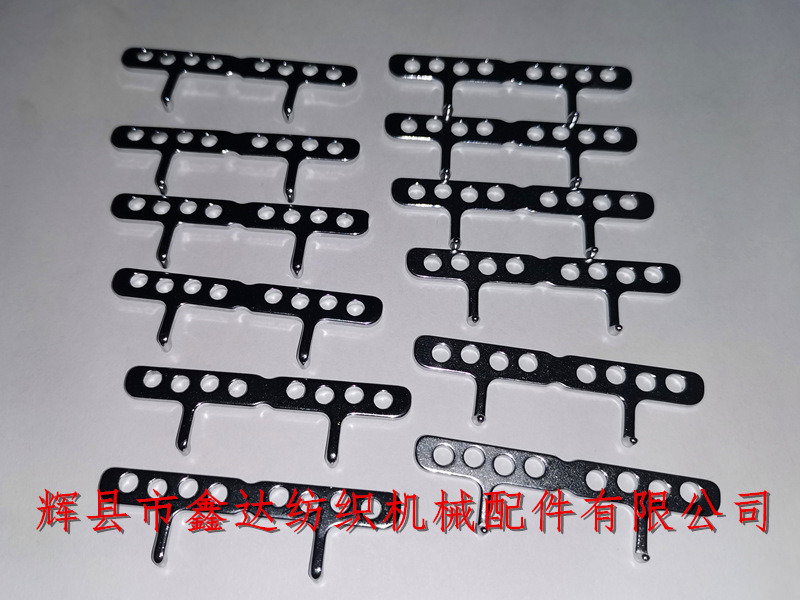

Huixian Xinda Textile accessories specializes in providing high-quality textile machine hardware accessories sm93 guide hook (Guide sword hook), the length of sm93 guide sword hook is 50mm, the width of 8 holes is 6mm, the thickness is 1.7mm, the total height is 14.7mm, the hook body width is 2mm, the hook width is 2.3mm, packaging: transparent bag, 200 pieces / bag, color: silver white, installed on sm93 rapier machine.
The guide hook of sm93 rapier machine is used to guide the rapier head to receive and send weft. The 8 holes are arranged in order with an aperture of 8mm. It is specialized in the development of textile hardware mold and wholesale of hardware guide hook for textile accessories.

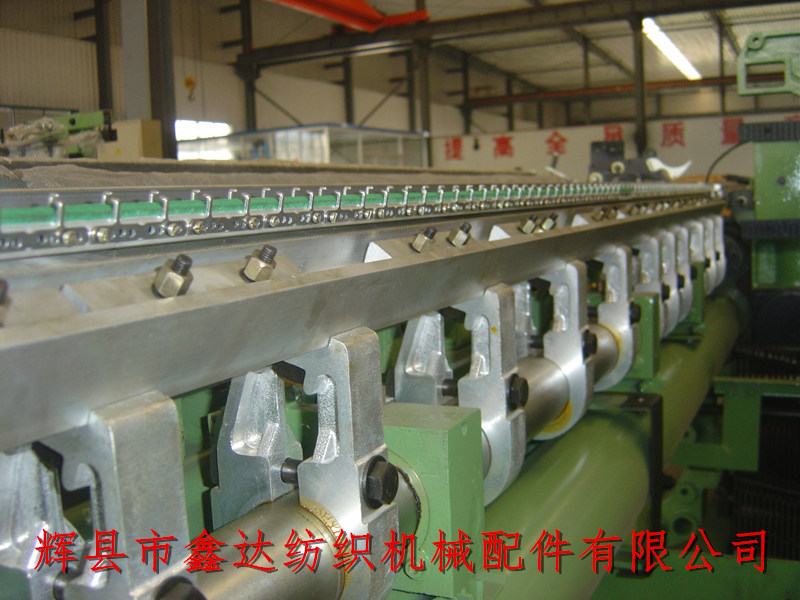

The installation drawing of the guide hook on the machine is as above. The installation length is the same as the door width of the machine. It is the hardware part of the high-speed rapier and the textile equipment part.

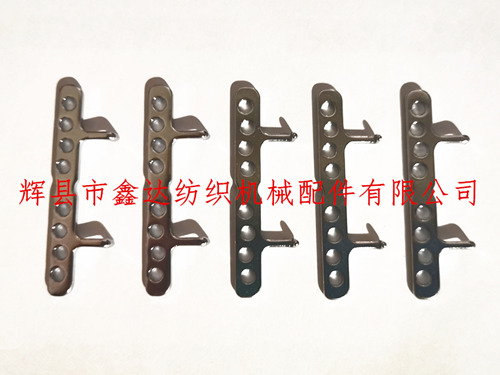

The guide teeth are divided into four holes and eight holes, with hook high scores of 13.5mm, 14.7mm and 17.2mm. Generally, the height of the four hole guide hook is 17.2mm, and the length of the eight hole hook is 4mm.
