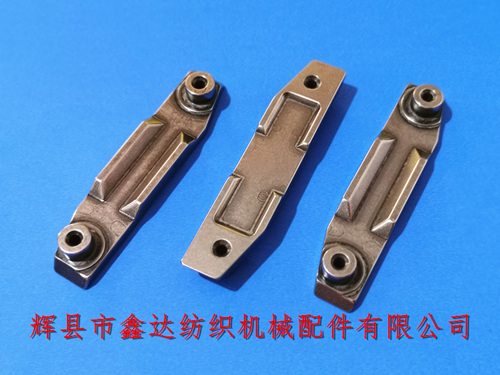

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides Sulzer Projectile Feeder Link textile accessories, including the connecting rod 911319506 for the gripper loom weft feeder. The external parameters of the connecting rod for the small steel parts of the gripper loom and the mixed weft feeder are as follows: the total length is 76mm, and both ends are in a 45 degree slope shape; Sulzer Textile Accessories - The outer width of the connecting rod in the middle of the weft conveyor is 16mm, the distance between the protruding two trapezoidal bottoms is 6mm, the width of the upper bottom is 2.3mm, the length is 23mm, and the total height of the connecting rod is 9mm. The height of the protruding circular table at both ends is 5mm, the outer diameter of the circular table is 9mm, and the diameter of the inner hole is 3mm.
As shown in the above figure, the depth of the groove on the back of the weft conveyor link is 1.5mm, the inner length of the rectangle is 43.5mm, the inner width is 8.5mm, and the length of the gap on both sides in the middle is 14.5mm.
There are various models of Sulzer gripper looms, and the use of weft gripper links is also different. There are significant differences in the appearance of P7100 monochrome weft gripper links (911 319 431, ES), mixed weft gripper links (911 319 429, MS), and TW11 gripper weft gripper links (911319506).
The English name for the weft feeder link is "Projectile Feeder Link" or "RH Sliding Piece". The weight of a single 911319506 weft feeder link is 32 grams, 1 piece per bag, and the minimum order quantity is 10 pieces.
The processing technology of Sulzer Pu, TW11, and P7100 Gripper loom accessories is mature, and the testing method is scientific and reliable. If textile enterprises and groups need to purchase Sulzer accessories, textile accessories, weft delivery links, Sulzer Parts Projectile Feeder Link,gripper accessories, and other products, please contact Mr. Yang of Xinda Textile Machinery Accessories for consultation. Foreign customers are welcome to consult and negotiate!
