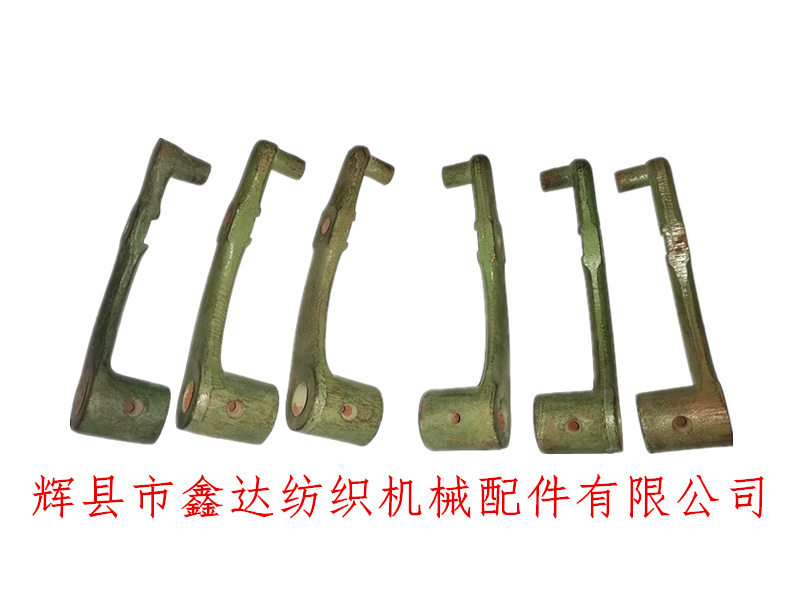

Our company provides the coiling and lifting hook bar of 1515 and GA615 looms all the year round. 1515 looms are connected with 3707 rotating bar, GA615 looms are connected with 6900-1. The material of 3712 coiling hook bar is ht15-32, the diameter of inner hole is 18mm, the center distance of hole is 132mm, and the diameter of card slot hole is 10mm. The products are divided into left hand and right hand. Each loom uses one piece.

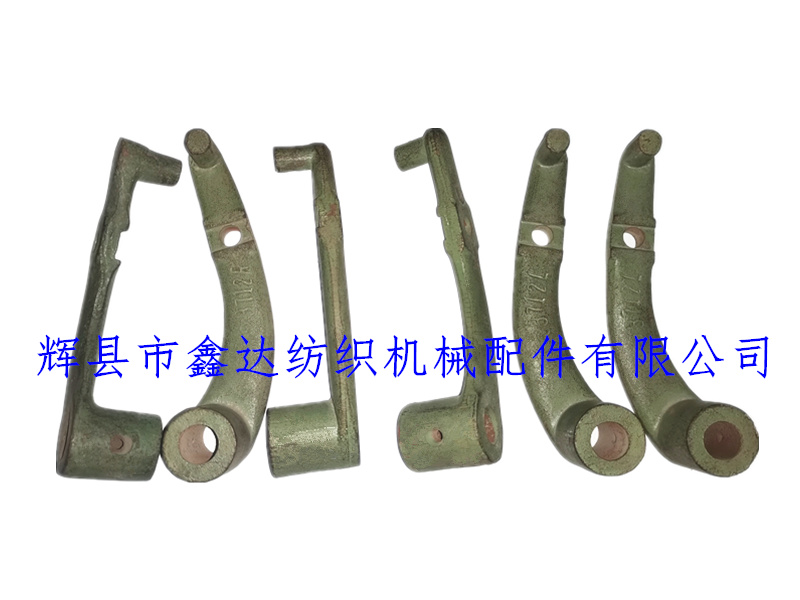

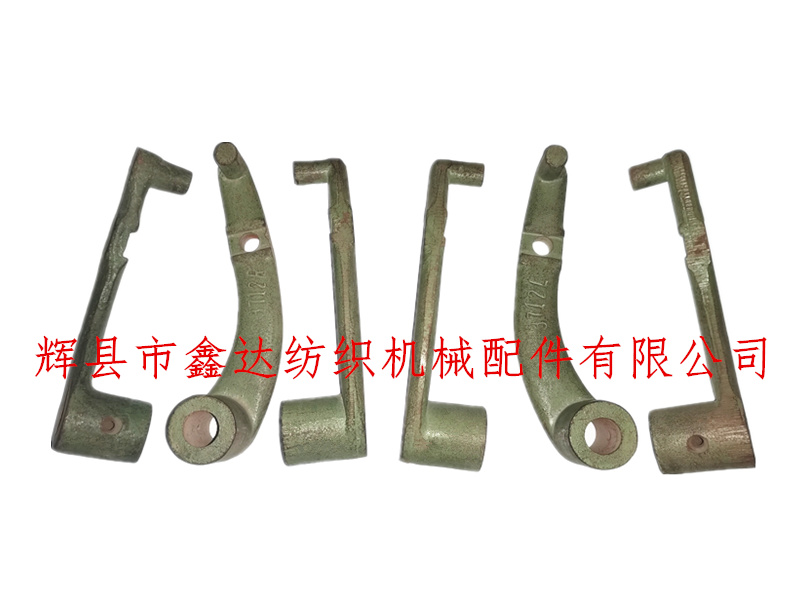

As shown in the figure above, the R written on the 3712 winch lifting hook bar is the right hand, the L written on it is the left hand, and there is a refueling hole outside the hole diameter。
The whole accessories are arc-shaped, and the left and right hands can be identified according to the direction of the bow. The square hook L68 (inner hole 9mm, with 8-point thread, length 28mm) is installed at the clamping groove. The installation steps of the coiling parts of the old-fashioned loom shall be strictly in accordance with the operation manual of the preservation worker.
Grasp the bridge gear L10 and turn it backward, so that the square hook L68 can be propped into the teeth of the serrated wheel, and then turn the bending shaft from the back dead center to the front 45 ° of the upper center. The reed is 165mm away from the inner side of the chest beam. Visually, the square hook L68 should just fall from the tooth top of the saw gear. The above is the installation steps and requirements of 3712 and L68. Weaving machine take-up hook rod manufacturer, take-up accessories processing, 1515 accessories wholesale price - Huixian Xinda Textile Machinery Accessories Co., Ltd.
