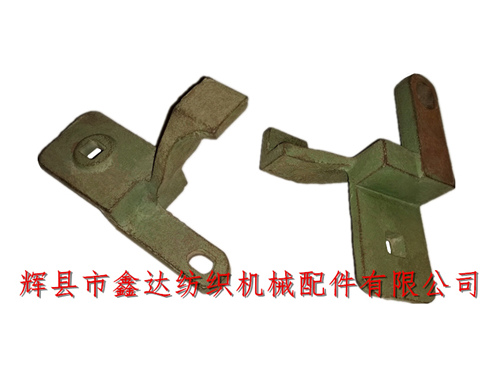

Xinda Textile machinery provides shuttle box cover plate and control wood bracket (types 1511 and 1515) of K28 accessories of old loom all the year round. The material is gray pig iron, which is connected with 3222 or Q1 reed frame wood of old loom. The angle between shuttle box cover plate and control wood bracket K28 and shuttle box base plate K15 or 3308 is 86 ? °, and the allowable difference is ± 0.1mm (check with fixed gauge and micrometer, only more than 86.5 °), and the rear side of shuttle box base plate The gap is less than 0.2mm.
Technical requirements: k30y safety spring rod is connected with k40x, the left and right lateral movement of safety spring rod on the bolt K40 of spring rod is less than 0.4mm, and the spring rod K30 can fall automatically when lifted by hand.

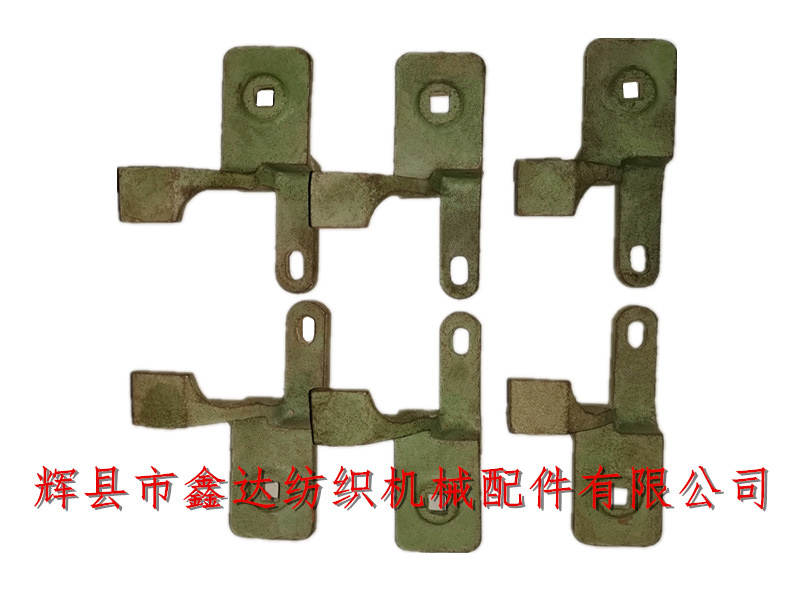

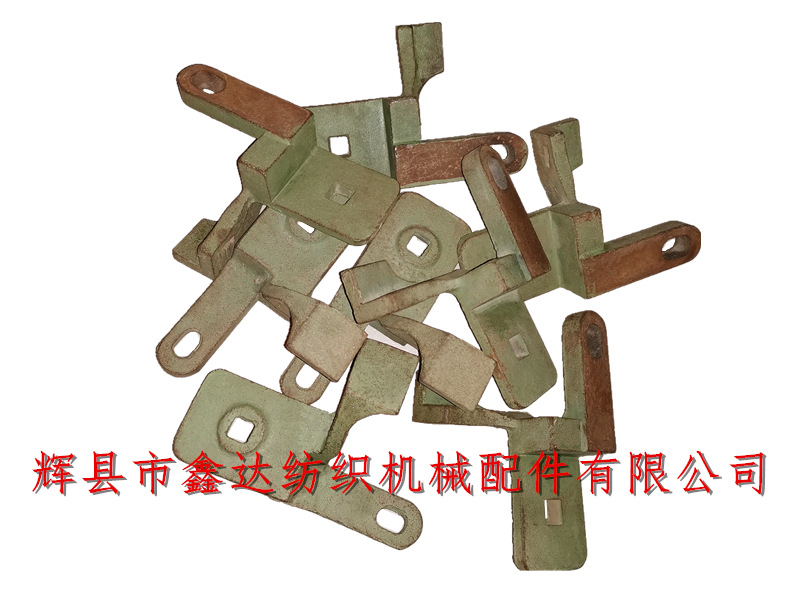

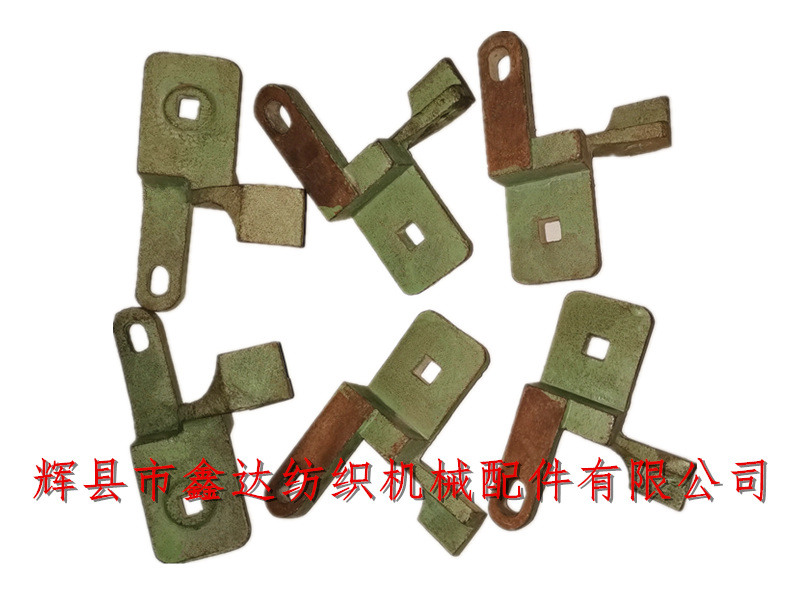

K28c type shuttle box cover plate and control wood bracket are divided into left hand and right hand. The distance between two holes on the same plane is 106mm, which is in the shape of "Y" as a whole. It is a cast iron part of textile machinery, an old loom part, and a shuttle replacement part of old loom.
Each string has 5 left and 5 right sides, 10 pieces in total, and the weight of a single accessory is about 0.7kg. Each loom only uses 1 piece, which is installed on the shuttle changing side of the old loom. If you need to purchase Xinda shuttle box control parts and Xinda old loom parts, please contact our company for detailed parameters.
