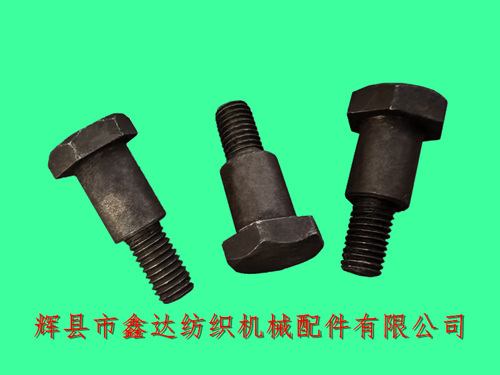

Huixian city Xinda Textile Machinery Accessories Co., Ltd. provides GA615 loom accessories -G1515 mandrel 41118 pin for guide pin of let-off adjusting rod, and the parameters and dimensions of hexagonal mandrel screw: total length is 37mm, width of hexagonal pair plane is 17mm, diagonal width is 19.2mm, and thickness is 5mm；; The diameter of the optical axis is 12mm, the length is 17mm, the front screw is M8, and the length is 15mm.
The guide pin of the let-off adjusting lever of GA615 loom is borrowed from G1515-4107, and its guide groove and outer planes on both sides are polished, and 41118 mandrel and 41117 nylon sleeve are installed in the guide groove (see the figure below).
This part belongs to GA615 let-off loom, and it is not used in the let-off loom. They are installed under the machine and connected with the flat iron to control the supporting action of the serrated wheel according to the rotation of the machine.
The weight of a single 41118 mandrel is about 30 grams, and the packaging is self-sealed bags, with 50 pieces in each bag; The following figure shows the structural assembly of GA615 let-off guide pin:
If you need to purchase accessories of GA615 loom-mandrel 41118,Mandrel,Spindle,Pin Roll,Loom Parts,Let-off Part,GA615 parts,1515 loom mandrel,1511 loom mandrel,shuttle loom accessories and other GA615 let-off accessories, you can contact Mr. Yang of our company for consultation. We sincerely welcome your visit.
