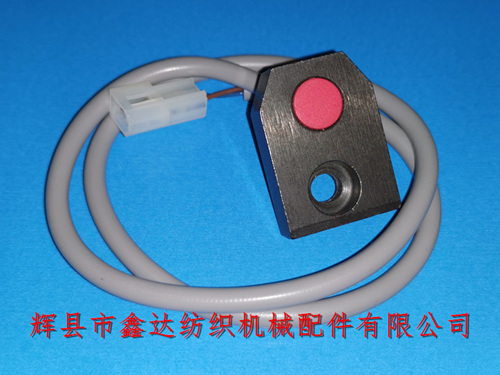

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides Sulzer gripper sensor 910001530 P7100 loom accessories. The overall dimensions of D1 sensor are: length 35mm, total width 25mm, upper width 16mm, total thickness 10.4mm, sensor probe (red part) diameter 10.5mm, bottom hole inner diameter 7mm, upper inner diameter 11mm, and depth 5.7mm. The English name of 910 001 530 sensor is Sensing Head, which is applicable to D1 Sulzer projectile loom.
The length of the two core wires at the rear of the sensor is 48 centimeters, the tail handle is a male plug, the length of the plug is 20mm, the width at the front is 11.5mm, and the thickness is 7.2mm. The corresponding part number for the Gripper Shuttle Sensor (TSN) C4B55 gripper loom is 911 328 097911 328 019911 328 098.
The weight of a single Sulzer sensor (910 001 530) is 68 grams. The above image shows the side view of the sensor, and the following image shows the back view of the sensor:
The packaging of P7100 loom accessories and Sulzer sensor components - D1 type sensors is in transparent bags (as shown in the figure below), with a minimum order quantity of 10 pieces per bag and a delivery time of 5-8 days.
If foreign customers at all levels need to purchase textile sensors, D1 Projectile Loom Accessories, Gripper Loom accessories, P7100 Spare Parts and other products, or for detailed product parameters, please contact Mr. Yang of our company for consultation!
