Huixian Xinda Textile Machinery Parts Co., Ltd. provides 51 teeth shuttle change gears | weaving machine weft density wheels | PU spur gear accessories, P7100 projectile machine weft density change gears (Weft density change gears,Weft Change Wheel), with a tooth count of 51T, i.e. Z=51, an outer diameter of 132mm, and a modulus of 132 ÷ (51+2)=2.5, which means the modulus of this gear is 2.5, the total thickness of the gear is 20mm, and the weight of a single change wheel is about 1KG.

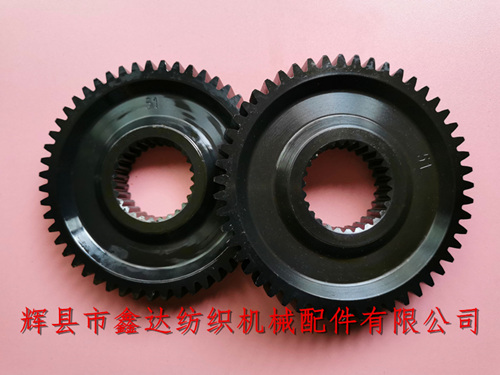

The above figure is a top view of the front and side elevations of the 51 tooth weft dense wheel(Weft Change Wheel). The surface of the gear is treated with black phosphating, and the number of teeth in the middle spline is 27. The inner length of the keyway hole is 45.5mm, and the tooth width of the gear is shown in the following figure.
The Chinese name for the P7100/PU Sulzer Loom Parts weaving machine accessory - weft dense gear is "緯密輪", and the part number of the 51 tooth weft dense gear is 911-110-419. It belongs to the sending and winding components of the Sulzer shuttle machine, and the range of teeth for the change gear is 14T-55T;
The common teeth and corresponding part numbers for changing gears are: 911-110-423 (14 teeth), 911-110-424 (23 teeth), 911-110-412 (26 teeth), 911 110 413 (34 teeth), 911-110-422 (37 teeth), 911 110 414 (38 teeth), 911 110 415 (42 teeth), 911-110-416 (46 teeth), 911-110-417 (49 teeth), 911-110-418 (50 teeth), 911-110-420 (52 teeth), in addition to 54 teeth and 55 teeth.
The above figure shows a comparison between 51 teeth and 42 teeth, with the same inner hole diameter, modulus, and thickness, but different outer diameters; If you need to purchase 51 tooth shuttle changing gears, weaving machine weft density wheels, PU spur gear accessories, and other products such as weaving Gripper Loom machine weft density wheels, Sulzer loom accessories, projectile Loom machine changing gears, weaving machine spur gears, etc., you can contact Mr. Yang from our company for consultation. Welcome!
