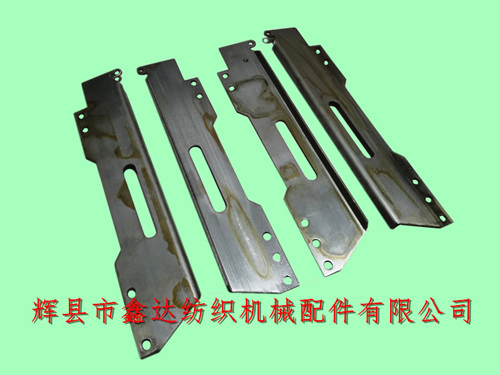

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides 1515 multi shuttle loom accessories. Shuttle Box Cover,Shuttle Box Top Guard,Multi Shuttle Loom,The multi shuttle box cover plate 8125 (type A). The shuttle box of the old wide multi shuttle loom is composed of a cover plate 8125 (single chute) and a bottom plate 8124 (double chute). They are suitable for type A 1515 loom. The total length of the 8125 multi shuttle box cover plate is 36.8cm, the main width of the cover plate is 70mm, the middle width is 59mm, the inner width of the chute is 15mm, and the material is steel plate, Its thickness is 3mm, and the inner diameter of 5 holes on one side is 8.7mm.
The A-type multi shuttle box steel plate 8125 is connected with the inner shuttle box sizing block 8126 and the outer shuttle box sizing block 8127. The weight of a single textile cover plate is about 0.5kg, and the shape is knife shaped. The number of pieces used in each loom is 4, and the processing process adopts stamping and bending forming. The part number of A-type old 1515 multi shuttle parts generally starts with 8, which is very different from the conventional multi shuttle devices starting with a, B and C, but the principle is basically the same.
1515 textile machine equipment includes A-type, K-type and other models. Their development order is in alphabetical order. Compared with different fabrics, the use effect is basically the same. The cover plate of the multi shuttle box is installed on the upper part of the multi shuttle box of the loom, and the bottom plate of the shuttle box is installed below, which forms a multi-layer multi shuttle box.
If textile manufacturers need to purchase 8125 multi shuttle box cover plate, 1515 multi shuttle accessories, 56 inch multi shuttle cover plate, 1515 loom shuttle box cover plate and other accessories, please contact Mr. Yang of Xinda Textile machinery accessories. 1515 multi shuttle loom accessories multi shuttle box cover plate 8125 (type A) is less and less used in the market, and the supply has decreased, but it can be mass-produced and customized.
