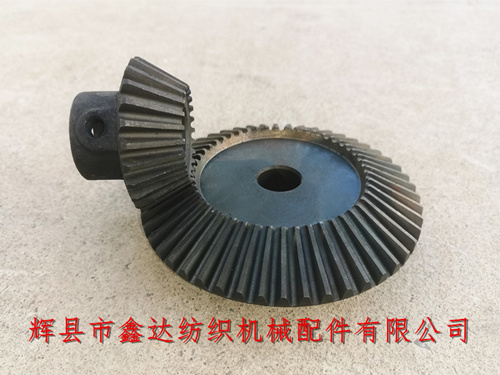

Huixian Xinda Textile Machinery Parts Co., Ltd. provides 24/50 tooth umbrella gear milling teeth inner sending accessories 1511/1515,24T/50T Internal Transmission Accessories. B37 is the driving wheel, and the commonly used teeth are 30 teeth. This model has 24 teeth, with an inner hole diameter of 24mm and a total height of 50mm. The outer diameter of the conical umbrella teeth above is 71mm, and the outer diameter of the circular cone below is 41.5mm.
The two bevel gears in the above figure have 24 teeth (B37) and 50 teeth (B36), respectively. The inner diameter of the 50T bevel gear is 22mm, the outer diameter of the circular cone of the support screw (M10) is 45mm, the total height of the B36 bevel gear is 41mm, the outer diameter of the tapered bevel teeth is 143mm, and the length of the tapered teeth is 33mm.
B36 and B37 are umbrella gears for weaving machines, which are internal warp feeding components for shuttle weaving machines. They are suitable for 1511 and 1515 models of internal warp feeding looms, and each loom can be used in one set. They come in various sizes: 30/30 teeth, 20/40 teeth, 20/32 teeth (canvas wheels), 24/50 teeth. Two dual bevel gears are installed on the loom, with their shaft holes forming a 90 degree right angle.
Textile customers in various cities across the country who need to purchase 24/50 tooth umbrella gear milling inner warp delivery accessories 1511/1515, weaving umbrella gear, warp delivery, inner warp delivery, weaving machine accessories products, please contact our company's Manager Yang for more information.
