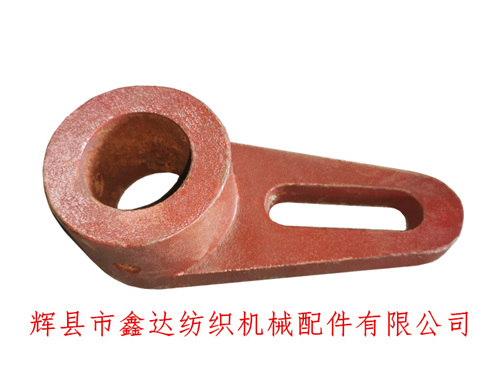

Huixian Xinda Textile Machinery Parts Co., Ltd. provides 1511/1515 Multi Arm Accessory T38 Crank Foot. The T38 crank is installed on the tread shaft 3301 or T59 connecting plate of the weaving machine, with a circular hole diameter of 42mm. The groove is equipped with a T39 crank core, and the other end of the core is fixed on the lower cross joint T51.
The material of the T38 crank is ductile iron (short for ductile iron), and the quantity used on each multi arm loom is one. The product is not divided into left and right hands, and is fixed on the pedal shaft by two M14 * 25 support bolts (1511 type is installed on the T59 connecting plate and connected to the F8 shuttle plate for fixation).
Installation requirements for loom foot-T38 crank: When the multi arm loom is flat, the crankshaft should be in a horizontal state, and the center position of the crank and crank core T39 should be 100mm.
If you need to purchase 1511, 1515 multi arm accessories, cranks, weaving machine accessories, 1515, foot support products, please contact Mr. Yang from our company for consultation.
