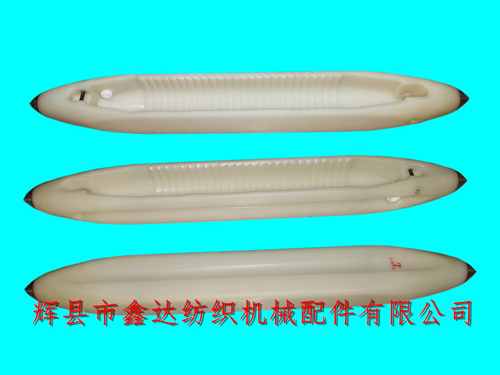

Huixian Xinda Textile Machinery Accessories Long term Supply of Loom Shuttles_ J211 linen loom nylon shuttle_ The general type of sack shuttle is 395mm long, 45mm wide outside the shuttle bottom and 43mm wide at the top. The included angle between the nylon shuttle and the plane of the shuttle bottom is 86.5 degrees, and the total height is 35mm. As the weft yarn used in the sack is thick, the white aluminum oxide ceramic eye with an outer diameter of 10mm and an inner diameter of 5.5mm is selected as the porcelain eye. The outer ring diameter is 11.5mm. The hemp loom shuttle is divided into left hand shuttle and right hand shuttle.
The ceramic eye of the hemp loom shuttle is installed by pressing with tight fit without glue. The inner width of the front cover plate is 12.5mm, the diameter of the steel pin is 2.7mm, and the upper and lower clearance reserved between the steel pin and the front of the shuttle iron cover plate is 2.2mm. There are many kinds of shuttle for textile equipment, which can meet the production of fabric products for different purposes. The shuttle of J211 textile equipment linen loom can be divided into wooden shuttle and nylon shuttle according to the material, and can be divided into 395mm, 400mm, 430mm, etc. according to the length.
J211 nylon sack shuttle_ Textile nylon shuttle_ Loom shuttle J211 gunny bag loom is a common model on the market at present. The inner cavity width of the gunny bag nylon shuttle is 30mm (subject to the available width of the inner cavity after weft assembly). The shuttle tip of the shuttle is designed to be detachable. The shuttle of the loom_ J211 linen loom nylon shuttle_ Packaging method of gunny bag shuttle: carton, 50 pieces for each box, all of which belong to one hand (i.e. left hand or right hand).
The weight of a single J211 sack shuttle is about 0.4KG (without iron cover plate), and the depth of the notch on the inner wall of the shuttle chamber is about 1.6mm. If you need to purchase J211 shuttle, sack shuttle, nylon shuttle, hemp loom shuttle and other products, please contact Mr. Yang of our company for discussion. Welcome to cooperate!
