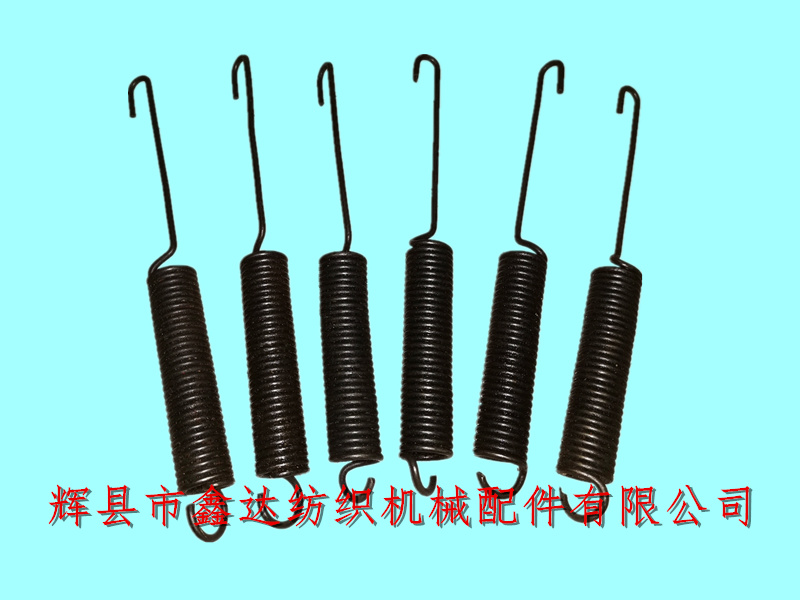

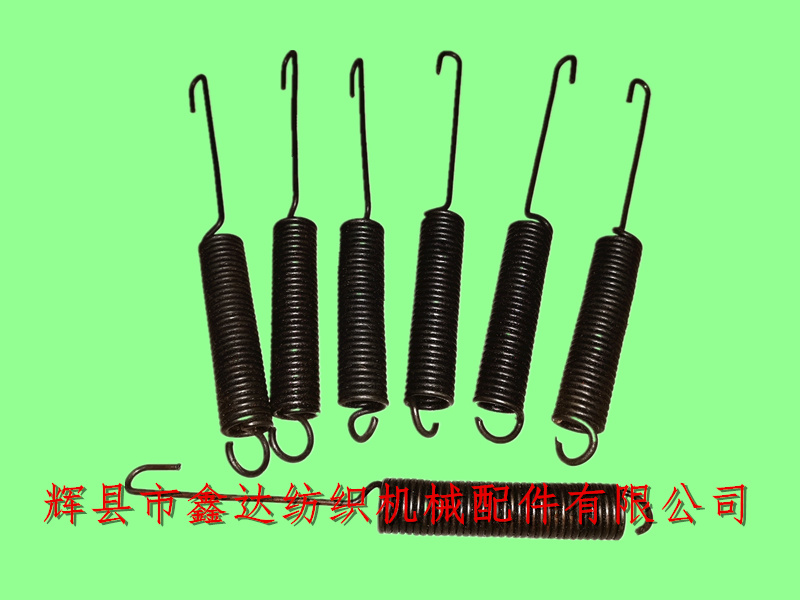

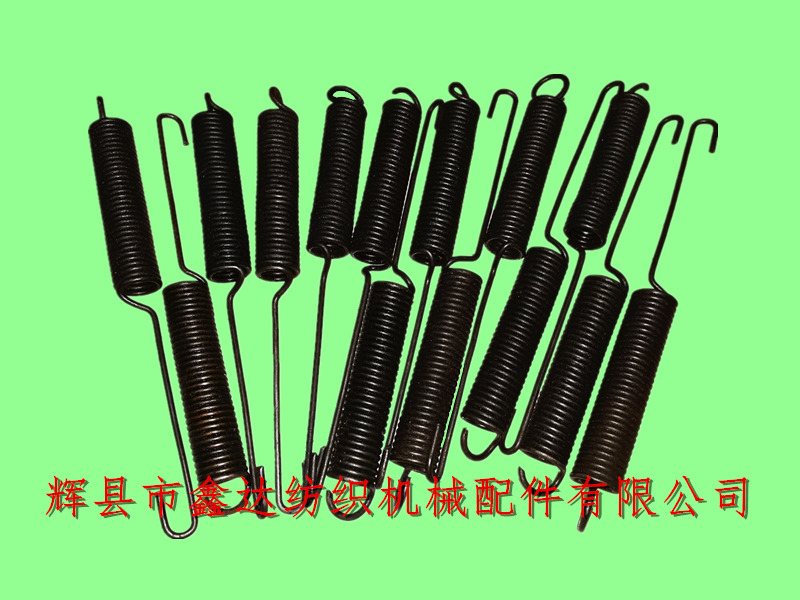

Huixian Xinda Textile machinery accessories provides general accessories for C38 loom actuator rod spring shuttle machine.Brake Lever Spring,Loom General Parts,Loom Parts,C38 Brake Lever Spring Loom General Parts, The loom spring C38 is processed with spring steel wire with a diameter of 3.5mm. The total length is 26cm, the spring body length is 108mm, the outer diameter is 25mm, a total of 31 turns. The inner width of the hook in front of the brake rod tension spring of C38 loom is 11mm, and the weight of a single C38 shuttle spring is about 0.17kg.
1511/1515/GA615 general loom spring, shuttle tension spring-C38 belongs to shuttle accessories, which is used for brake rod tension adjustment and reset. The quantity used for each loom is 1. 1511 loom is connected with C9 sector brake rod and C12 adjusting hammer rod hanging feet. Its packing specification: 100 pieces/bag, with a minimum order of 10 pieces.

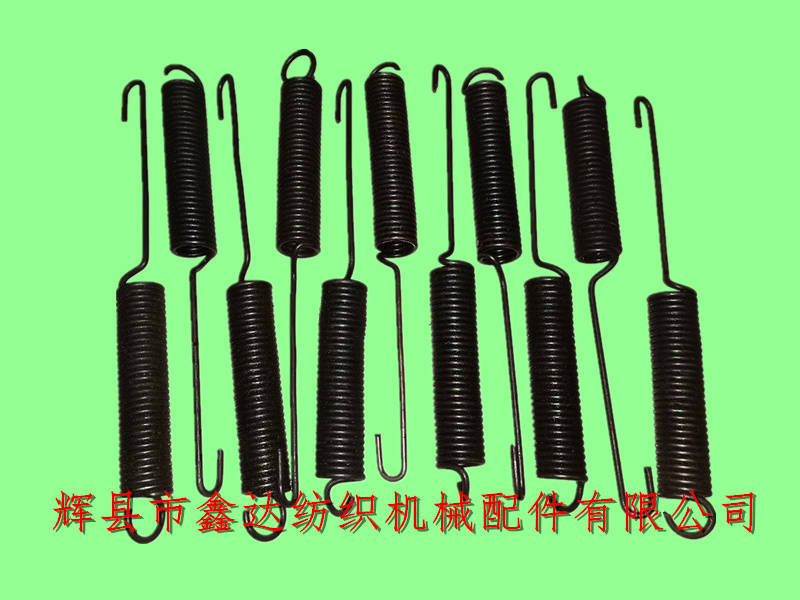

Due to the problem of shooting distance and angle, the effect of C38 tension spring in the above figure seems to be small, which is almost the same as that of K57 reed clamp spring; Part C of loom is used for tension adjustment. The brake rod (C9) spring is not divided into left hand and right hand, and the spring body has good elasticity and toughness.
The tension of brake spring C38 is too small, and the tension braking effect is poor during weft beating, which will cause poor self-locking of let off, which is easy to produce thin path and cloud weaving defects. Therefore, it is necessary to pay attention to whether the assembly position is correct during installation. There are thousands of types of textile tension spring, textile spring and loom tension spring, and the application scenes of old shuttle machine accessories are more extensive.
If textile manufacturers need to purchase 1511 loom spring, 1515 shuttle tension spring, Brake Lever Spring,Loom General Parts,Loom Parts, GA615 shuttle accessories and brake rod accessories, please contact Mr. Yang of Xinda Textile machinery accessories company to discuss cooperation matters. Welcome new and old customers at home and abroad to consult!
