The appearance of loom corner joint B48 (stop Device Parts) is in the shape of right angle L. the external dimension is 55mm long, 48mm wide and 28.5mm high. The large hole fixes the B52 corner joint core, and the small hole is connected with the vertical rod of I00-1 switch. One piece is used for each loom. It is a loom stop device accessory, which is suitable for old-fashioned traditional shuttle looms of models 1511, 1515k and GA615.

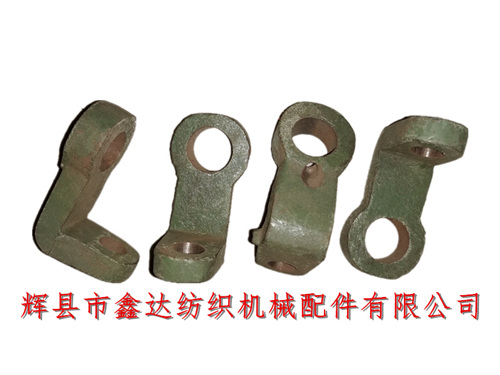

The diameter of the large hole of the angle ruler joint is 16mm, there is a refueling hole on the side, the inner diameter of the small hole is 10mm, and the single weight is 0.05kg. The above figure shows the multi angle view of the angle ruler joint B48 of the loom. Due to the slow production and processing speed, the price of small textile cast iron parts is out of proportion to the weight.
The general accessories of the loom include hundreds of kinds of cast iron parts. Their common point is that they do not involve the door width of the loom. They are applied to various parts such as heald treading parts, shuttle throwing parts, switching devices, automatic shuttle change, induction devices, weft break stop, warp break stop and so on.
