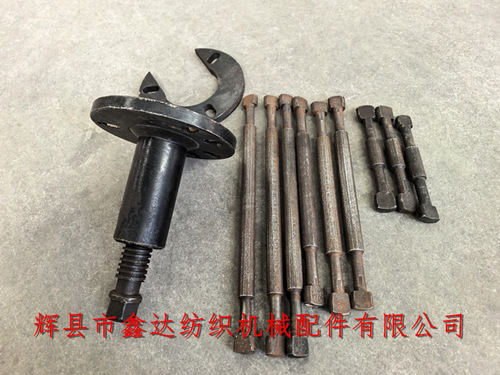

Huixian Xinda Textile Machinery Parts Co., Ltd. provides Wheel Puller E-8-01C For Loom Crankshaft Repair, textile hardware and tools - Upper Wheel Puller 1511M-E-8-01C for repairing weaving machine crankshafts. Pullers for weaving machines are divided into upper and Lower pullers. This puller (8-01) is mainly used to remove the bending gear (1511-D71515-3210, GA615-0200-2) and brake wheel (1511-F2161515-4118) of the weaving machine. Textile wheel puller is a weaving machine tool kit used for weaving machine maintenance, which can facilitate the removal of gears and brake discs on the loom crankshaft during maintenance.

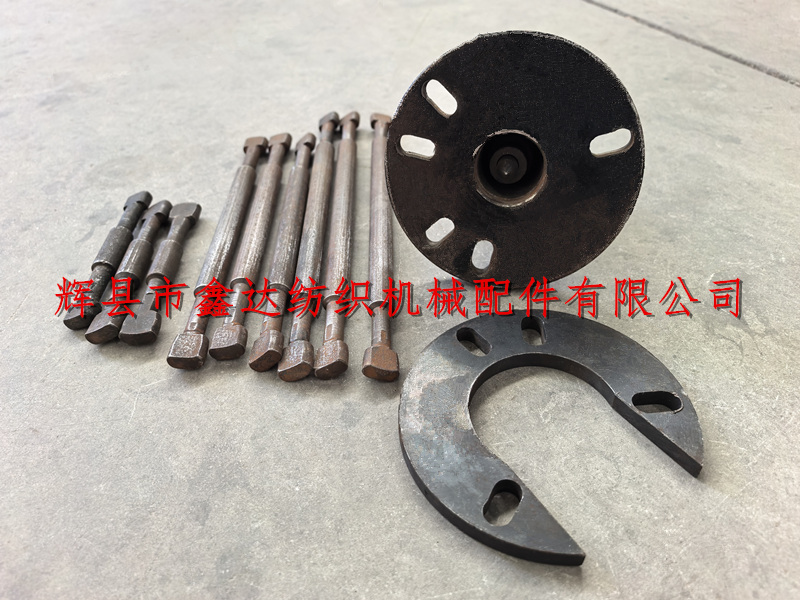

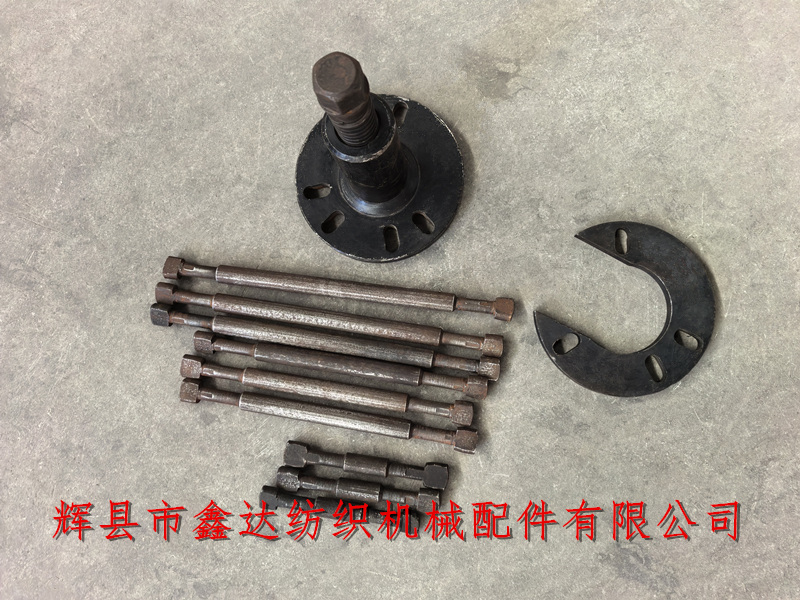

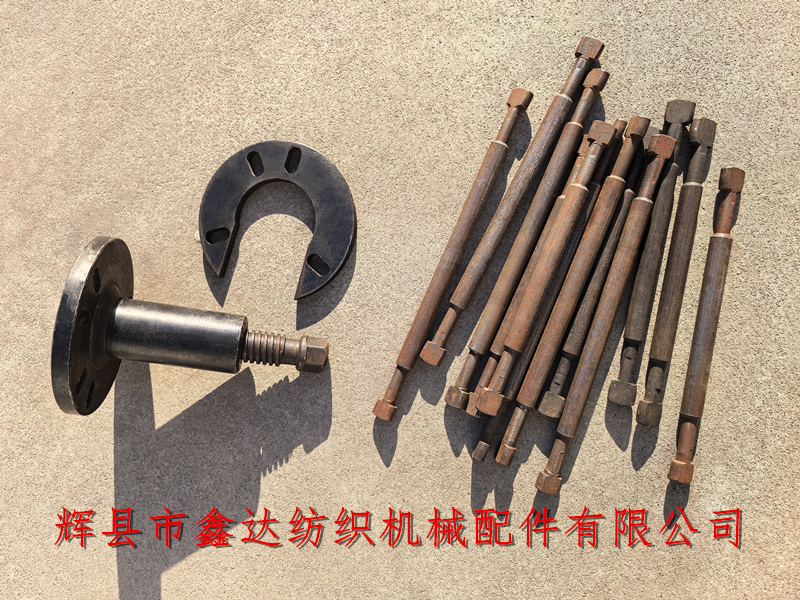

The above figure shows the set of components for 8-01C, including the main part, chuck, and pull rod (3 long, 3 medium, and 3 short) of the wheel puller, which can be used for pulling wheels of different lengths and positions. The holes on the main part match those on the chuck.1515 Loom Puller,GA615 Wheel Puller,Loom Repair Tool,Crankshaft Repair Tool.
The chuck is mainly used to rotate and clamp the inside of the gear after the pull rod passes through the hole, and rotate the screw with a wrench to make the gear move synchronously to the outside along with the screw. The inner diameter of the main component when inserted into the bending shaft head position is 40mm (as shown in the upper right corner of the above figure).
If you need to purchase wheel pullers 1511M-E-8-01C, 1515 wheel pullers, GA615 loom maintenance, G1515 loom tools,Wheel Puller E-8-01C For Crankshaft Repair and textile crankshaft maintenance tools, please contact Mr. Yang from our company for consultation. Welcome everyone to visit.
