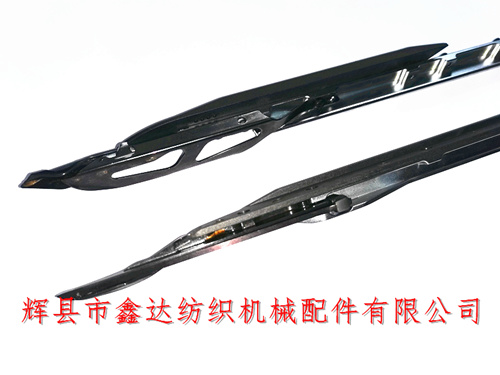

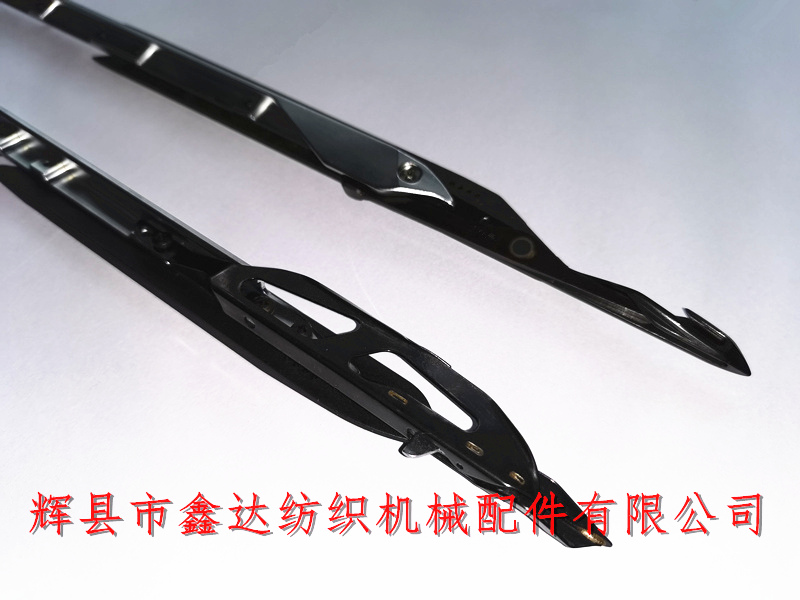

Huixian Xinda Textile machinery accessories provide Gama 2002 weft feeding rapier head and weft connecting rapier accessories.Gama 2002 Release Gripper and Carrier Gripper,Gama rapier head is mainly used in large rapier looms. It is composed of weft feeding rapier shell, weft connecting shell, bottom plate, yarn clamping piece, weft connecting hook, weft connecting rod and other accessories. The bottom plate of Belgium Gama rapier head is divided into single side and double sides, which is suitable for changing the large rapier accessories 731 loom to Gama rapier head.

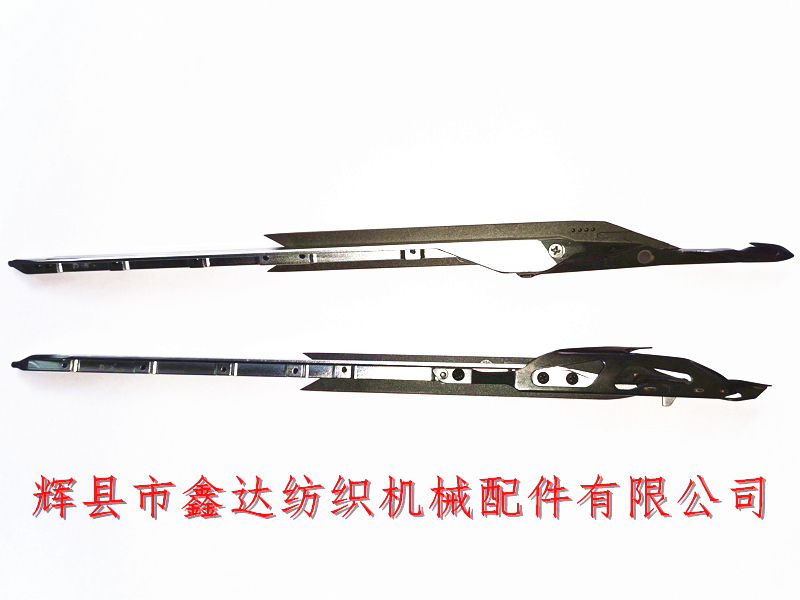

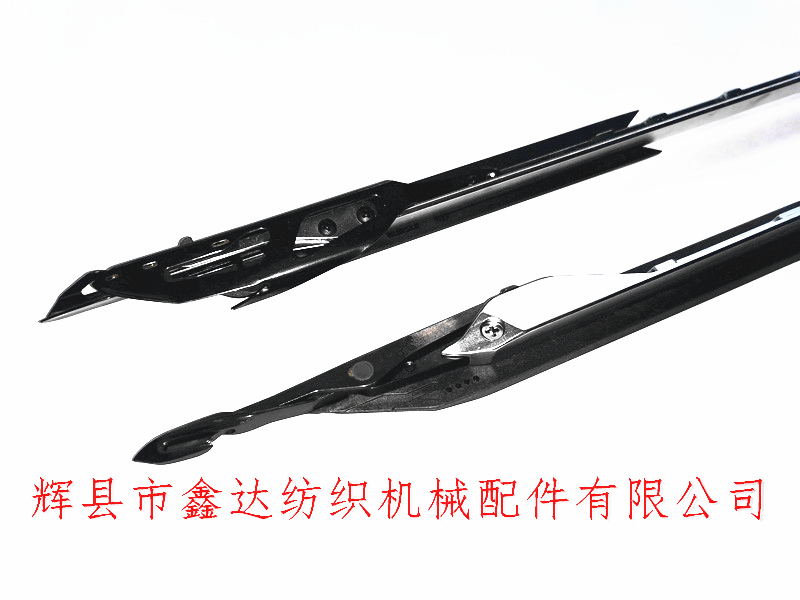

In the figure above, weft insertion rapier head and weft feeding rapier head are respectively installed on the right and left sides of rapier machine. Each loom uses one pair (one set for weft insertion and one set for weft feeding). There are many kinds of textile rapier heads, such as sulsulsuluti rapier heads, donier rapier heads, Tianma rapier heads and alpha rapier rapier heads. Gama 2002 Release Gripper and Carrier Gripper,They are used for weft insertion and weft transport on looms, so as to meet the requirements of pulling weft of different materials during weaving. Different rapier structures are selected according to different loom speeds.
Textile Gama rapier head, weft feeding rapier head, GAMMA rapier head accessories and other products are widely used in rapier looms. Different types of rapier machines can also use this type of rapier head combination after modification.

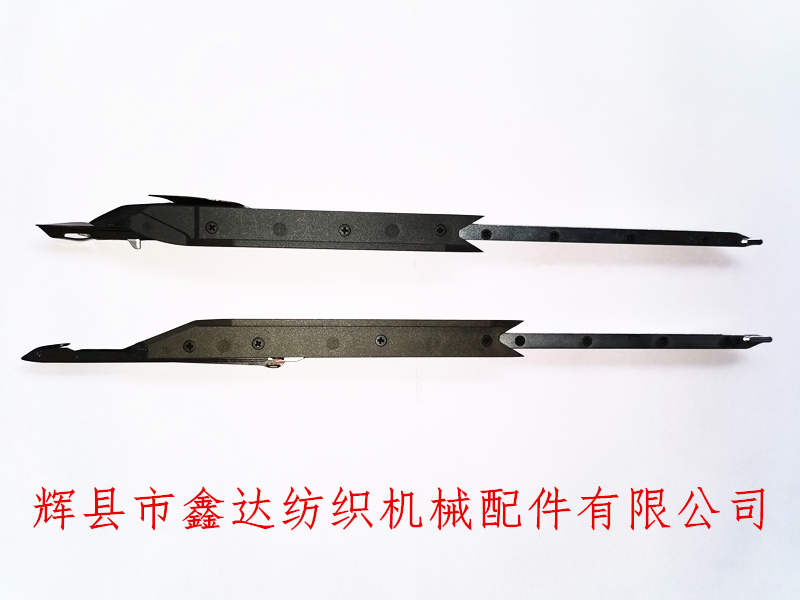

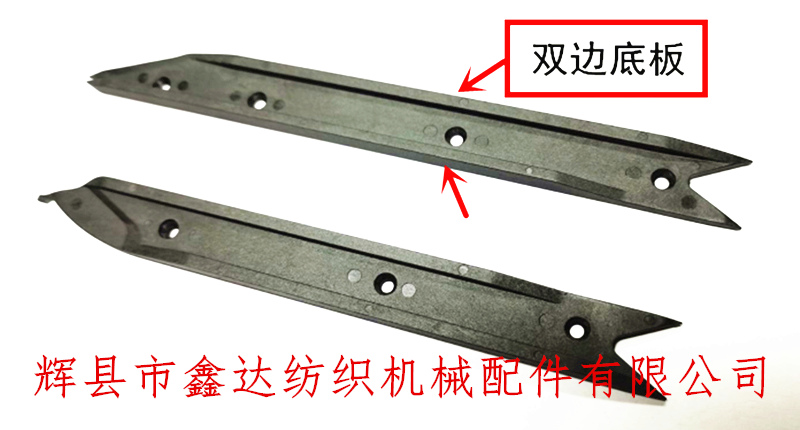

The picture above shows the bottom plate picture of Gama weft sending sword and weft connecting sword. The single side bottom plate is used, and the bilateral bottom plate is shown in the following figure:
The packaging of Gama rapier head is plastic box, each box contains one pair of rapier head (rapier head and rapier head). There are various kinds of textile accessories in weaving industry, including domestic accessories and imported loom accessories.Gama 2002 Release Gripper and Carrier Gripper, If textile enterprises and trading companies need to purchase Gama 2002 weft sending rapier head and weft connecting rapier accessories, please contact our company for consultation.
