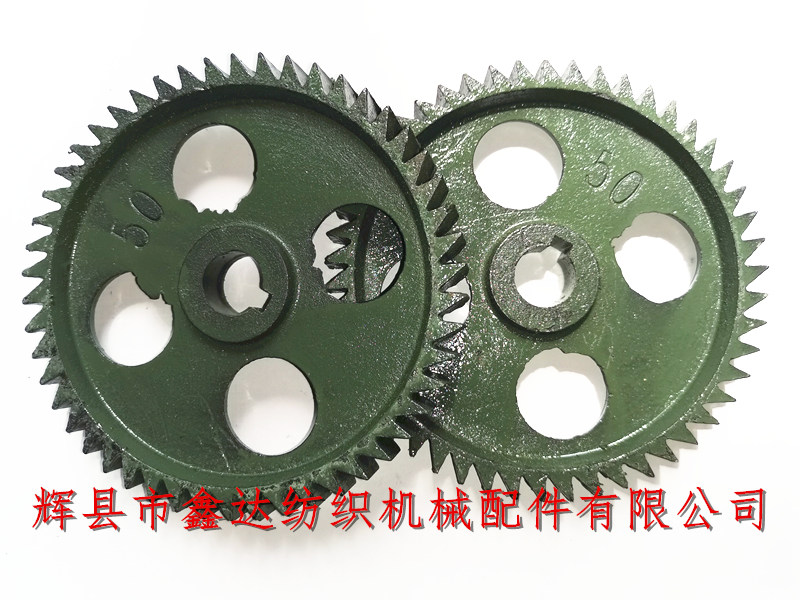

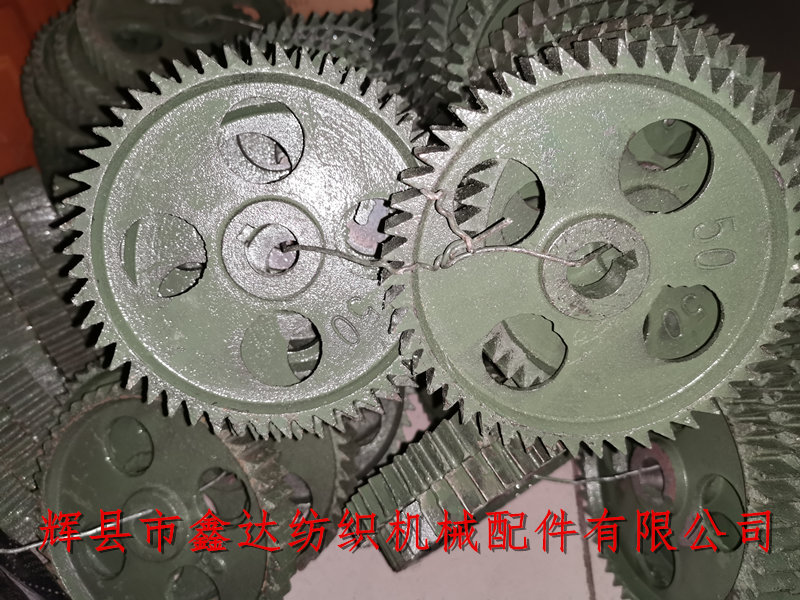

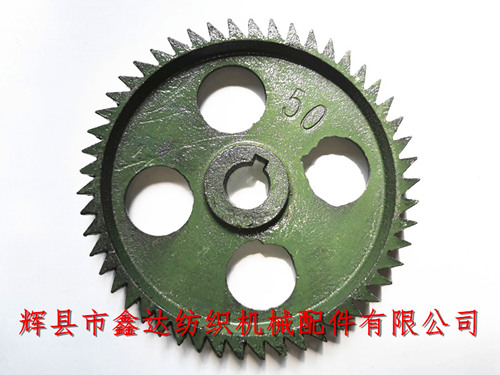

GA788 rapier loom accessories weft density change gear (weft density wheel), also known as weft density teeth, gears with different number of teeth have the same outer diameter (13.35cm), the thickness of weft density wheel is 17mm, the diameter of inner hole of 50 tooth rapier machine gear is 18mm, and the width of keyway is 6mm. Weft density change wheel is mainly used to change and control the number of weft yarns (within 2 inches) in weaving process.

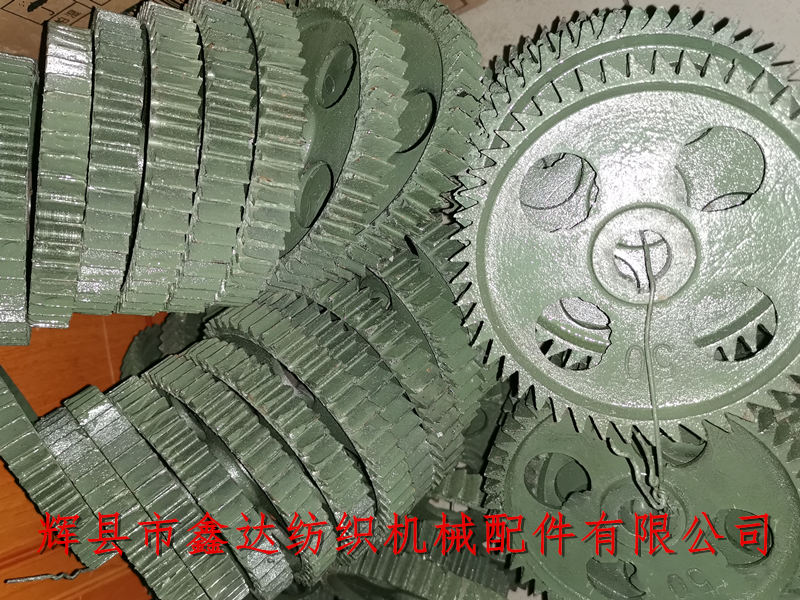

The number of teeth of helical gears ranges from 19 to 73 teeth. The gears of special refitting machines need to be discussed separately. The single weight of weft dense teeth and weft dense gears of 747 rapier loom is about 0.45kg.
The keyway depth of weft dense tooth gear of GA788 rapier machine is 3mm. Each rapier machine uses one weft density wheel to cooperate with the weaving machine's coiling support head to control the weft density of cloth surface. The calculation formula of weft density teeth (wheel) is as follows: the number of weft yarns per cm x the number of worm heads x0.85 = the number of weft dense gears (1 tooth to walk), the number of weft dense gears x2 = the number of 2 teeth to walk, and multiplied by 3 is 3 teeth per time.
Weft dense wheel, rapier loom accessories, rapier gear - Xinda Textile machinery accessories are provided. In addition, we also provide various kinds of hand loom brace, winding gear, let off gear, textile gear accessories and accessories.
