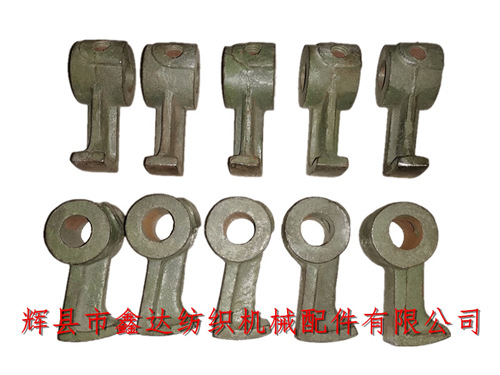

Huixian Xinda Textile Machinery Accessories Co., Ltd. has long provided B46 general accessories for loom sector arm, which can be used for shuttle looms of different models (1511, 1515, GA615, G611). The inner hole diameter of B46 sector arm is 16mm, which is installed and fixed on the stop shaft 3423 or B56. The total length of sector arm is 71mm, and the length of shaft hole is 26.5mm (thickness), One for each loom.
The sector arm B46 is left and right. The length of the impact arc surface is 3cm, the width is 16mm, and the width at the upper shaft hole is 34mm. Its single weight is about 0.2kg, and the packaging specification is 10 pieces per string.
The upper set screw hole is M10. The sector arm B46, the supporting foot B45 in the stop shaft and the supporting foot of the stop shaft (B43 / B44) are installed on the stop shaft of the loom, and the bottom of these supporting feet is fixed on the front beam P4 or 4307 of the loom.
Small textile cast iron parts and sanding parts of textile machine are important components of loom, which involve automatic stop of loom, automatic shuttle change, automatic stop of weft break, automatic stop of warp break, induction of shuttle change, let off mechanism, coiling part, shuttle throwing device, etc. If textile enterprises (weaving mills and cotton mills) need to purchase fan-shaped arm B46, loom accessories, shuttle loom general accessories and other products, please contact our company for consultation!
